GF28.00-P-0001-02AV Automatically Regulated All-Wheel Drive (4MATIC) Torque Distribution

GF28.00-P-0001-02AV Automatically regulated all-wheel drive (4MATIC) torque distribution
- Transmission 722.960/962/963/964/965 [model 204.0]
- Transmission 722.962/965 [model 204.2]
- Transmission 722.960/962/964/965 [model 204.9]

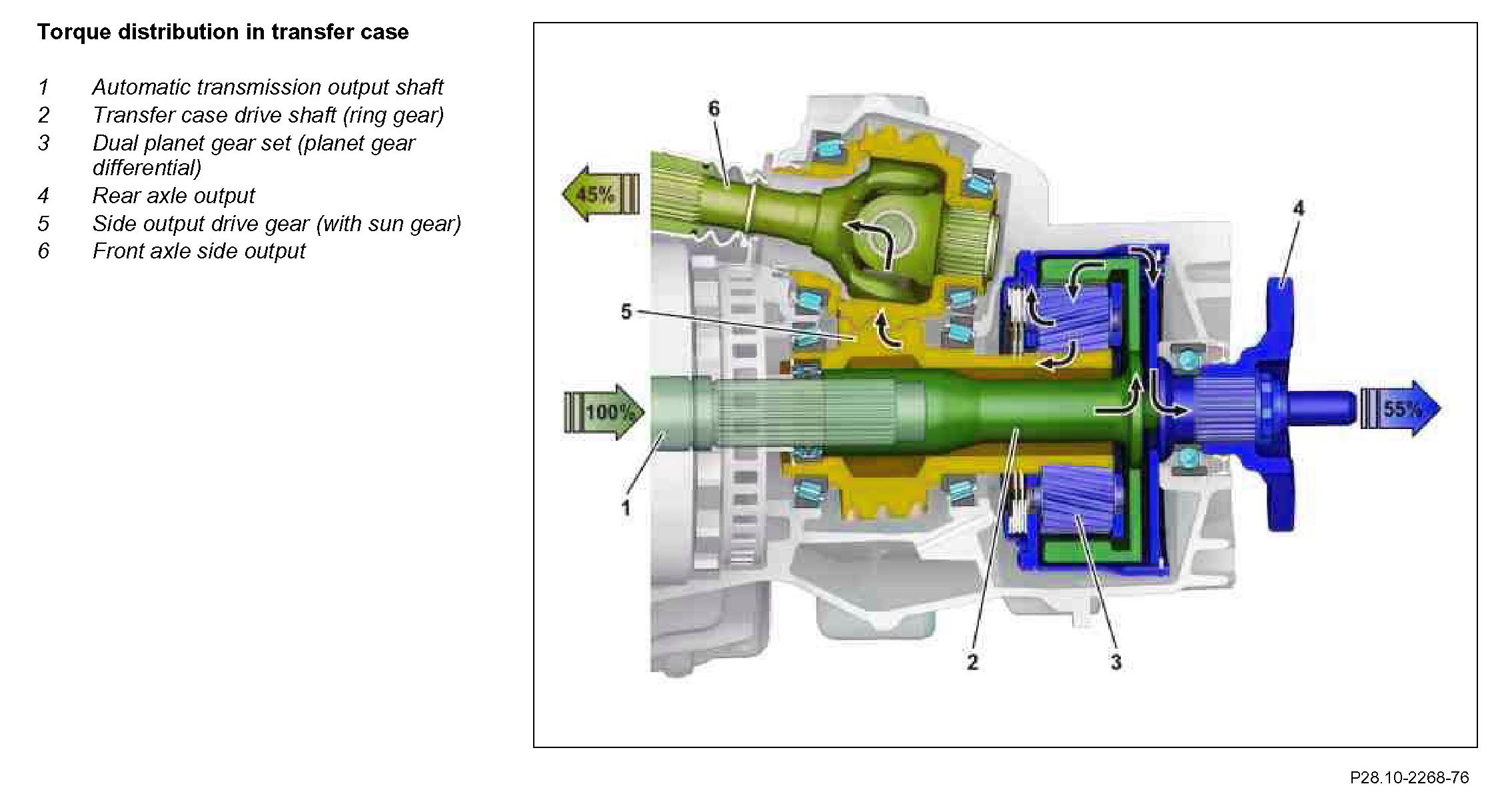

Component Identification:

The double planet gear set (3) acts as a planet gear differential between the front and rear axle via which the engine torque is distributed.

The gear ratio is designed so that 55 % of the engine torque is transmitted to the rear axle and 45 % is transmitted to the front axle.
