GF28.00-P-0001-01AV Automatically Regulated All-Wheel Drive (4MATIC), Location of Components



GF28.00-P-0001-01AV Automatically regulated all-wheel drive (4MATIC), location of components
- Transmission 722.960/962/963/964/965 [model 204.0]
- Transmission 722.962/965 [model 204.2]
- Transmission 722.960/962/964/965 [model 204.9]

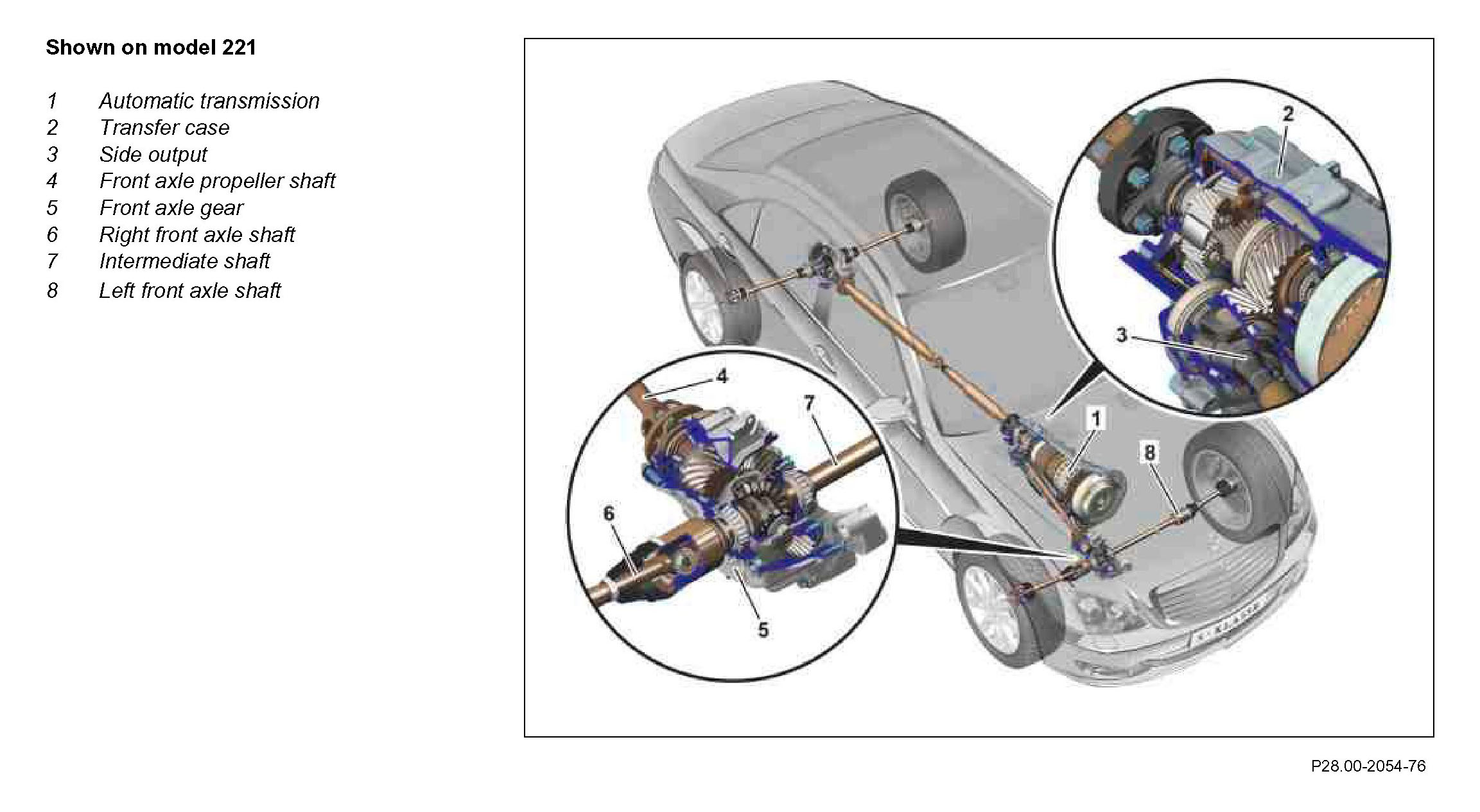

Component Identification:

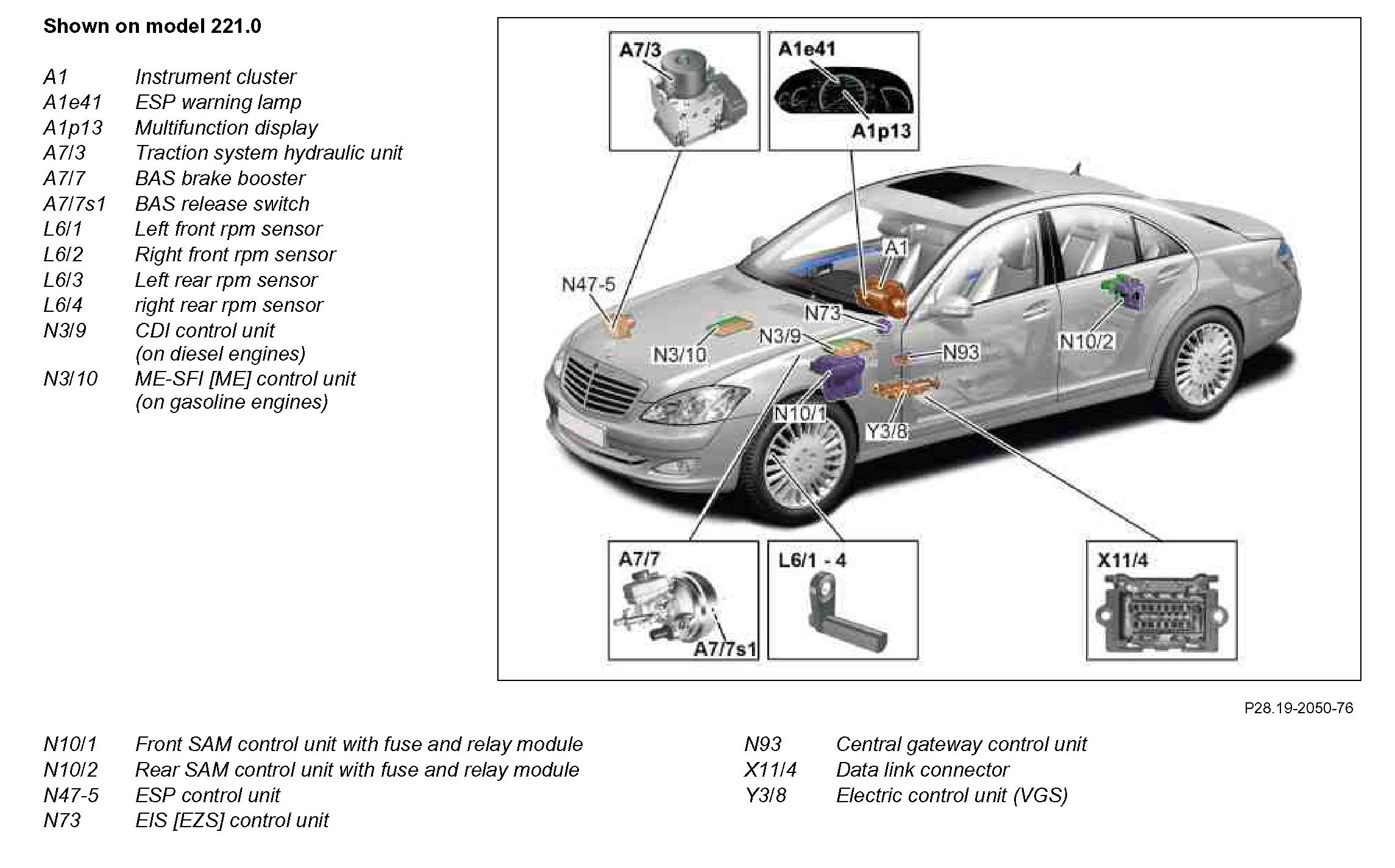

Component Identification:

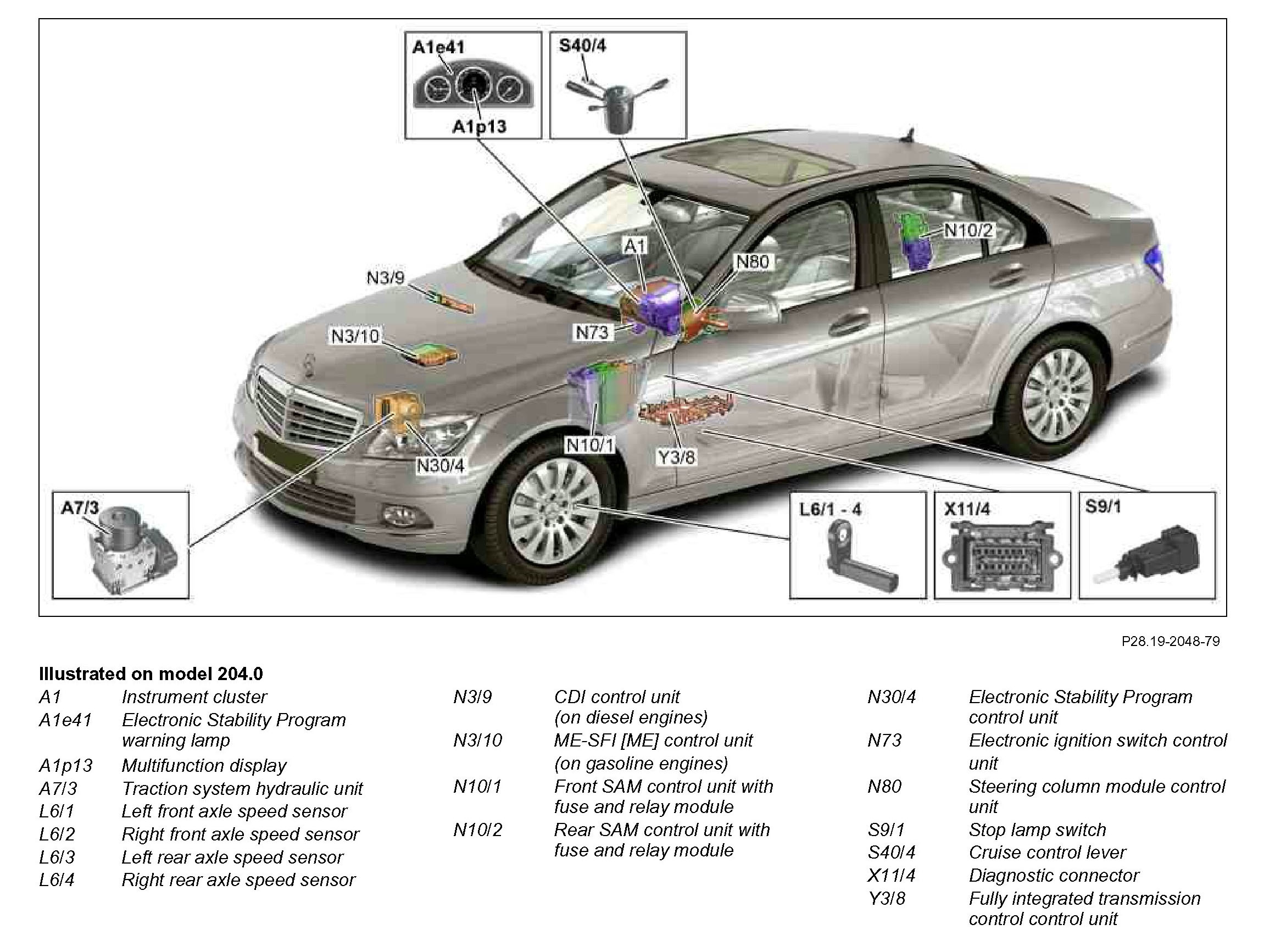

Component Identification:

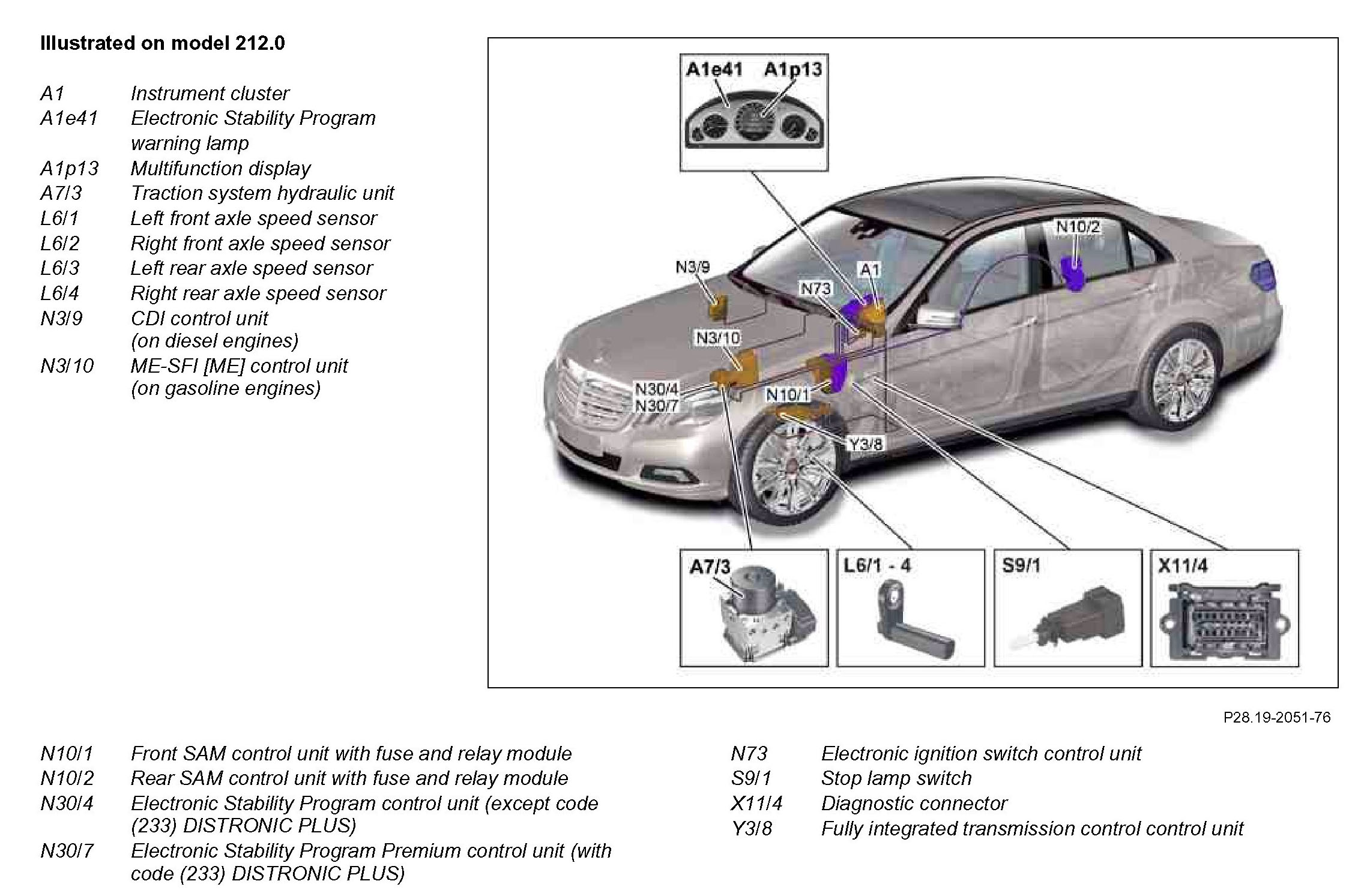

Component Identification:

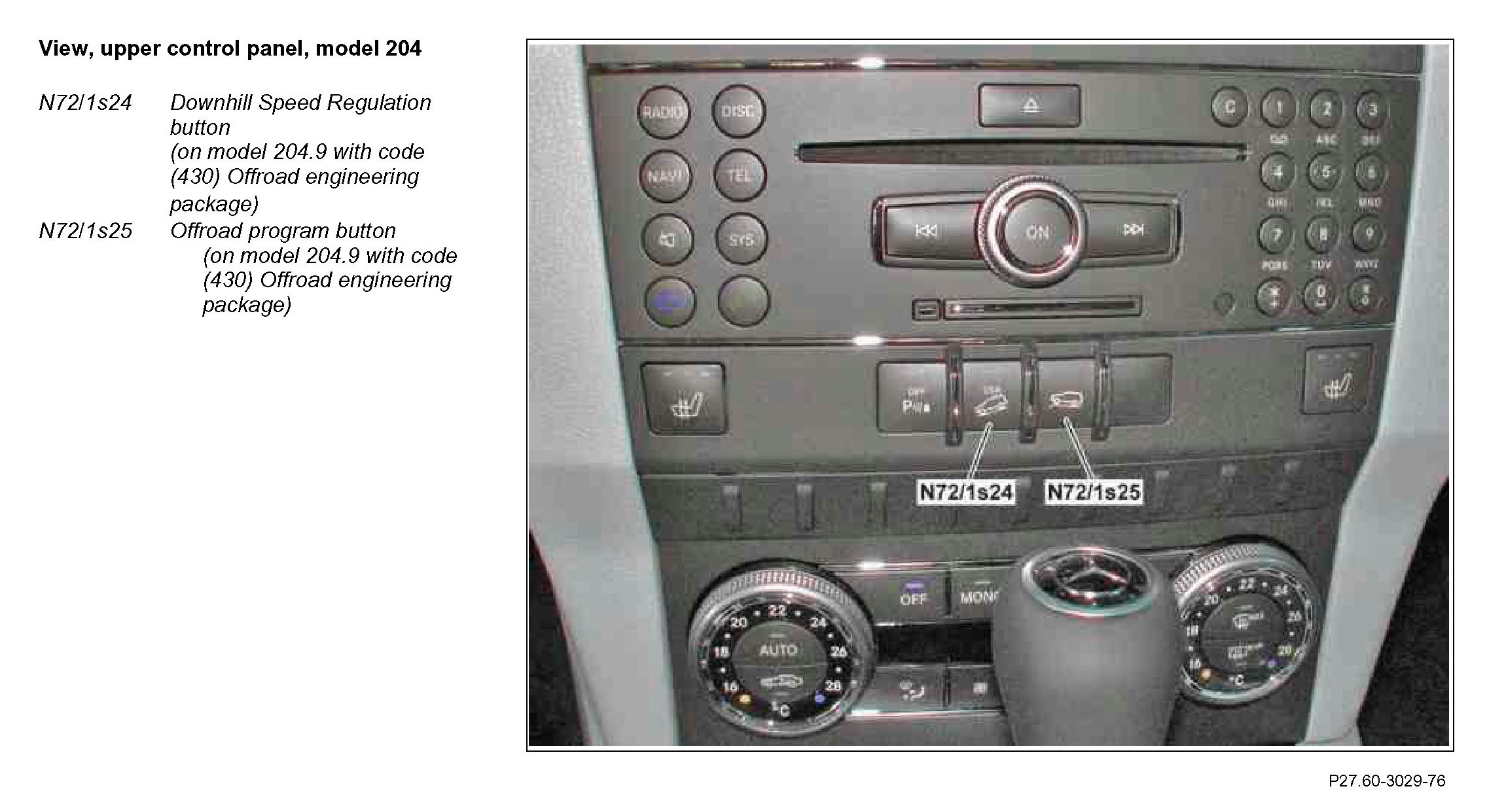

Component Identification:
