AR26.60-P-6520EW Remove/Install Shift Shaft Radial Shaft Sealing Ring



AR26.60-P-6520EW Remove/install shift shaft radial shaft sealing ring
- Transmission 711.670, 716.6

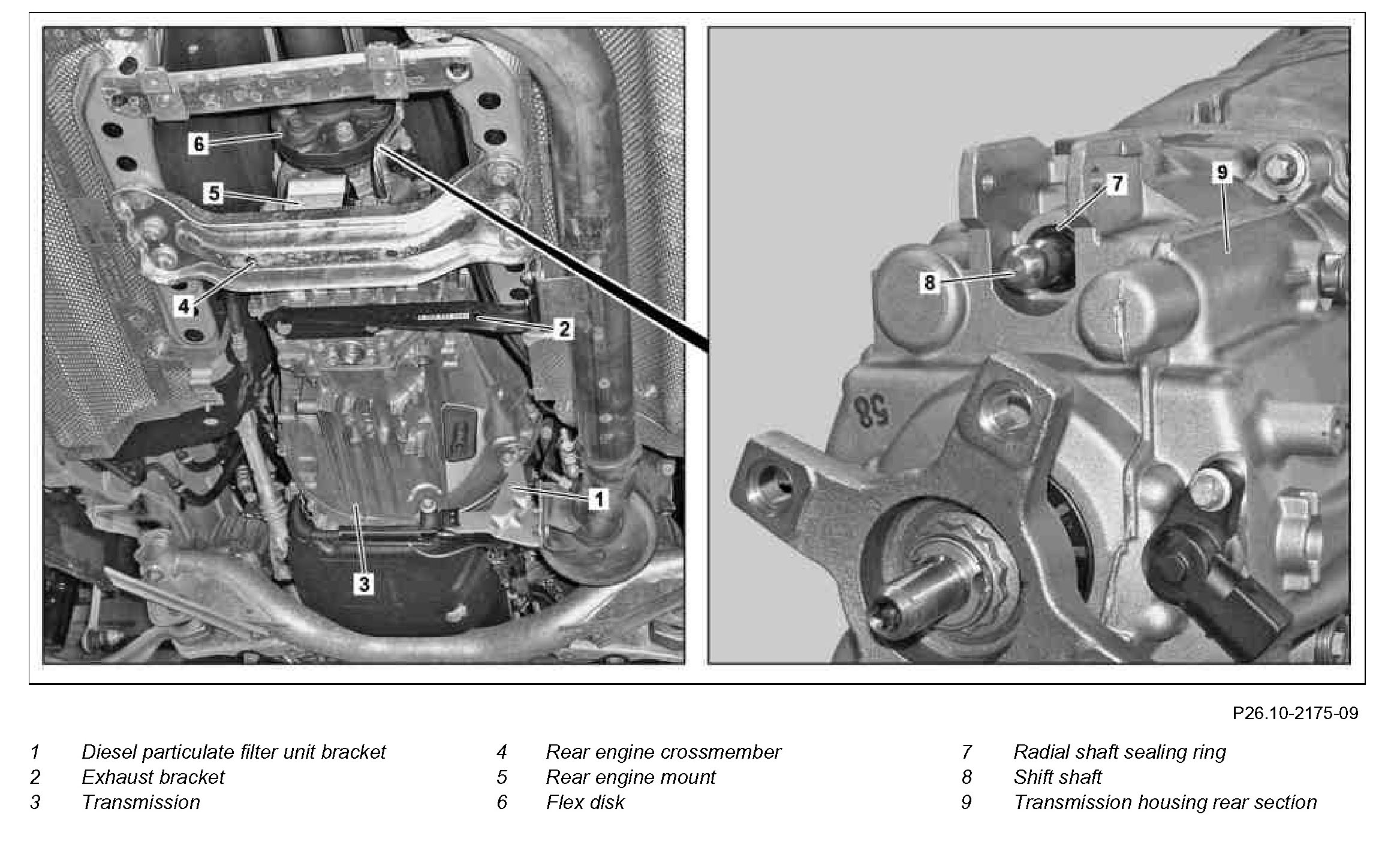

Component Identification:




Steps 1-12:




Propeller shaft:

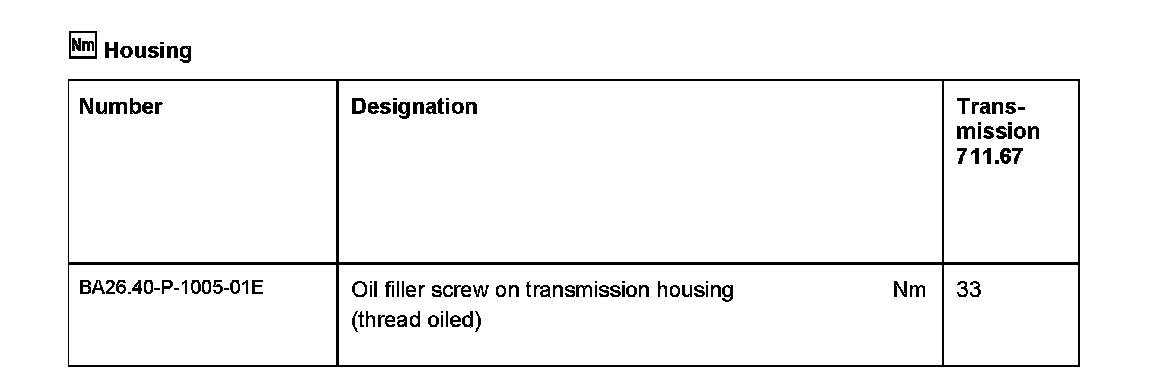

Housing:

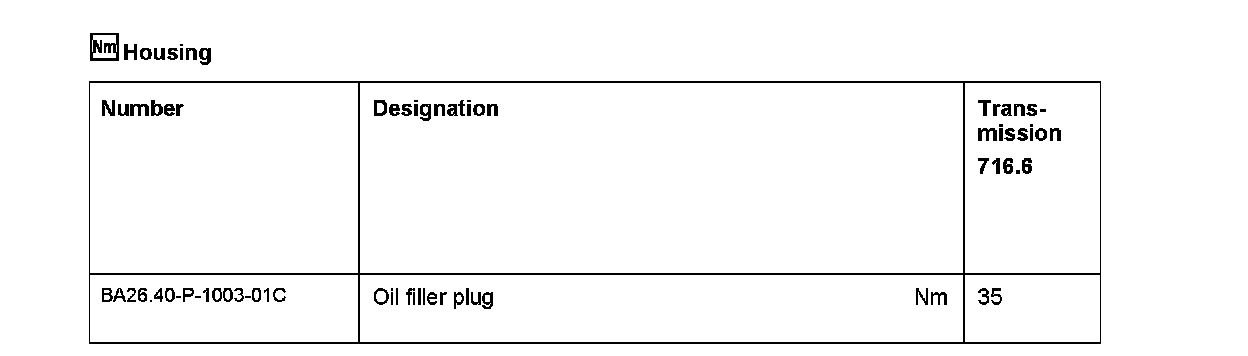

Housing:

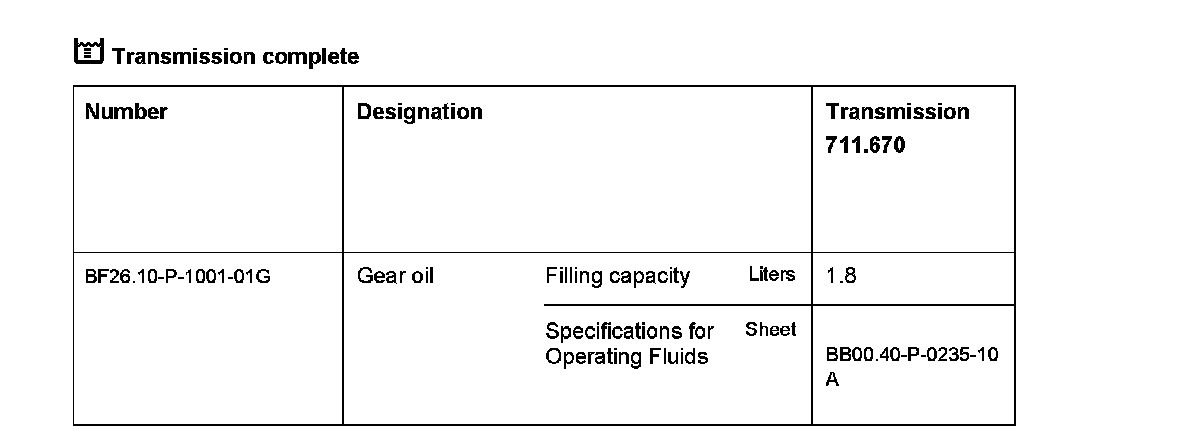

Transmission complete:

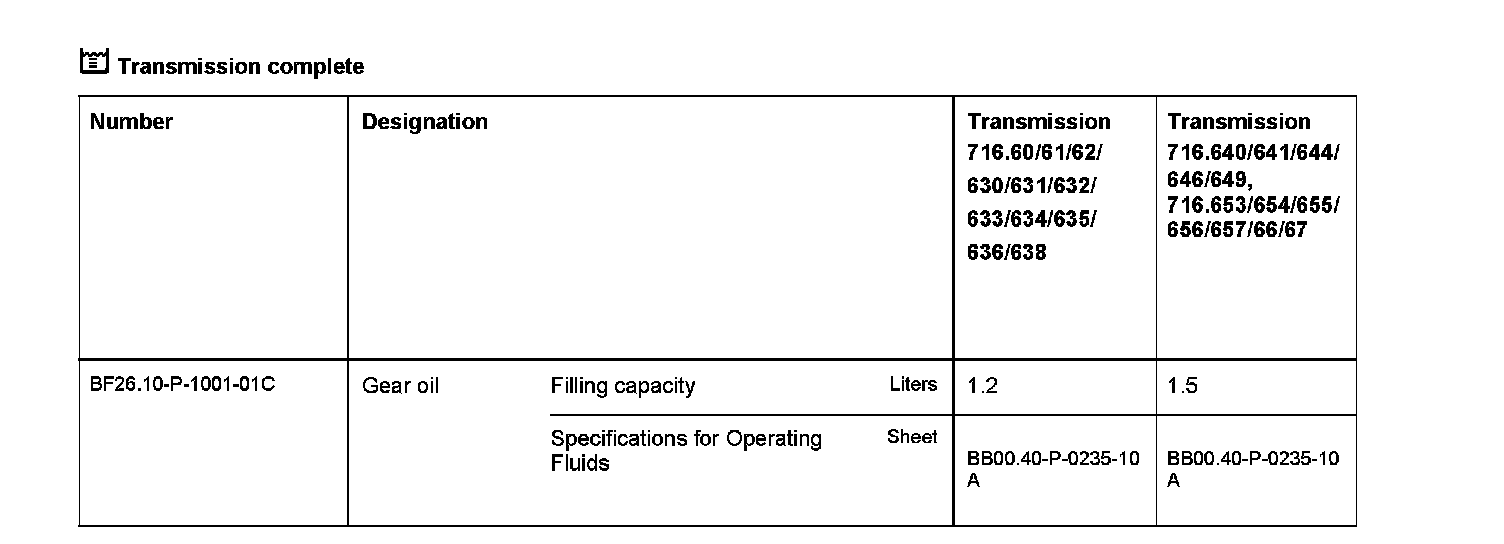

Transmission complete:

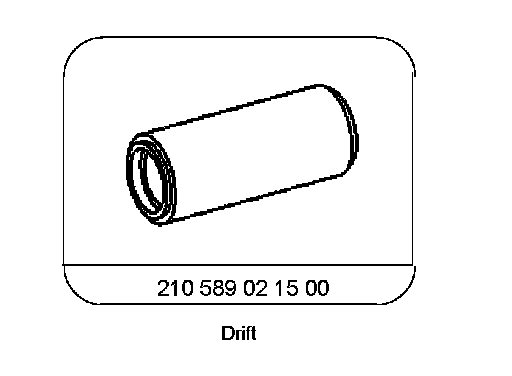

Special Tools:

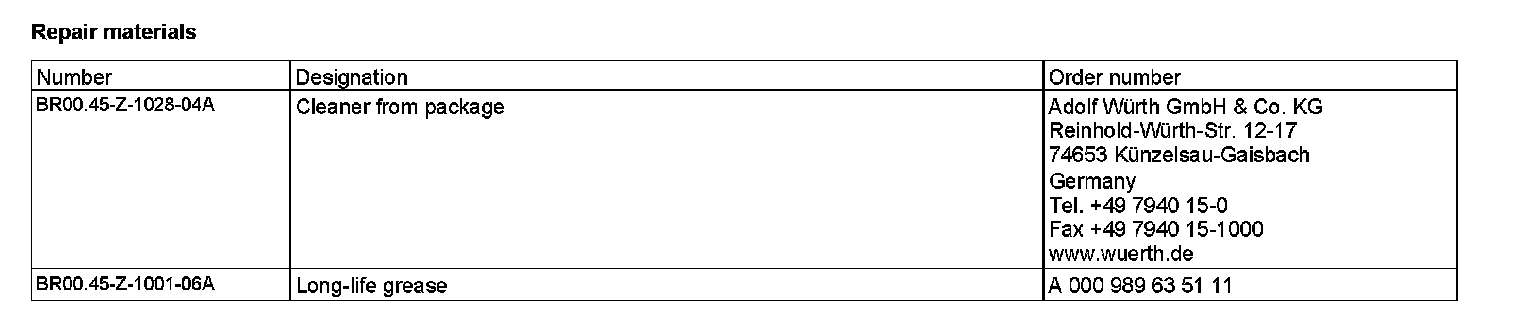

Repair materials:
