Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Shifter M/T >> Service and Repair >> Removal and Replacement >> AR26.60-P-0600EW Remove/Install Floor Selector

AR26.60-P-0600EW Remove/Install Floor Selector



AR26.60-P-0600EW Remove/install floor selector
- Transmission 711.670, 716.6

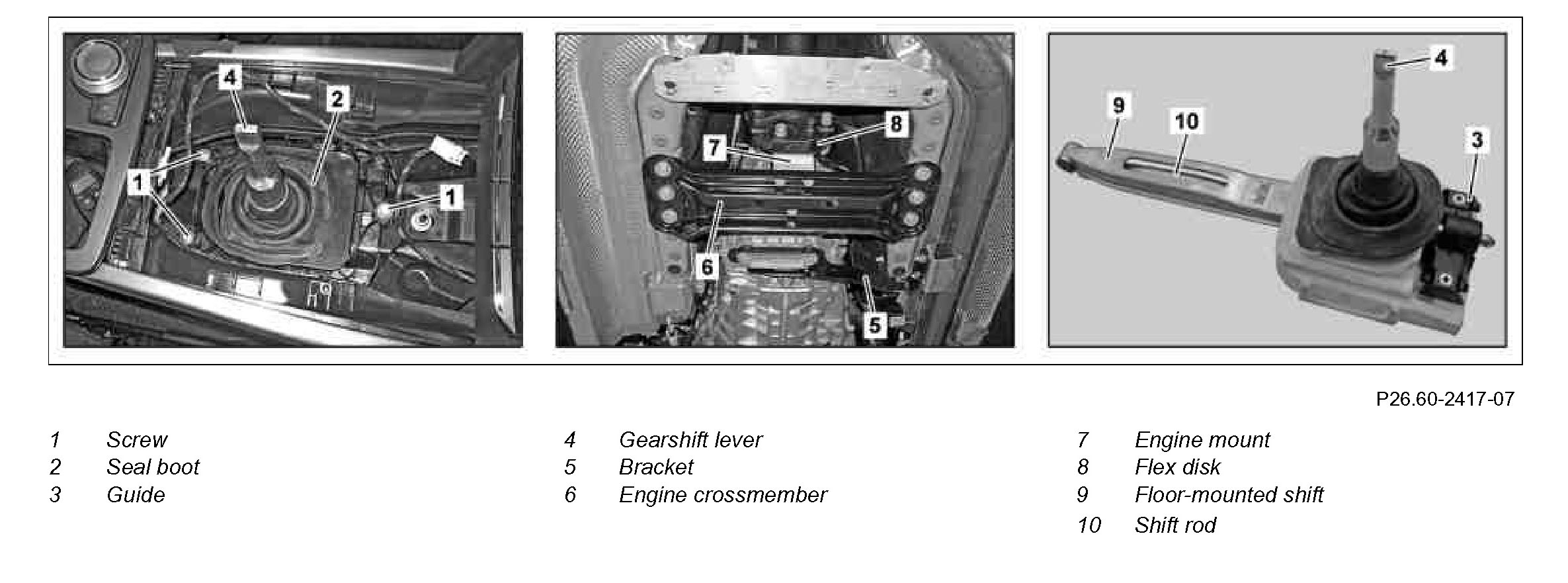

Component Identification:

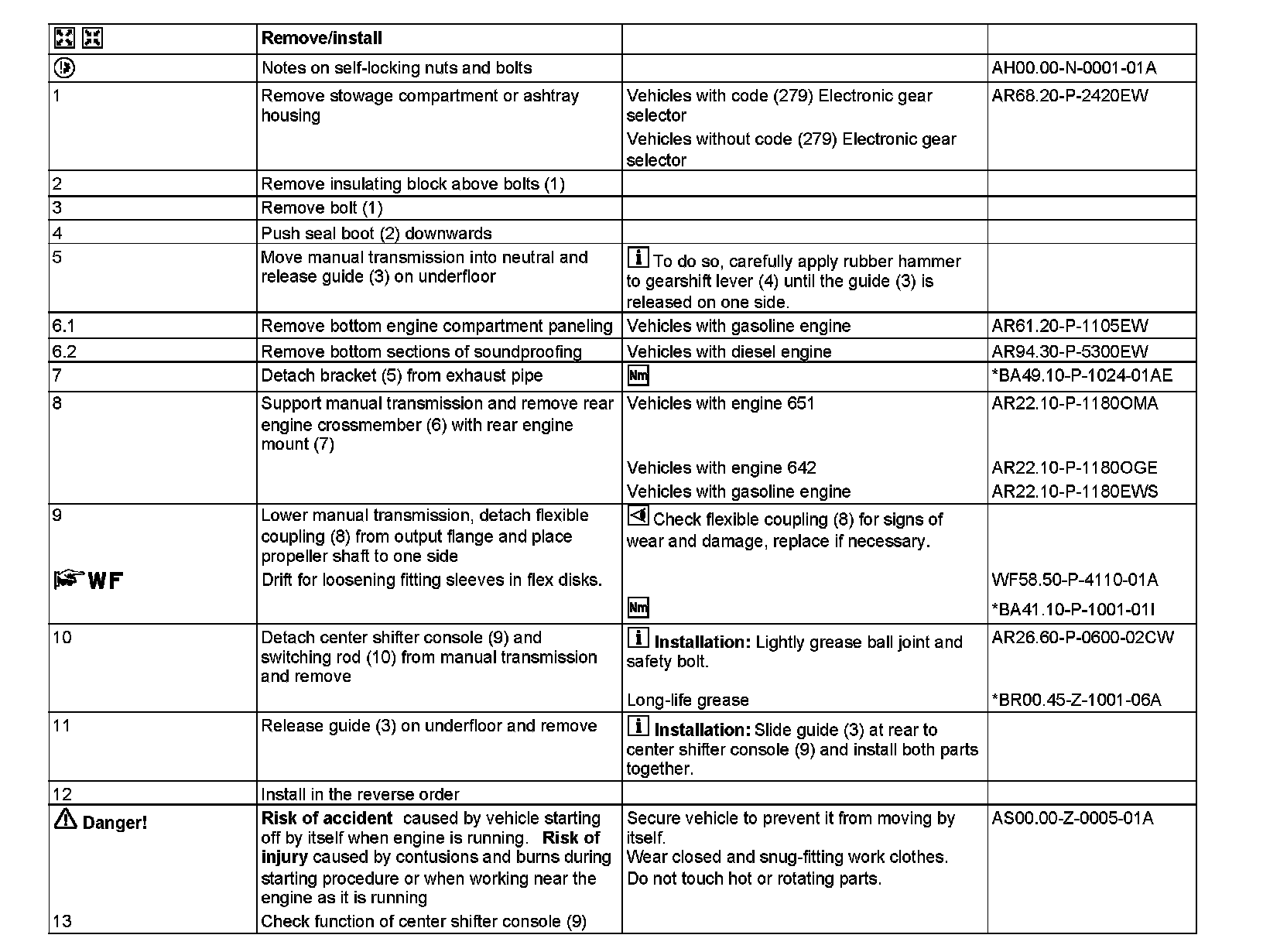

Steps 1-13:

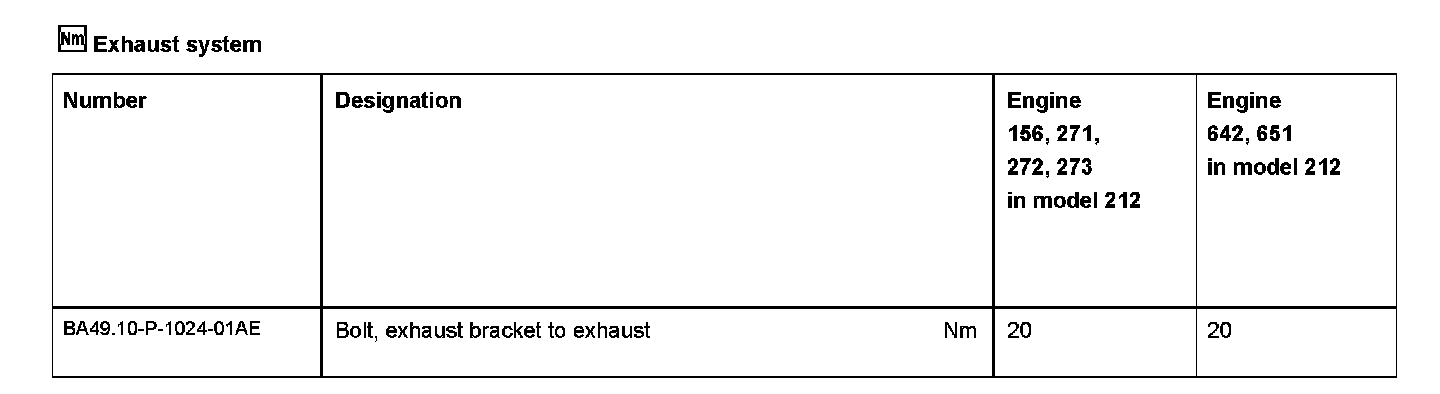

Exhaust system:

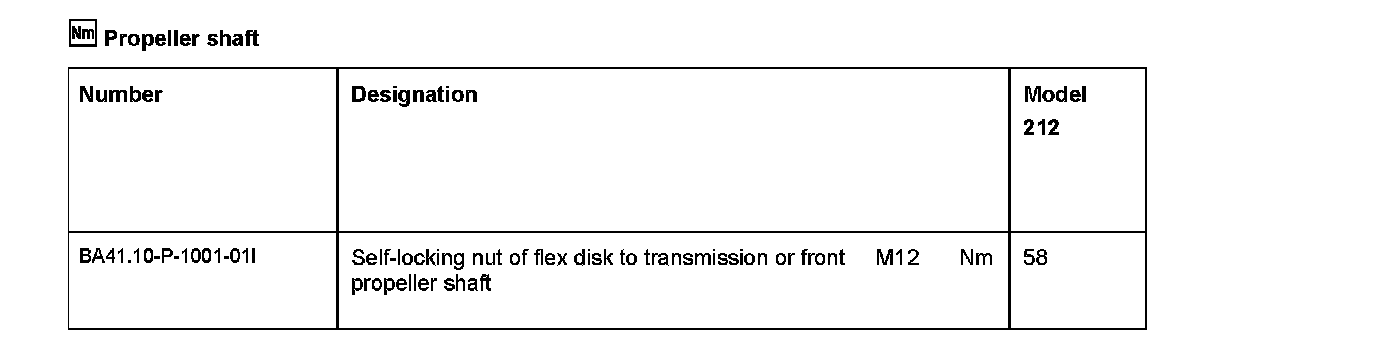

Propeller shaft:

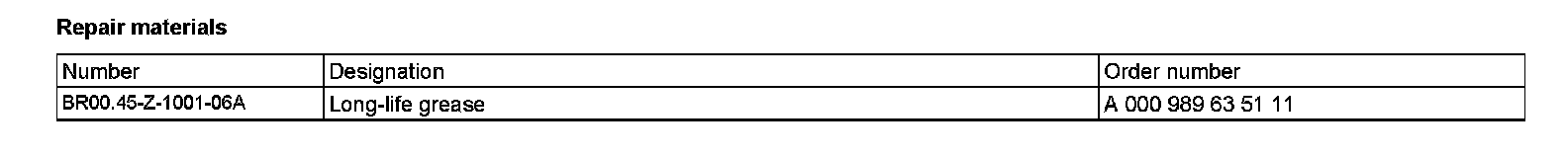

Repair materials:
