Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Service and Repair >> Overhaul >> AR26.50-P-4775CW Disassemble, Assemble Countershaft

AR26.50-P-4775CW Disassemble, Assemble Countershaft



AR26.50-P-4775CW Disassemble, assemble countershaft
- with TRANSMISSION 716.6

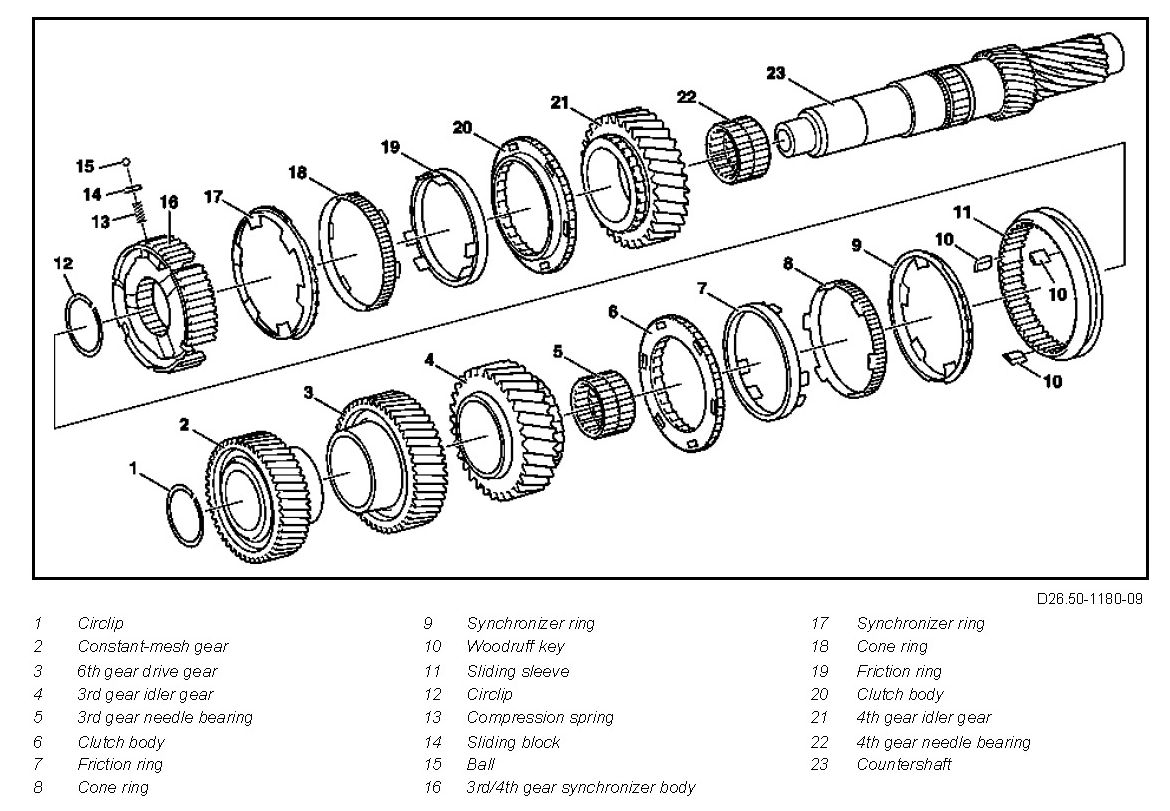

Component Identification:

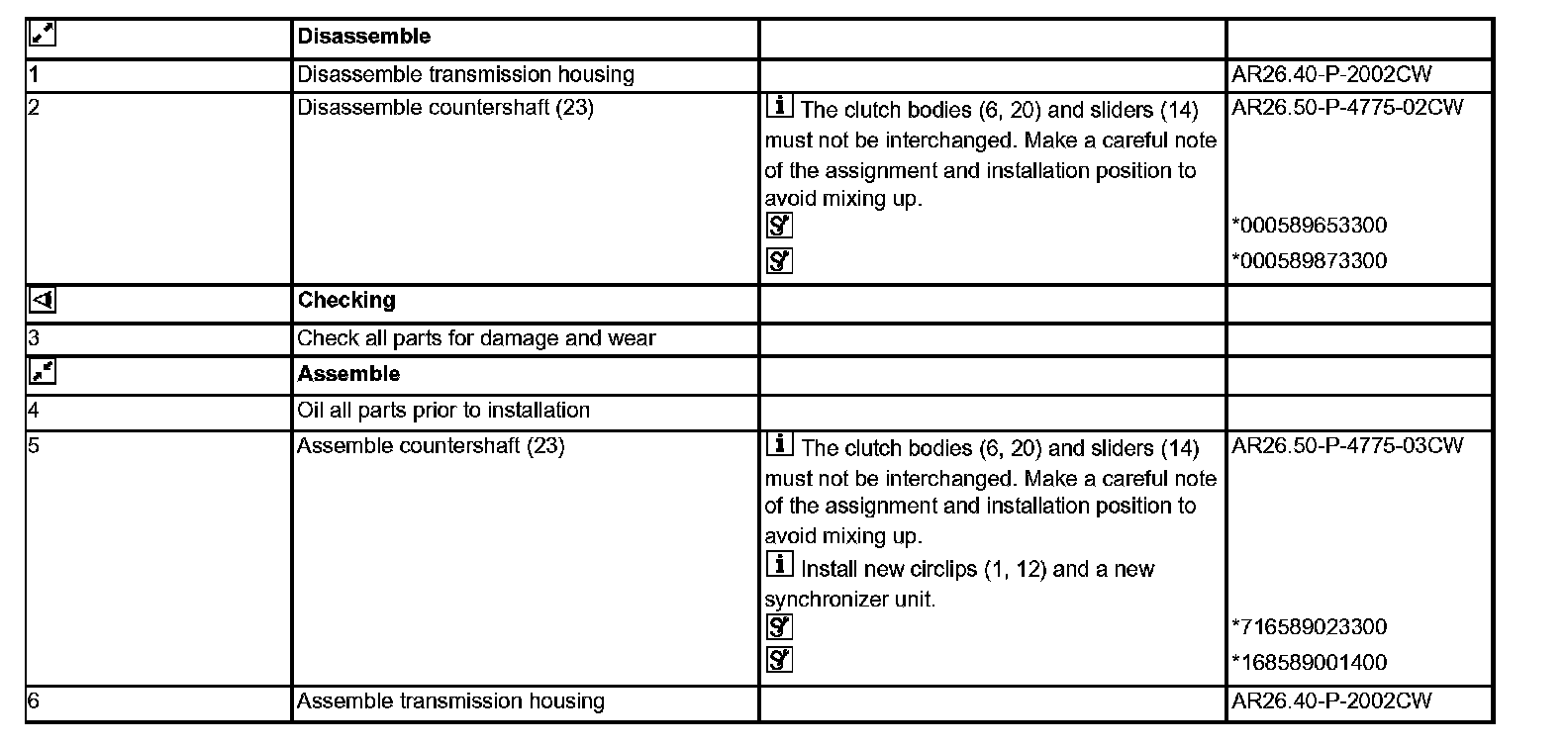

Steps 1-6:

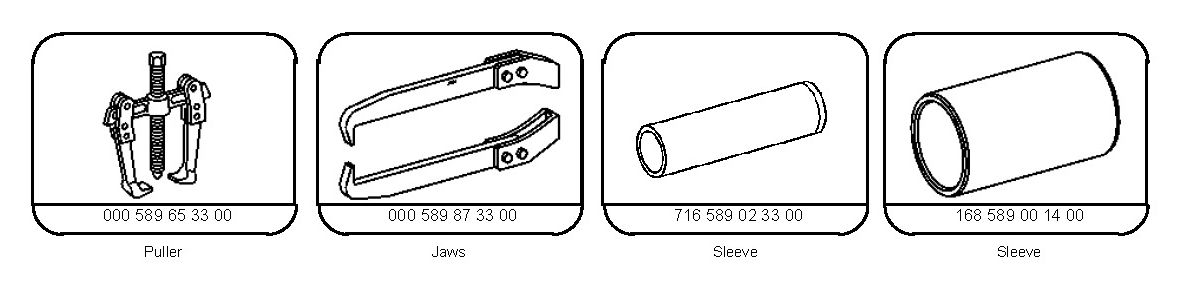

Special Tools:
