AR26.40-P-2476CW Disassemble/Assemble Rear Section of Transmission Housing



AR26.40-P-2476CW Disassemble/assemble rear section of transmission housing
- with TRANSMISSION 716.6

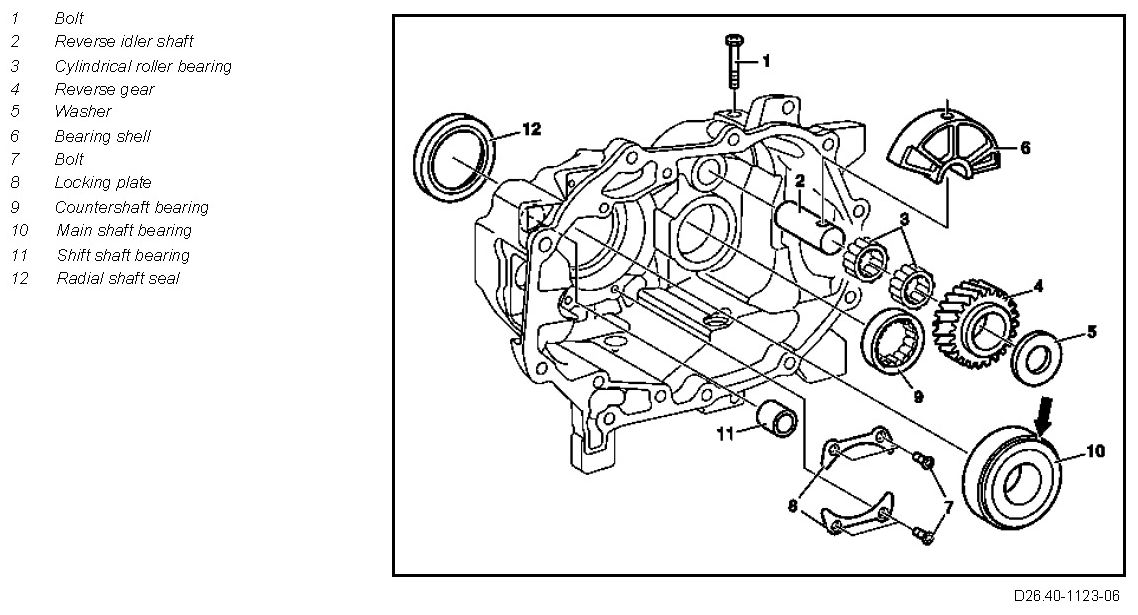

Component Identification:

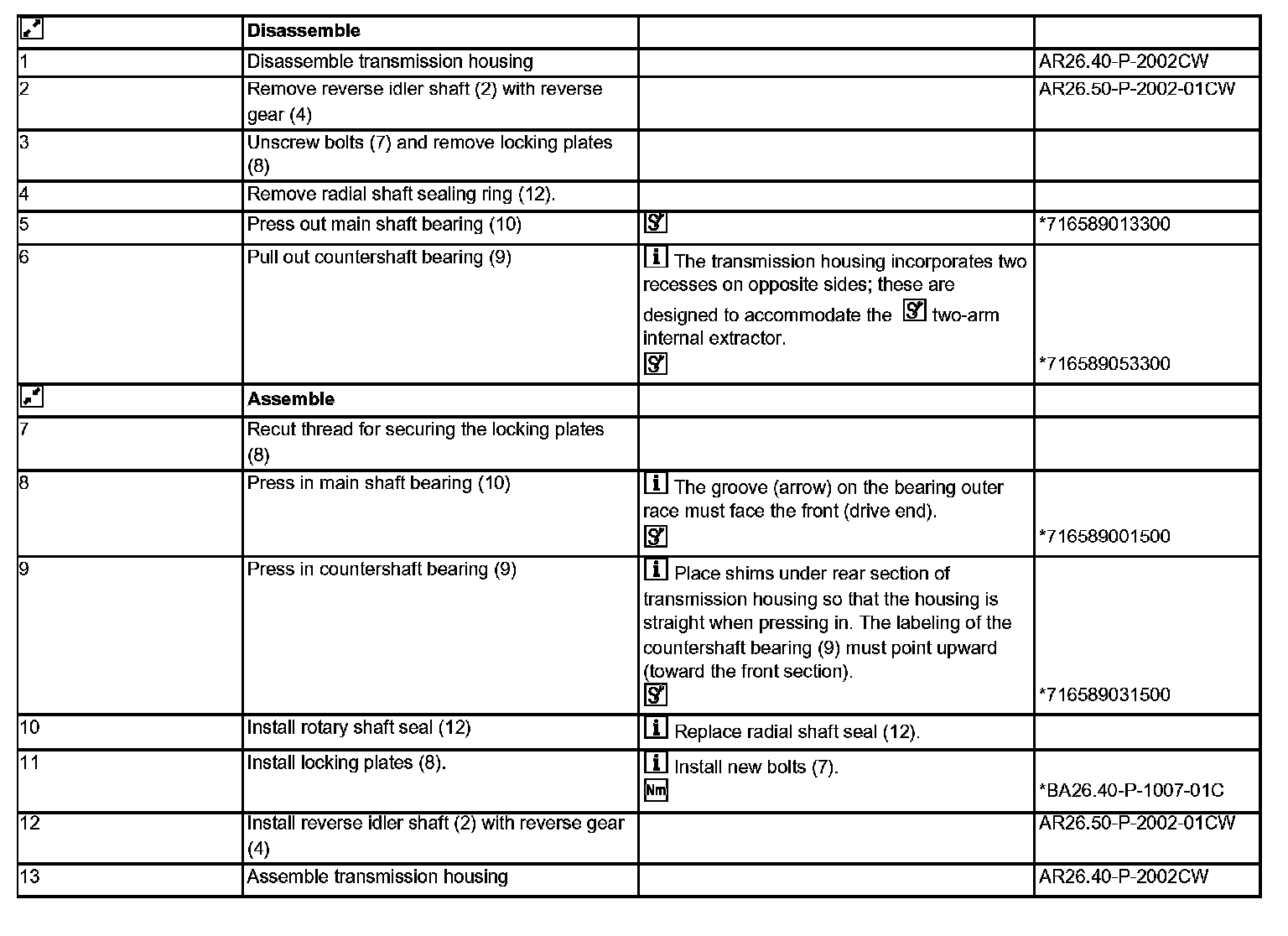

Steps 1-13:

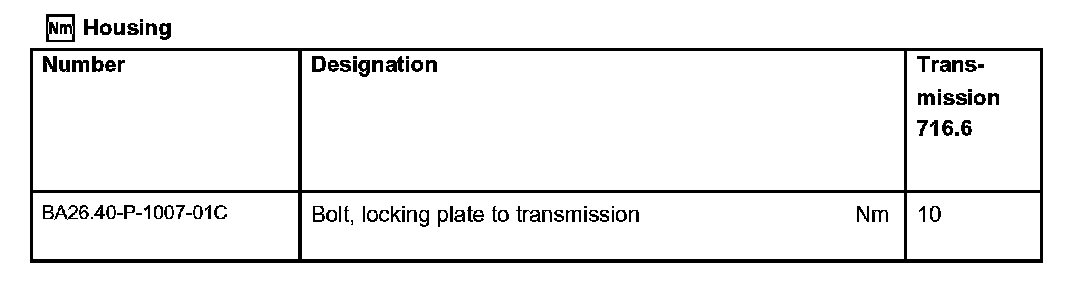

Housing:

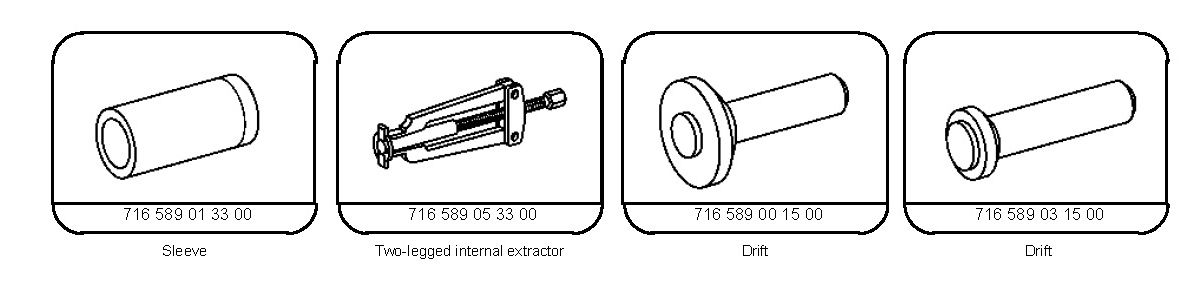

Special Tools:
