Seals and Gaskets: Service and Repair
AR26.40-P-0335EW Remove/install drive shaft radial shaft sealing ring
- Transmission 711.6, 716.6

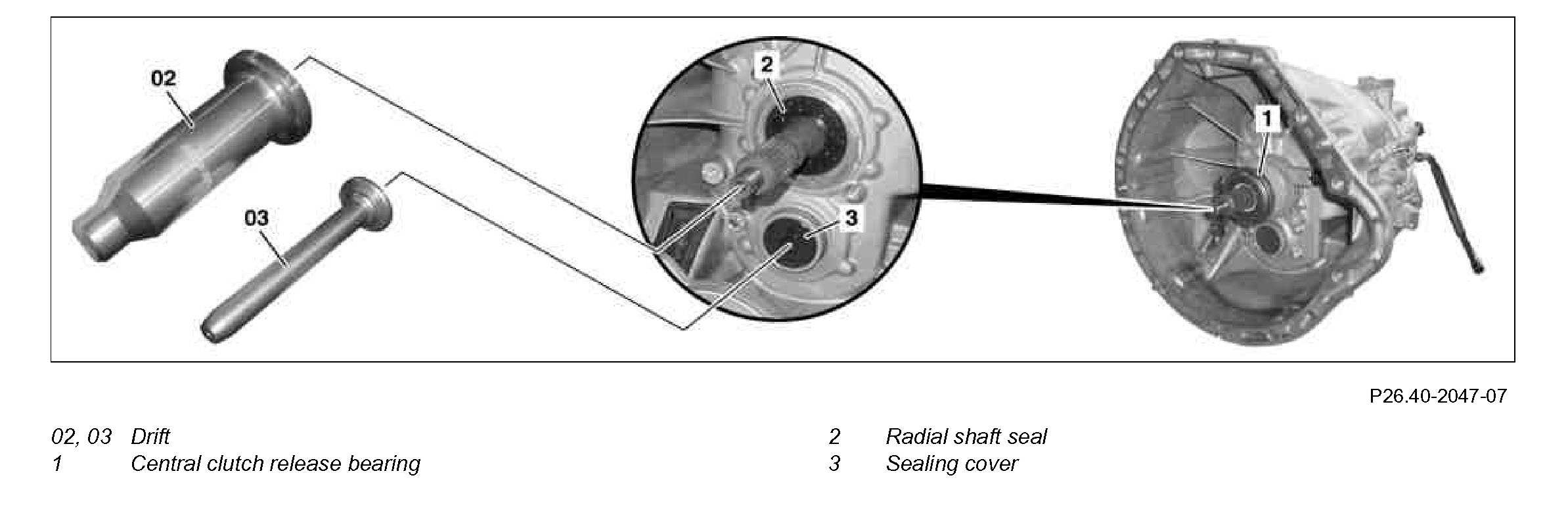

Component Identification:

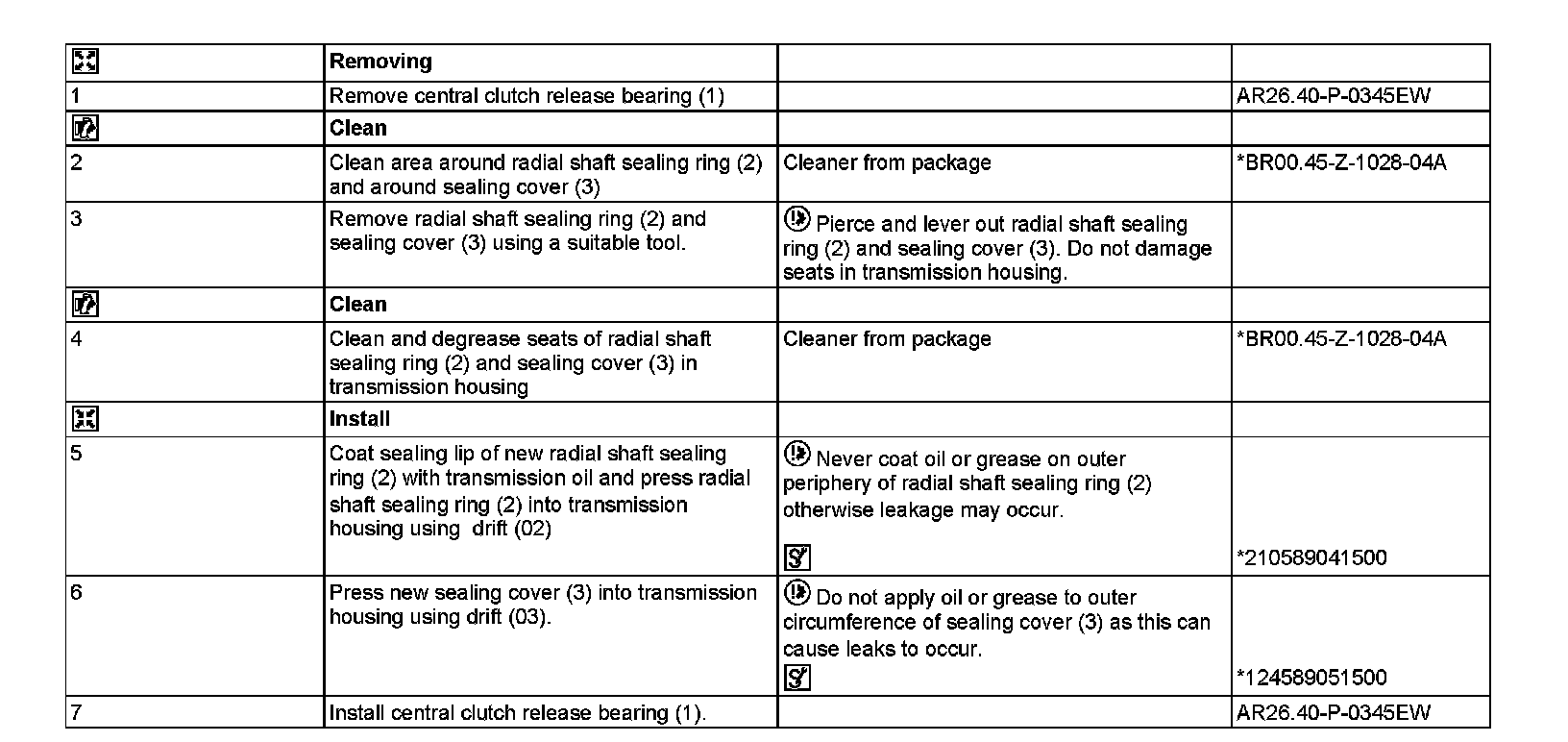

Steps 1-7:

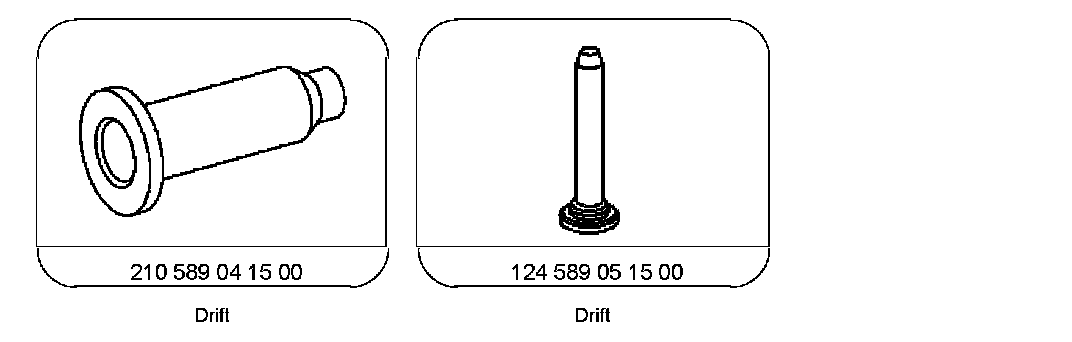

Special Tools:
Repair materials:
