GF26.10-P-0002-06FL Manual Transmission (MG), Location of Electrical/Electronic Components

GF26.10-P-0002-06FL Manual Transmission (MG), Location of Electrical/Electronic Components
- TRANSMISSION 711.653 in MODEL 204, 207, 212.0/2
- TRANSMISSION 711.654 in MODEL 204.0/2, 212.0/2
- TRANSMISSION 711.655 in MODEL 204.0, 207, 212.0/2
- TRANSMISSION 711.656 in MODEL 204.0/2
- TRANSMISSION 716.607 in MODEL 204.0

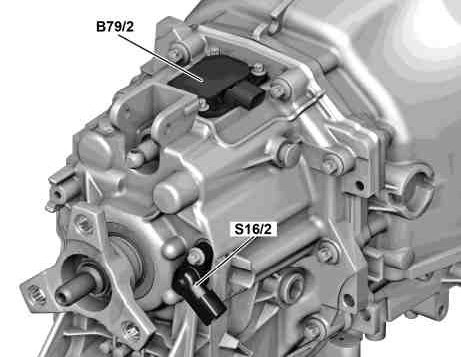

View of rear 711.65 from rear, with code (B03) ECO start/stop function

B79/2 Transmission neutral position sensor
S16/2 Backup lamp switch
