Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Fill Plug >> Locations >> AR26.60-D-0009A Transmission Fill Plug

AR26.60-D-0009A Transmission Fill Plug



AR26.60-D-0009A Check and correct hydraulic oil level
- with TRANSMISSION 716.6 [MODEL 203,209.3/4]
- with TRANSMISSION 716.6 with CODE (424) Sequentronic automated manual transmission (SEQ) [MODEL 211.0]

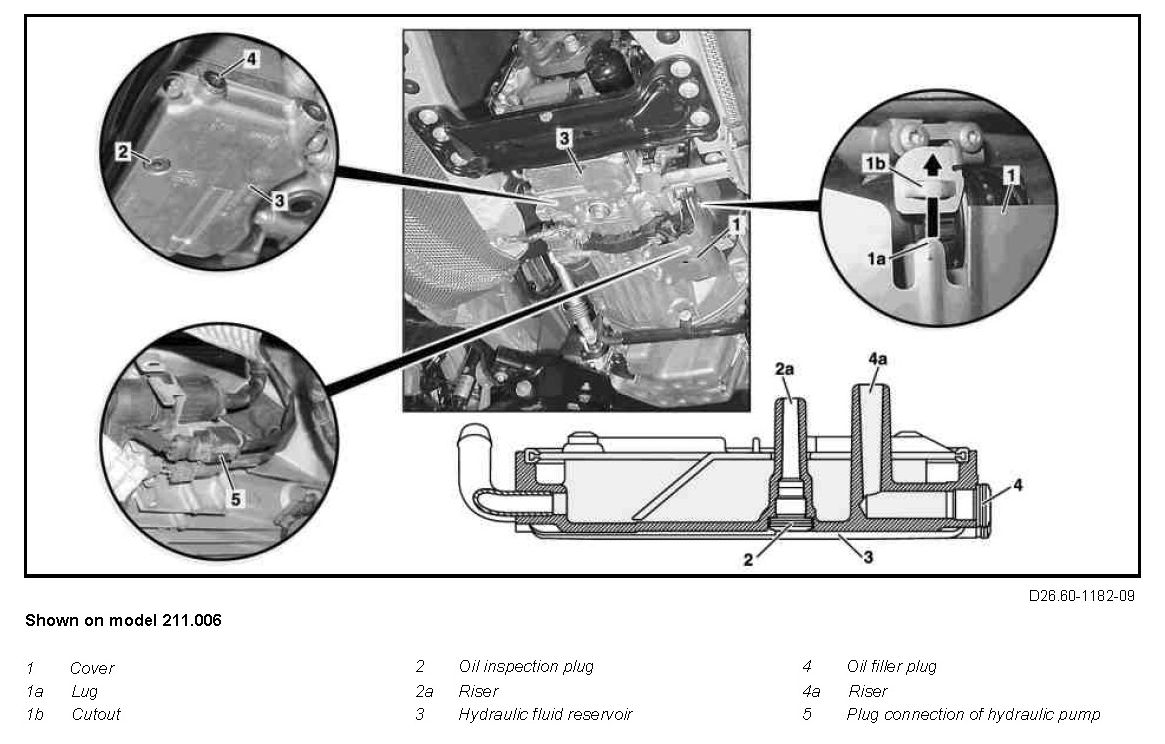

Component Identification:
