Component Tests and General Diagnostics

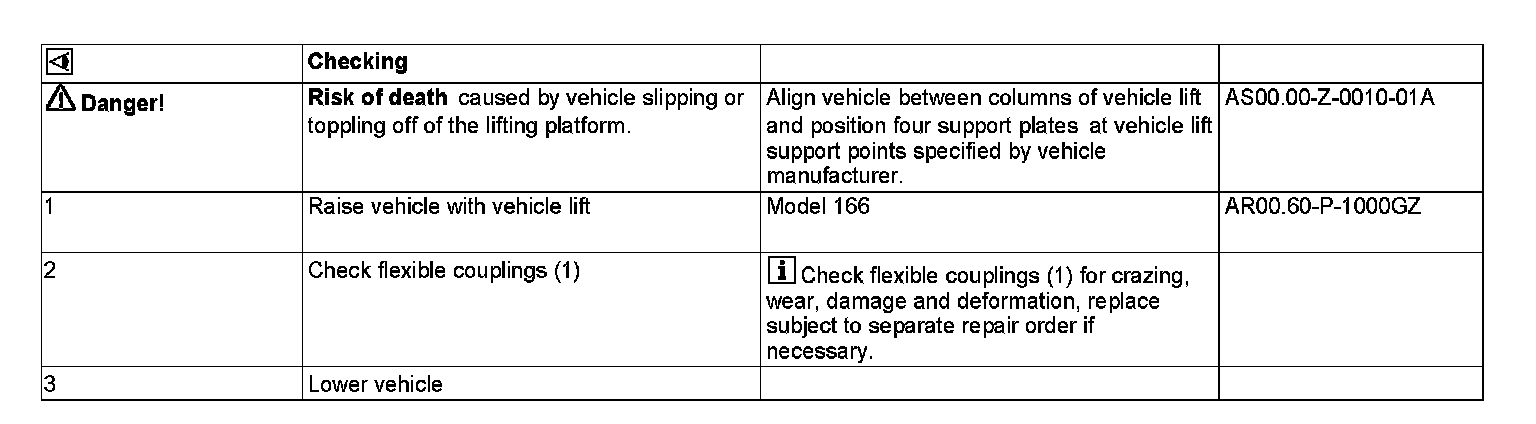

AP41.10-P-4152EW Check Propeller Shaft Flex Disks For Signs of Damage and Deformation
MODEL 166, 207, 212, 218, 231

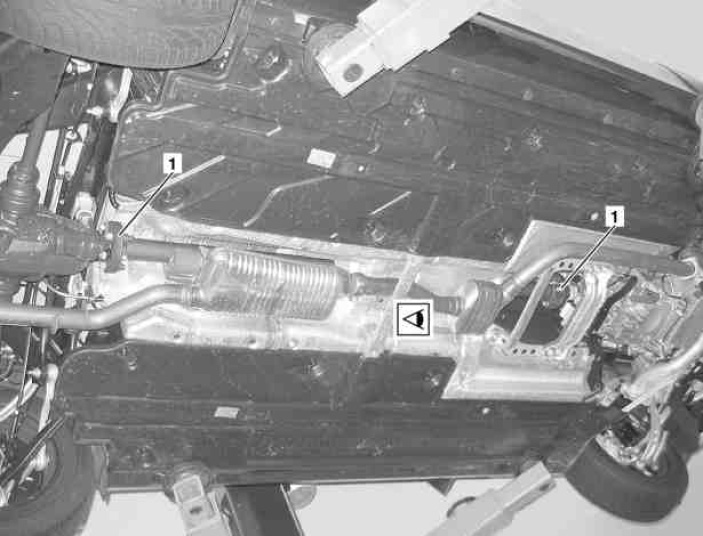

Shows model 212

1 Flex disk
