AR41.10-P-0086CW Measure Propeller Shaft Alignment With Electronic Propeller Shaft Inclinometer

AR41.10-P-0086CW Measure Propeller Shaft Alignment With Electronic Propeller Shaft Inclinometer
MODEL 172, 204, 207, 212, 218

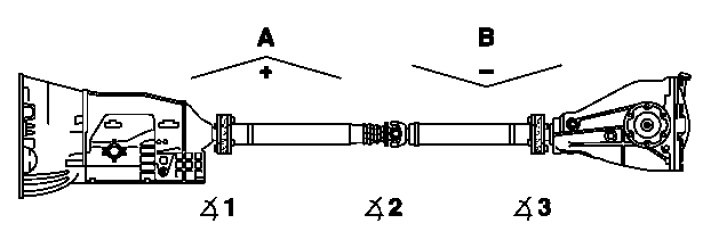

A Positive inclination angle upwards "+"
B Negative inclination angle downwards "-"

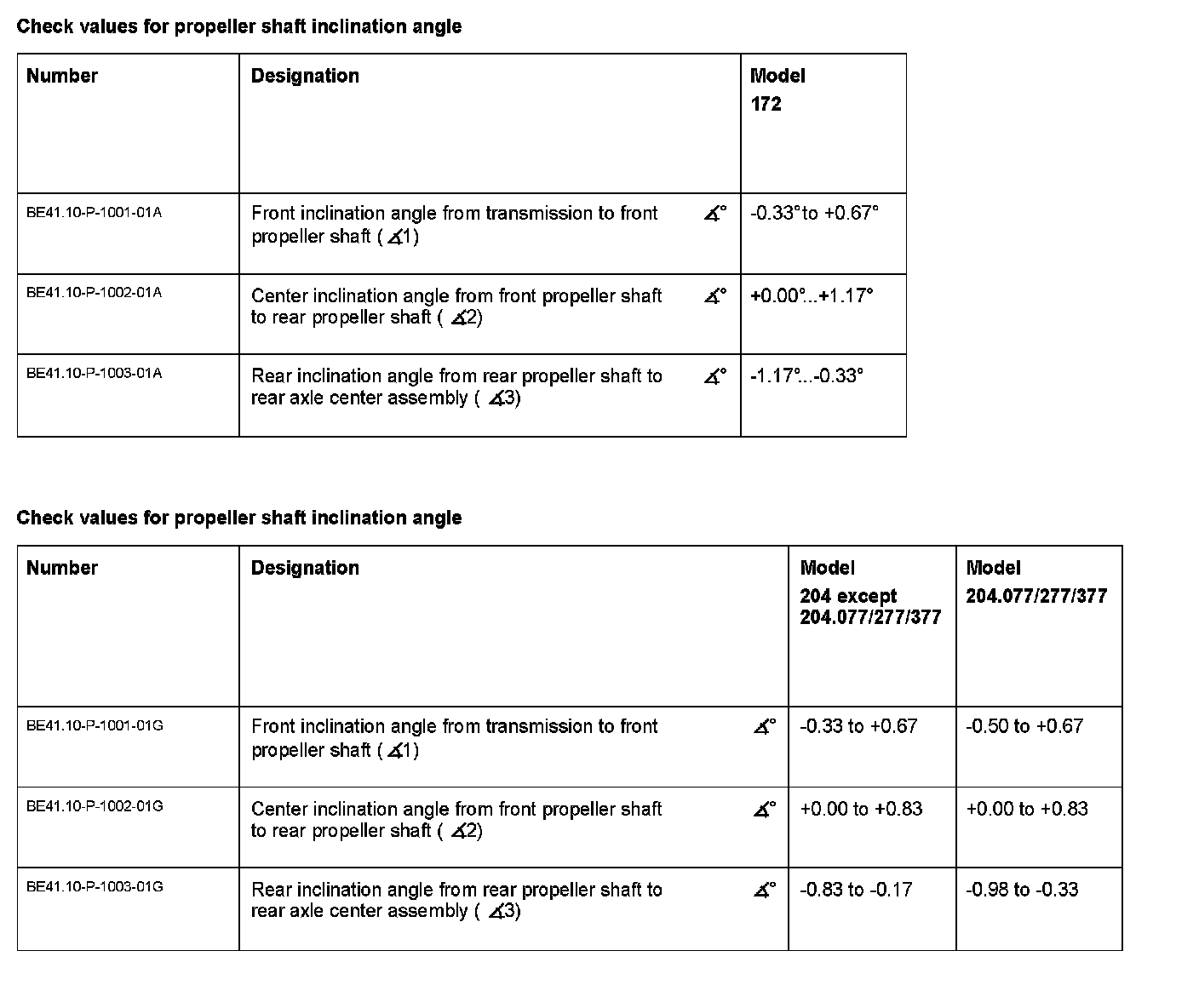

angle 1 Front inclination angle (from transmission to front propeller shaft)
angle 2 Center inclination angle (from front to rear propeller shaft)
angle 3 Rear inclination angle (from rear propeller shaft to rear axle differential)
