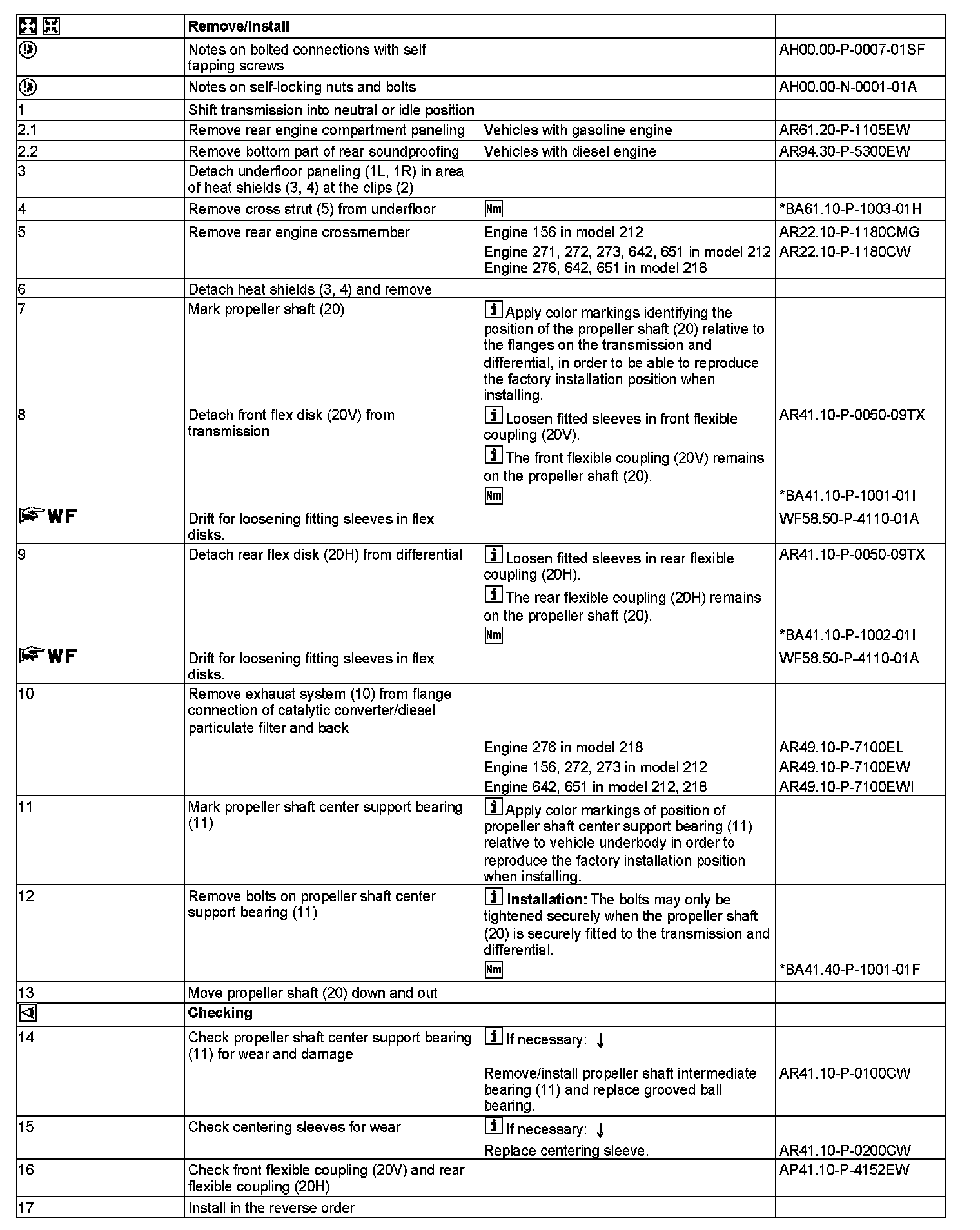

AR41.10-P-0050EW Remove/Install Propeller Shaft

AR41.10-P-0050EW Remove/Install Propeller Shaft

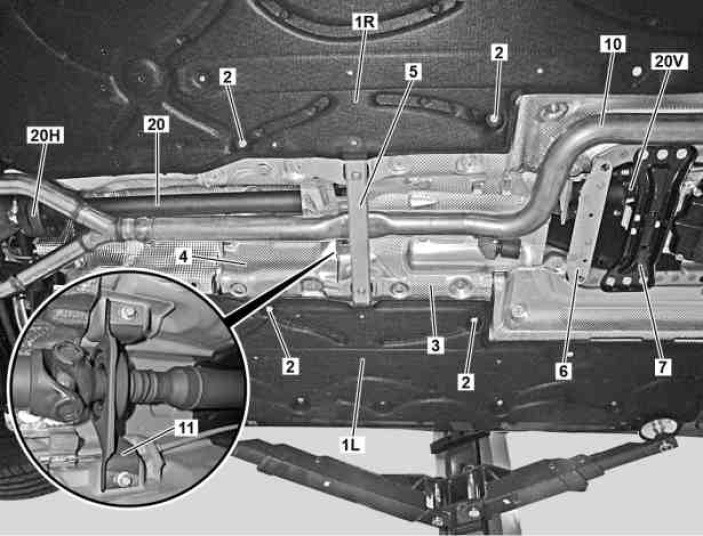

MODEL 212, 218





1L Underfloor paneling (left)
1R Underfloor paneling (right)
2 Clip
3 Heat shield
4 Heat shield
5 Cross strut
6 Front exhaust bracket
7 Rear engine crossmember
10 Exhaust system
11 Propeller shaft center support bearing
20 Propeller shaft
20H Rear flex disk
20V Front flex disk
