AR41.10-P-0100-07TX Pulling Off Rubber Mount With Grooved Ball Bearing

AR41.10-P-0100-07TX Pulling off rubber mount with grooved ball bearing

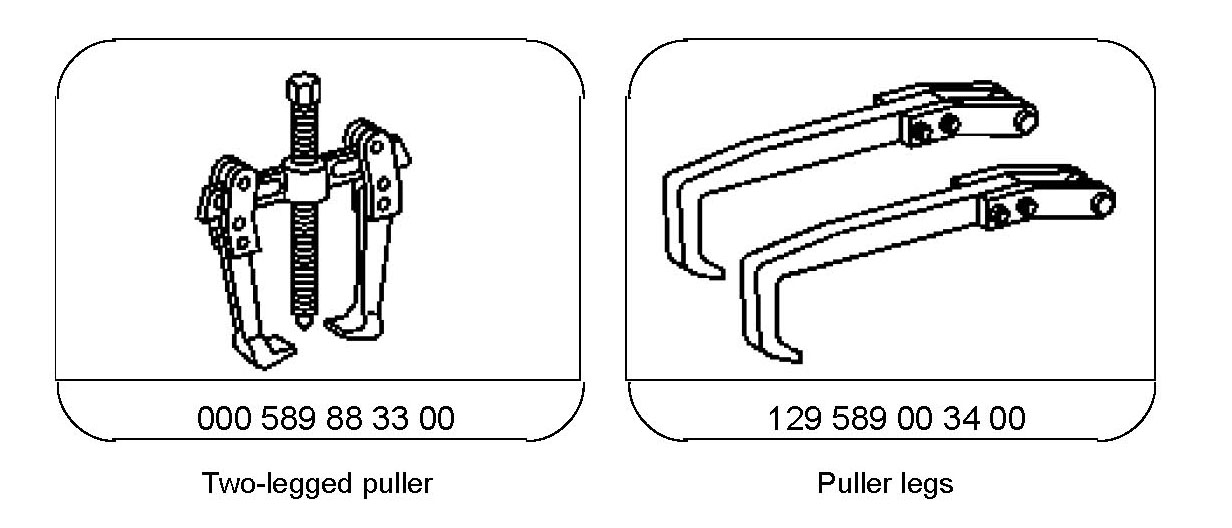

Special Tools:

Component Identification:

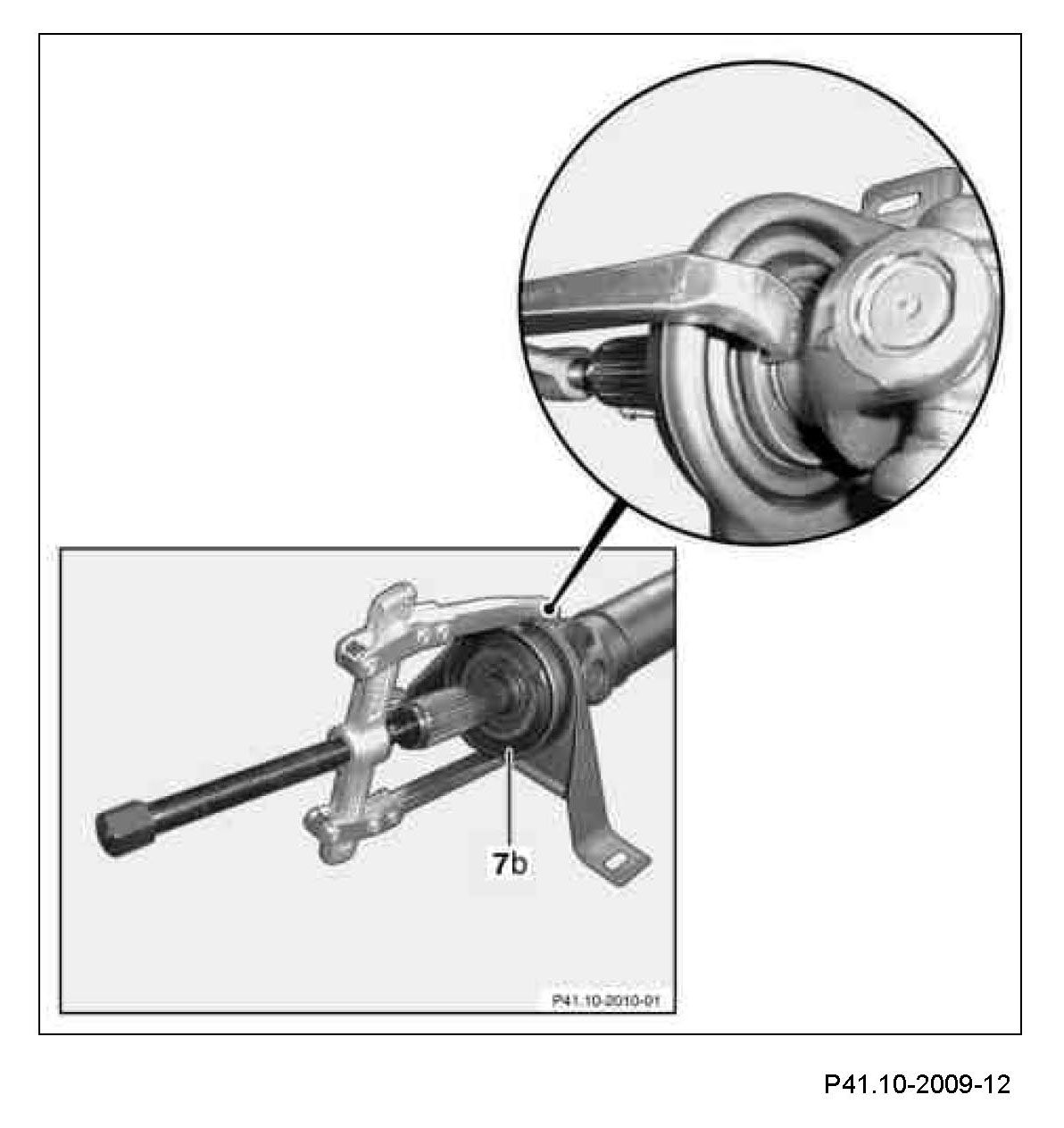

1 Position puller, two-armed with pulling arms (see magnified section).
2 Pull rubber mount (7b) together with grooved ball bearing off the joint fork.
