AR41.10-P-0100-02TX Press Grooved Ball Bearing Out of Rubber Mount of Propeller Shaft, Press In

AR41.10-P-0100-02TX Press grooved ball bearing out of rubber mount of propeller shaft, press in

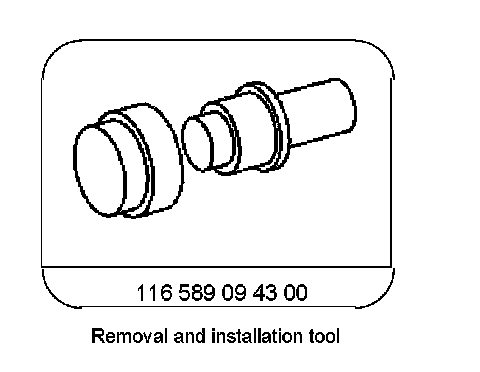

Special Tools:

Component Identification:

Press out

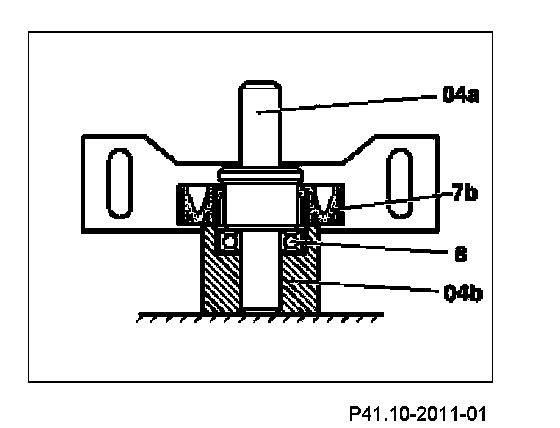

1 Use the removal and installation tool (04a, 04b) to press the grooved ball bearing (8) out of the rubber mount (7b).

Component Identification:

Pressing in

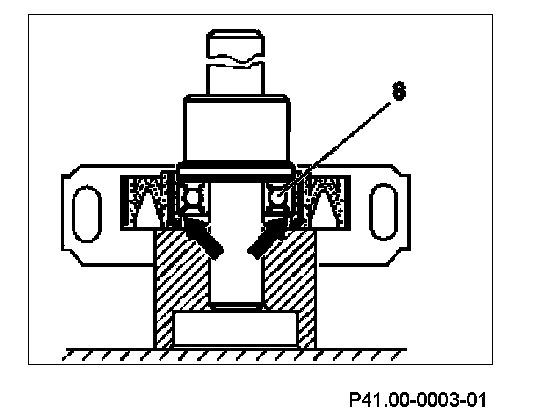

2 Press grooved ball bearing (8) into the rubberized bearing seat up to the contact surface (arrows) using press out/in tool (04a, 04b).
Pay attention to correct seat of grooved ball bearing (8).
