AR35.30-P-0620EW Remove/Install Rear Axle Shaft

AR35.30-P-0620EW Remove/Install Rear Axle Shaft

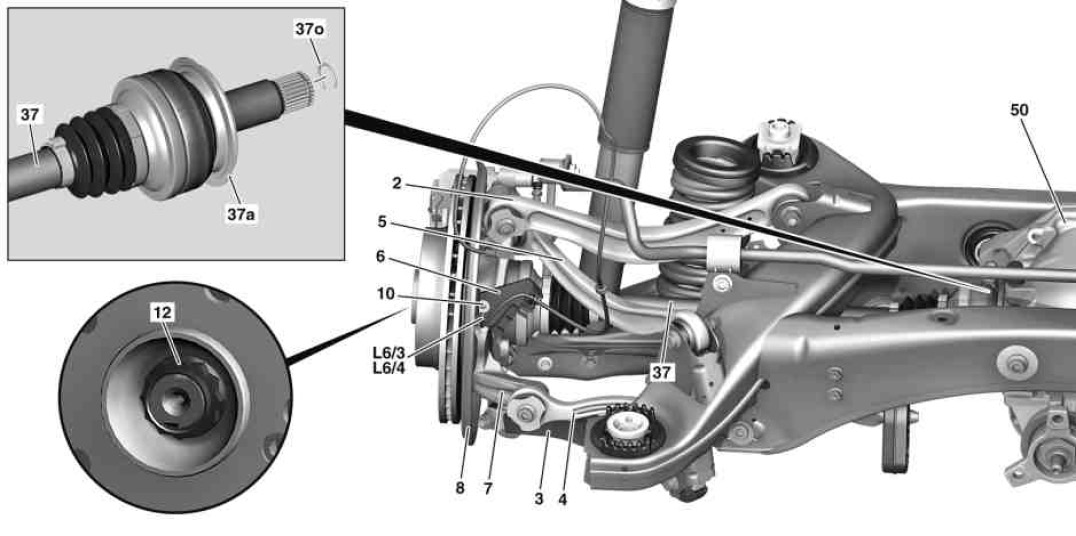

MODEL 212, 218





2 Camber strut
3 Thrust arm
4 Tie rod
5 Torque strut
6 Bracket
7 Wheel carrier
8 Shield
10 Screw
12 Twelve-point collar nut
37 Rear axle shaft
37a Protective ring
37o Retaining ring
50 Differential

L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
