AR35.31-P-0520EW Remove/Install Rear Axle Differential



AR35.31-P-0520EW Remove/install rear axle differential

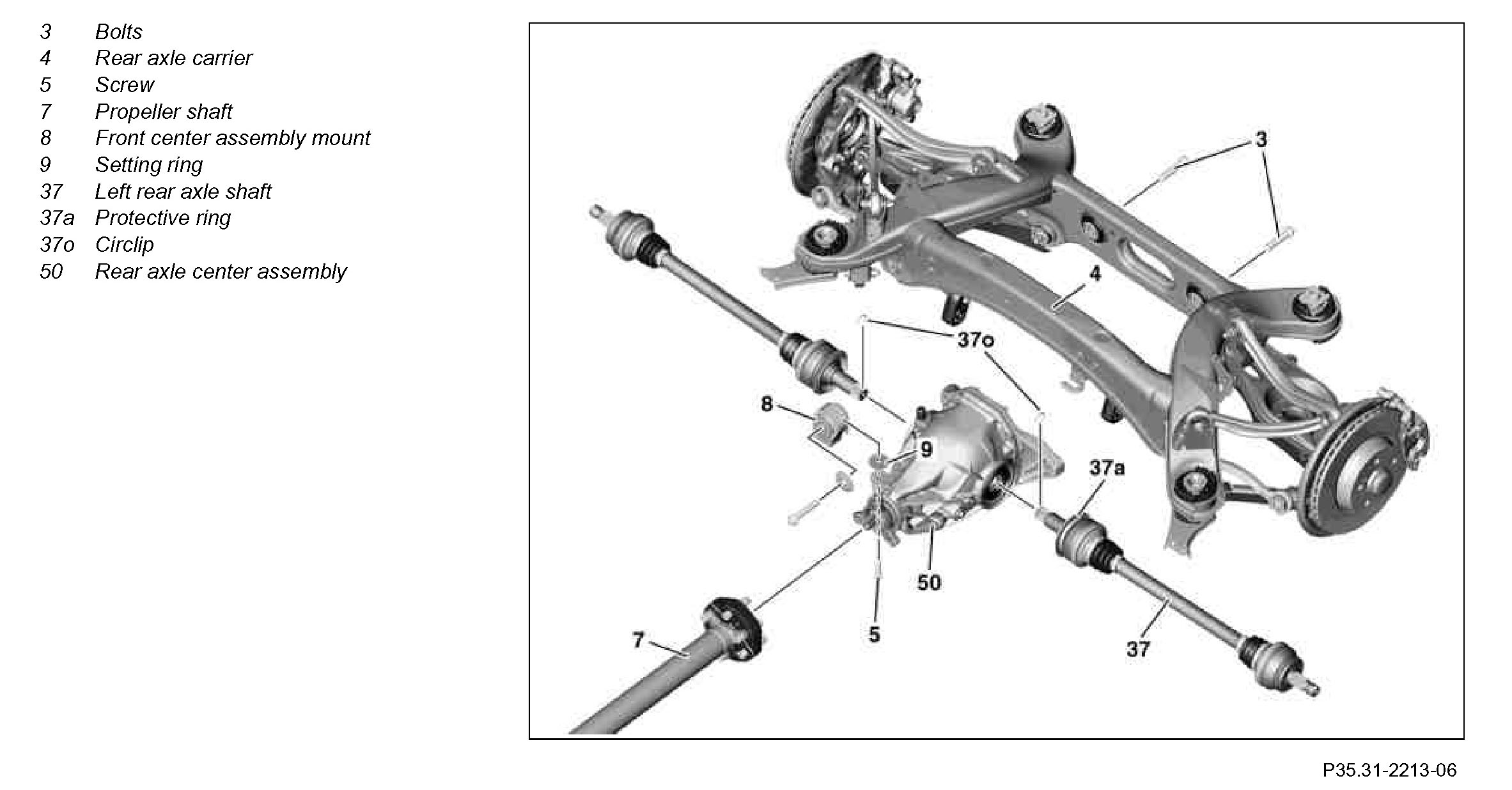

Component Identification:

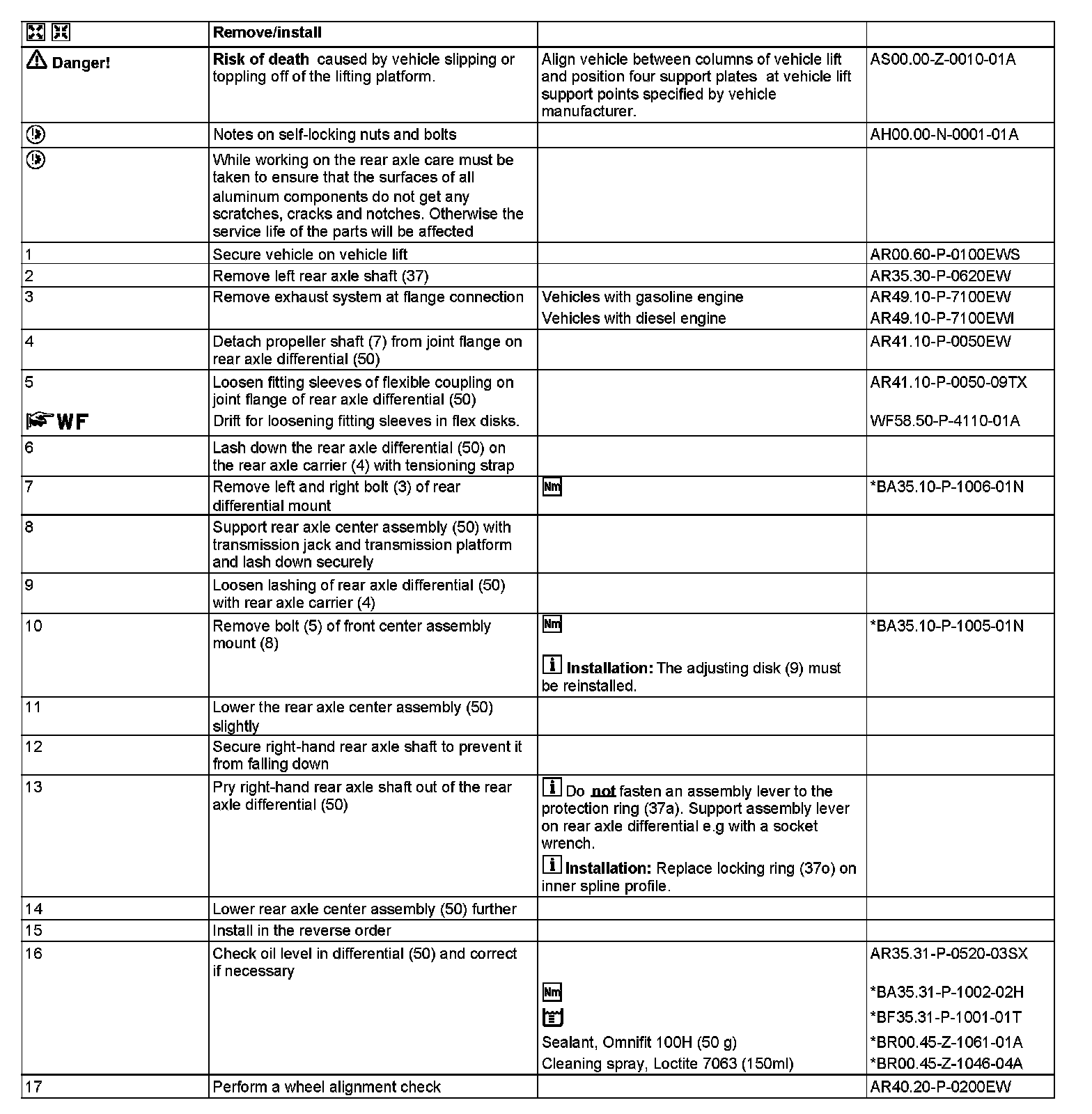

Steps 1-17:

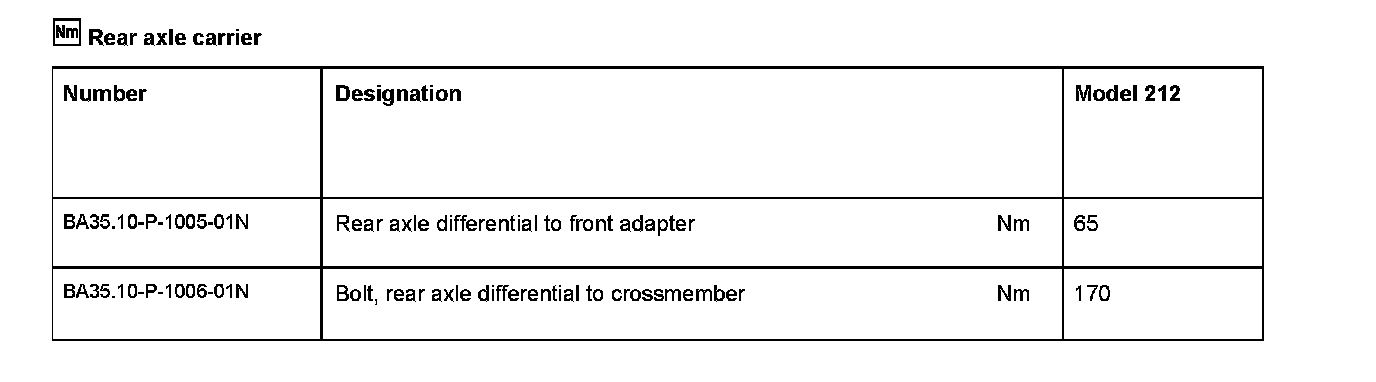

Rear axle carrier:

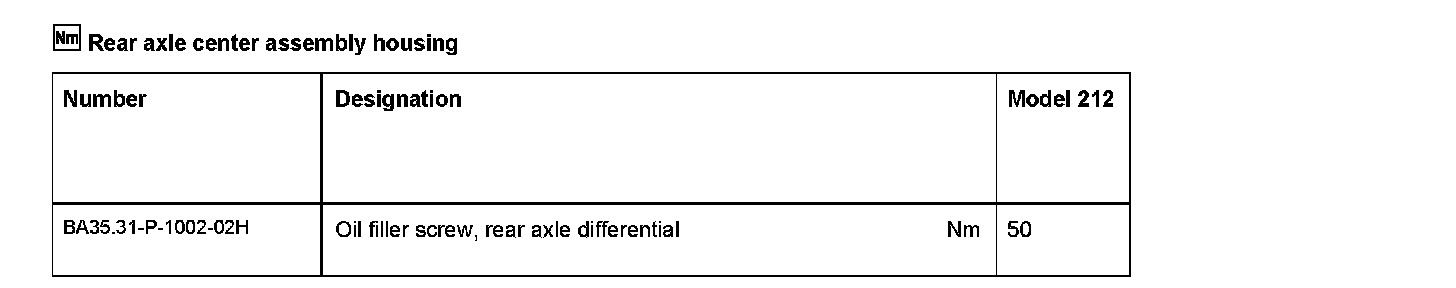

Rear axle center assembly housing:

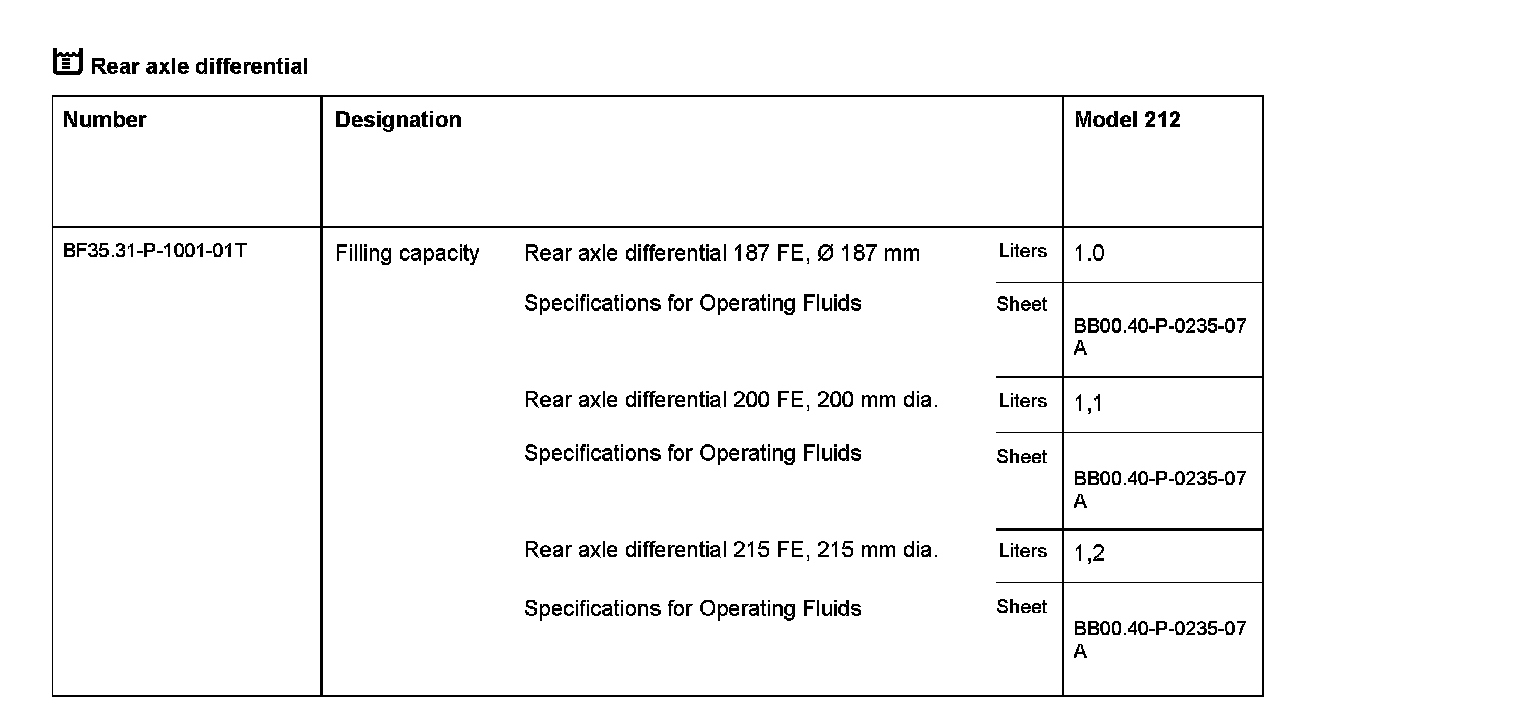

Rear axle differential:




Repair materials:
