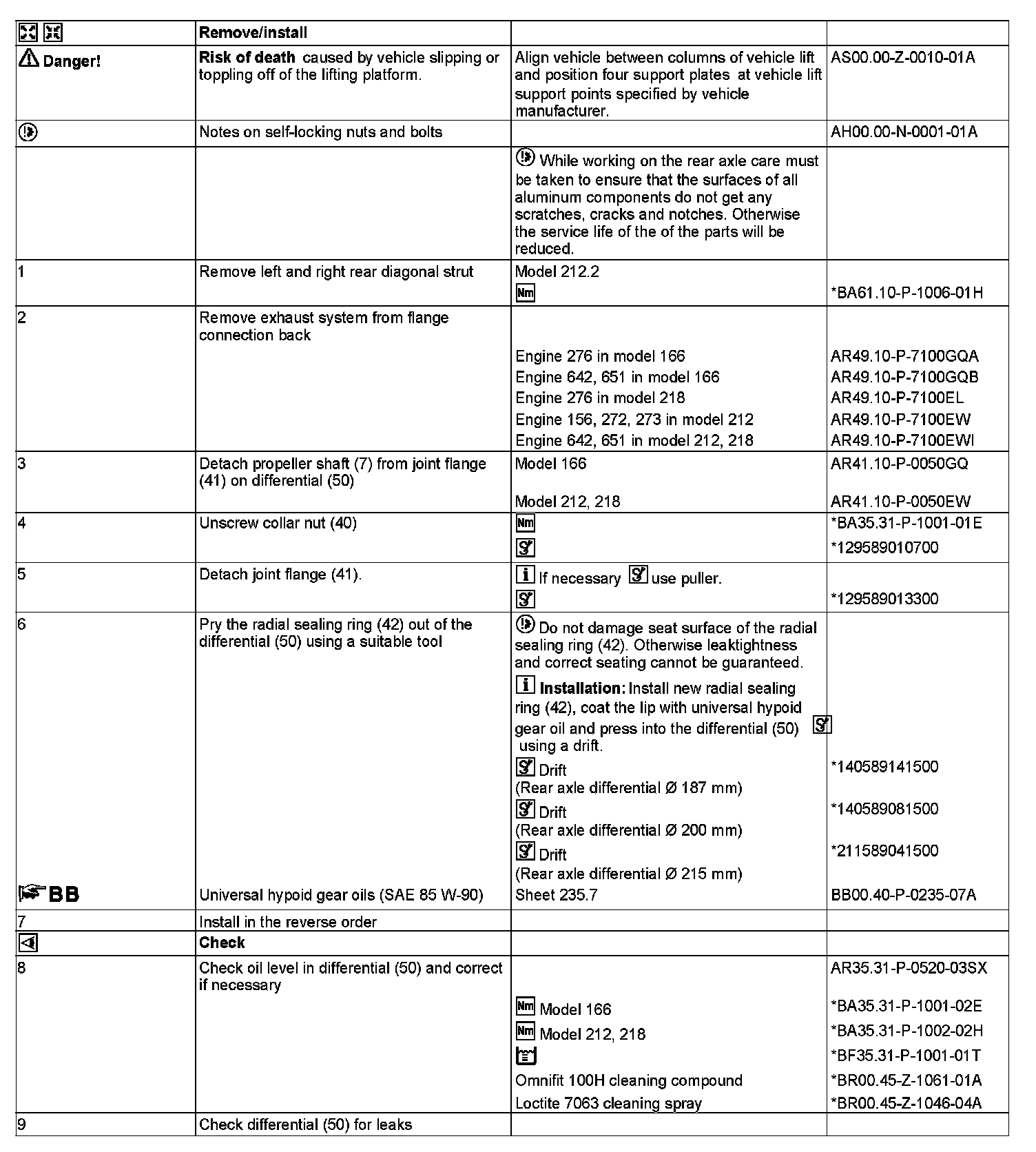

AR35.31-P-0530EW Install New Radial Sealing Ring at Drive Pinion Gear (With Differential Installed)

AR35.31-P-0530EW Install New Radial Sealing Ring At Drive Pinion Gear (With Differential Installed)
MODEL 166, 212, 218

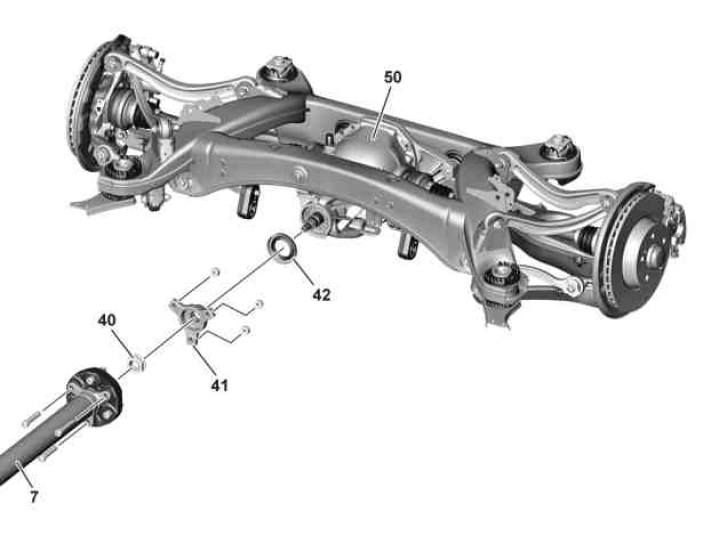

7 Propeller shaft

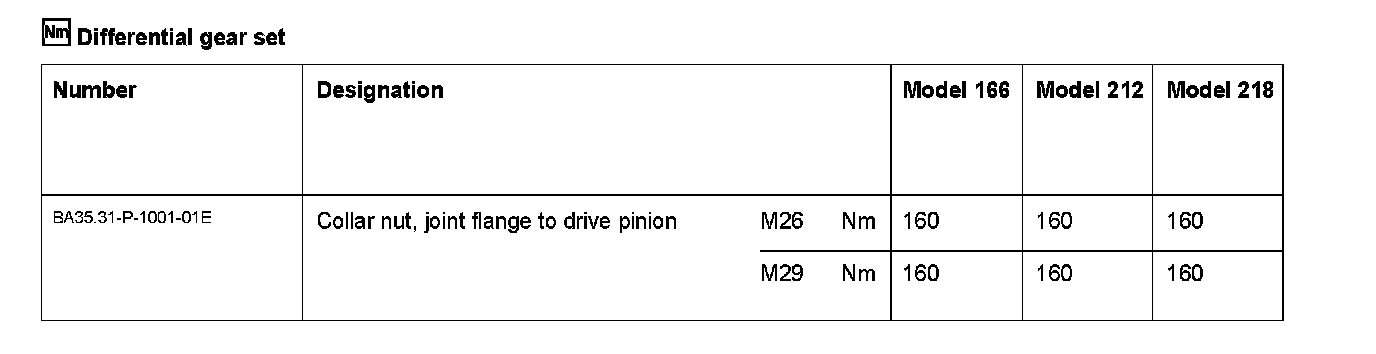

40 Hexagon collar nut
41 Joint flange
42 Radial sealing ring

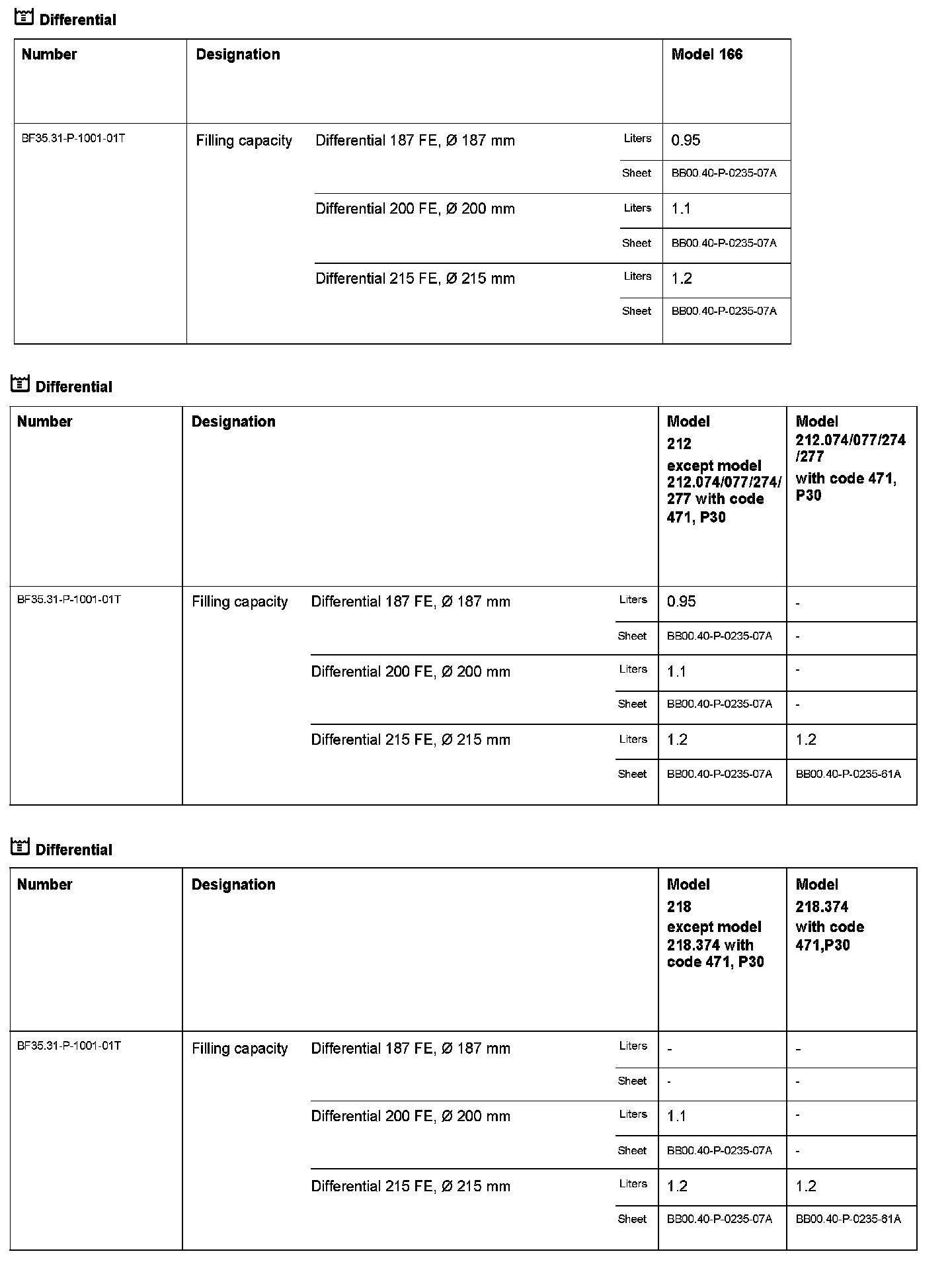

50 Differential


























129 589 01 07 00
Pin wrench





129 589 01 33 00
Puller





211 589 04 15 00
Drift





140 589 08 15 00
Drift





140 589 14 15 00
Drift
