Differential Mount: Service and Repair
AR35.10-P-0050EW Remove/install rear rubber mounts for differential mount in rear axle carrier

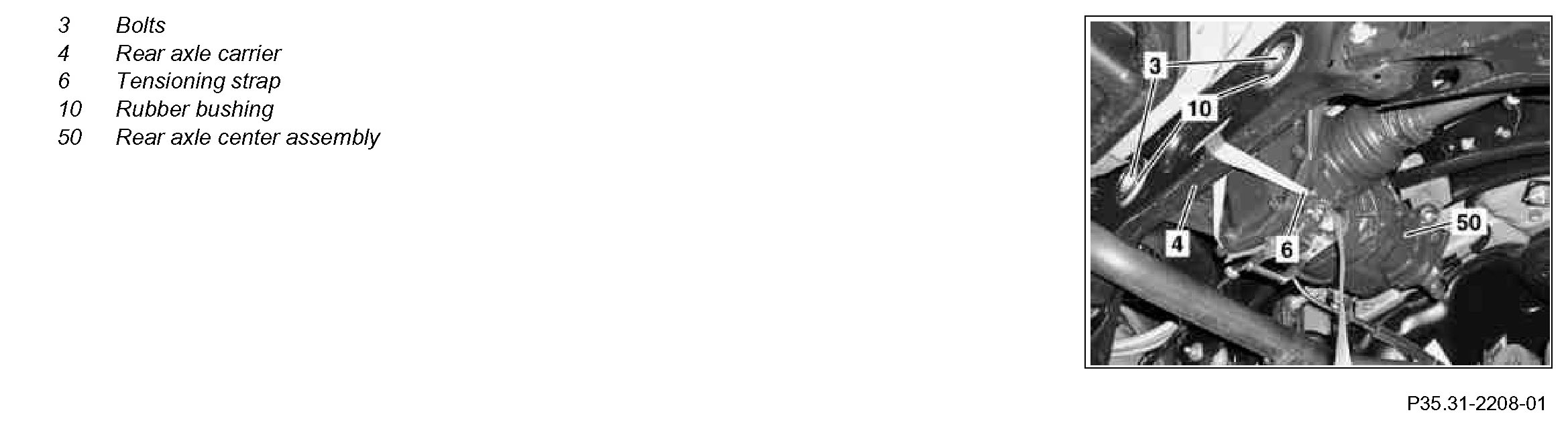

Component Identification:

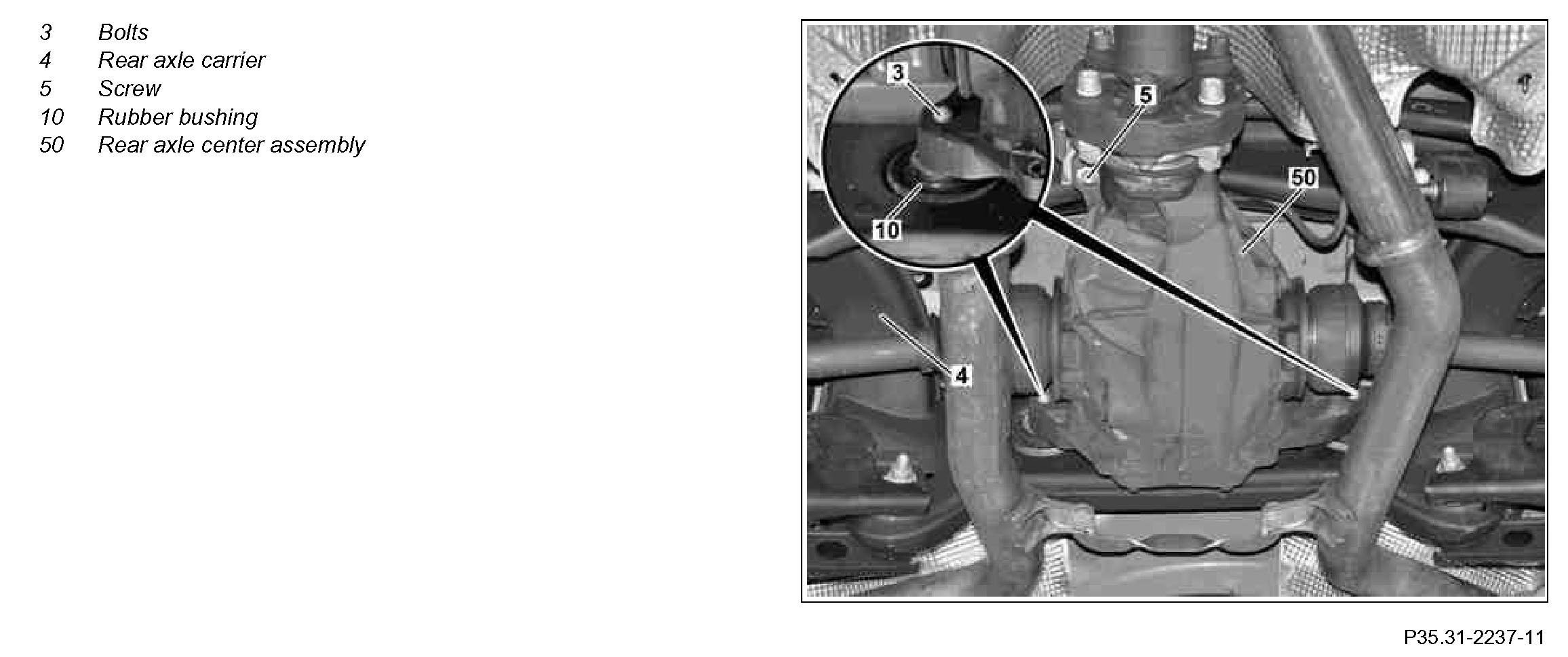

Component Identification:

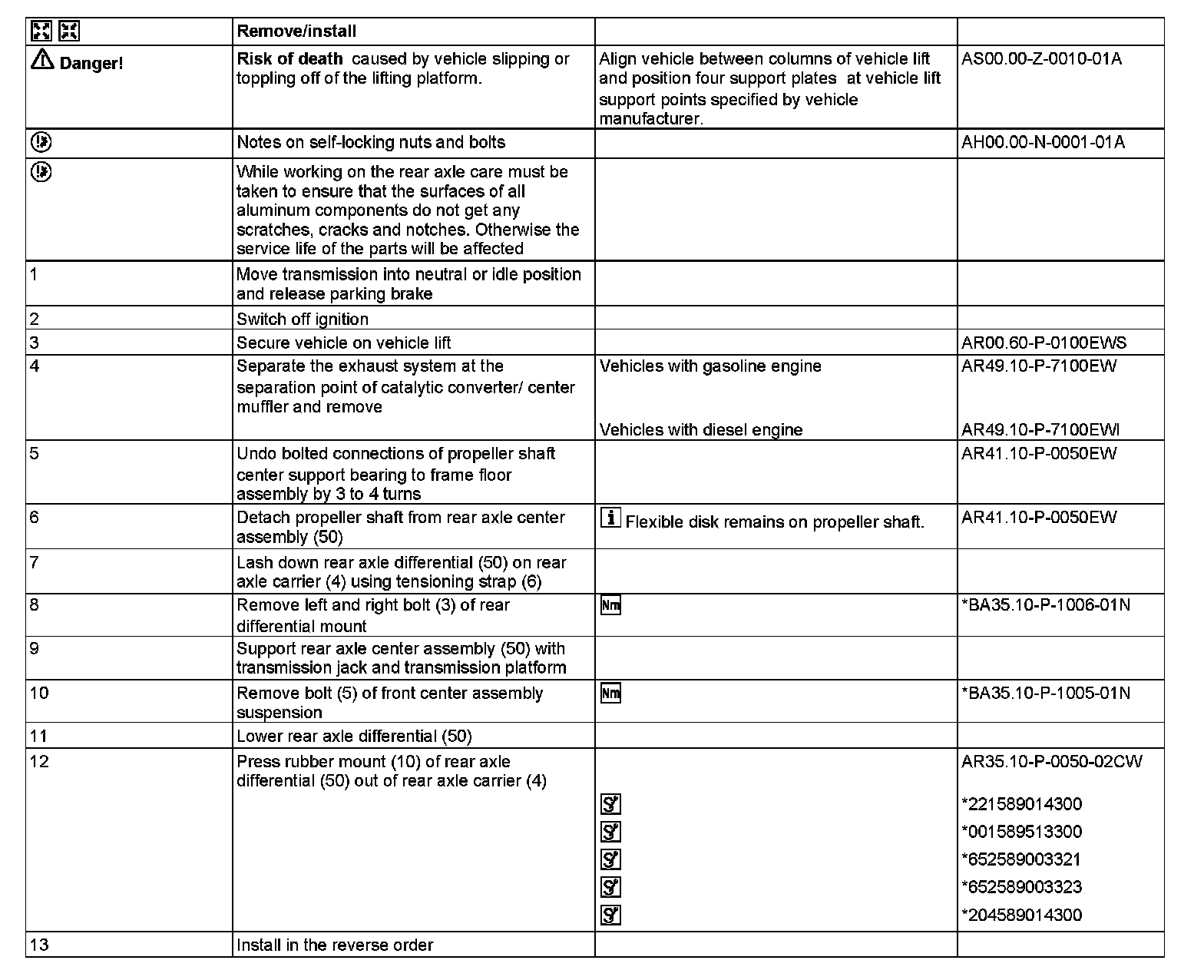

Steps 1-13:

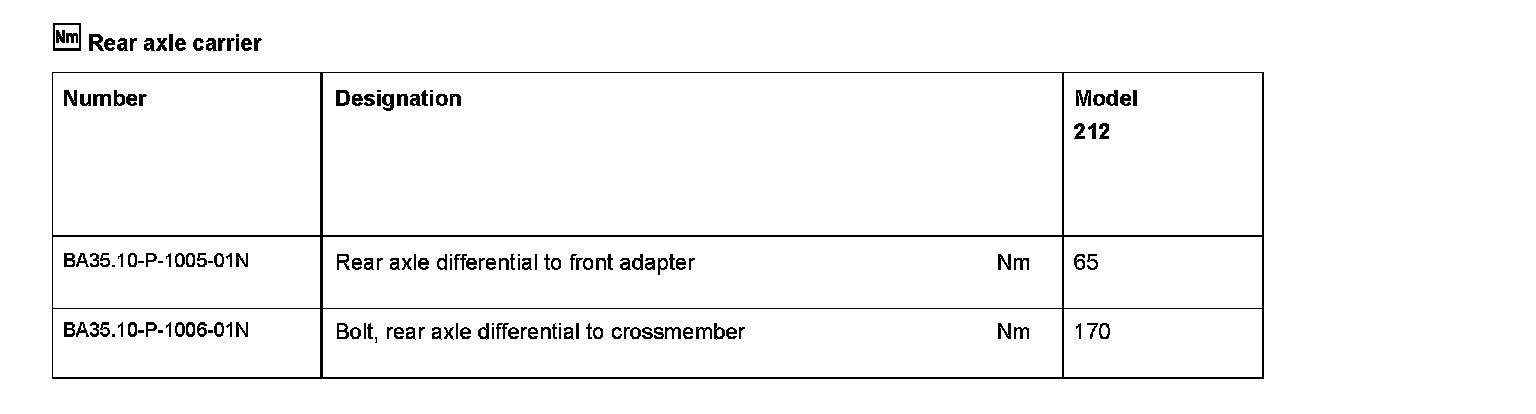

Rear axle carrier:

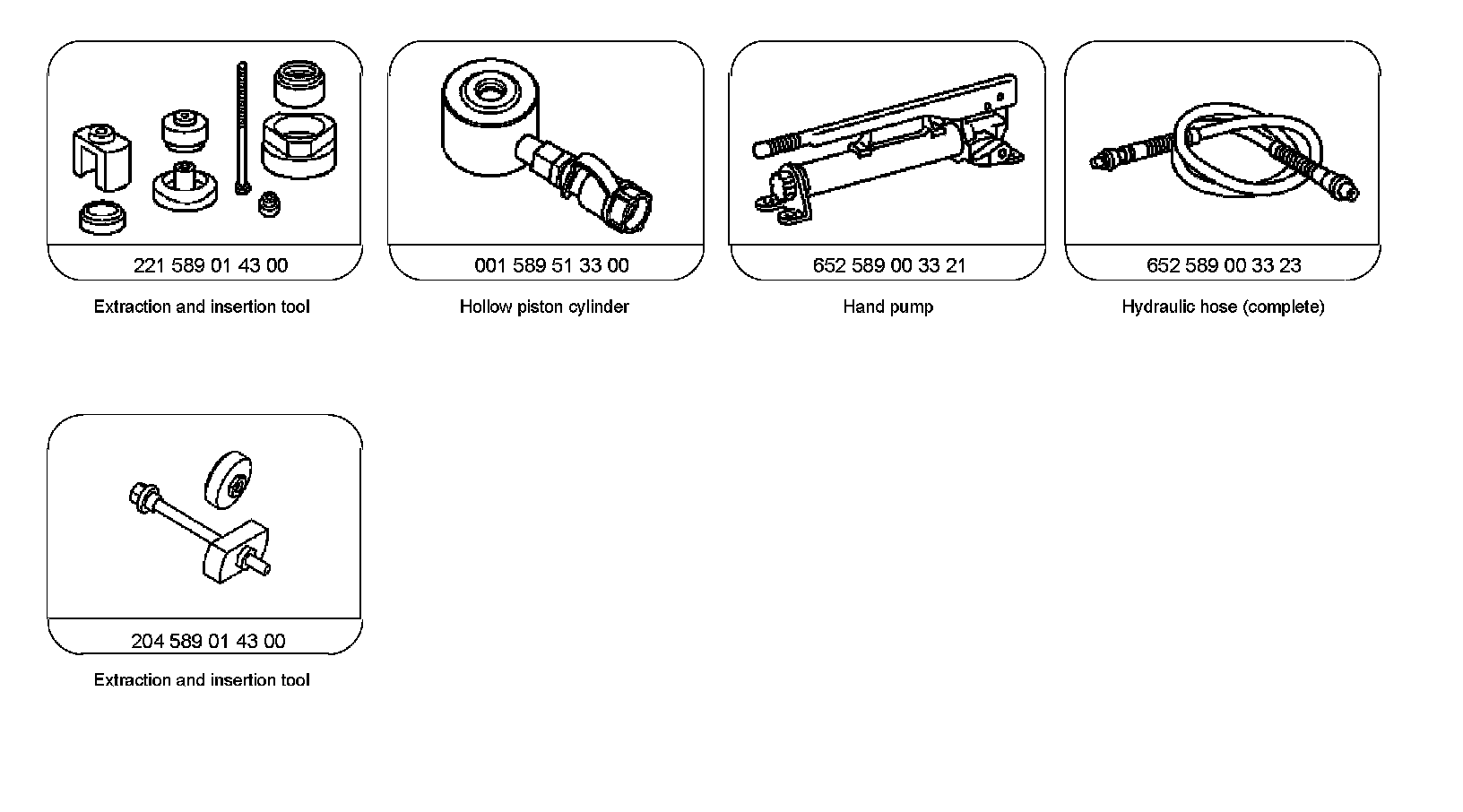

Special Tools:
AR35.10-P-0050EW Remove/install rear rubber mounts for differential mount in rear axle carrier
