AR35.31-P-0554EW Remove/Install End Cover at Rear Axle Differential



AR35.31-P-0554EW Remove/install end cover at rear axle differential

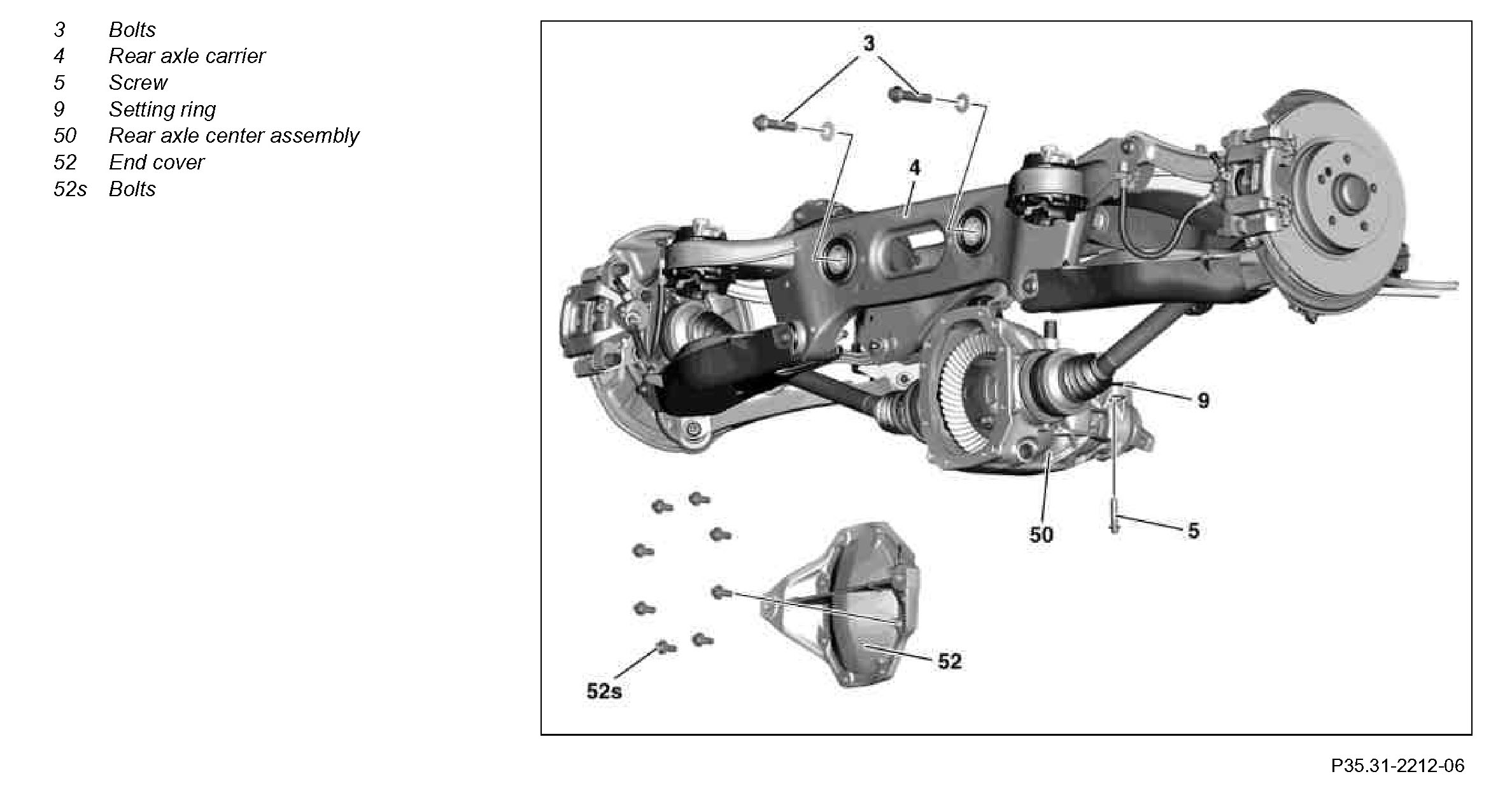

Component Identification:

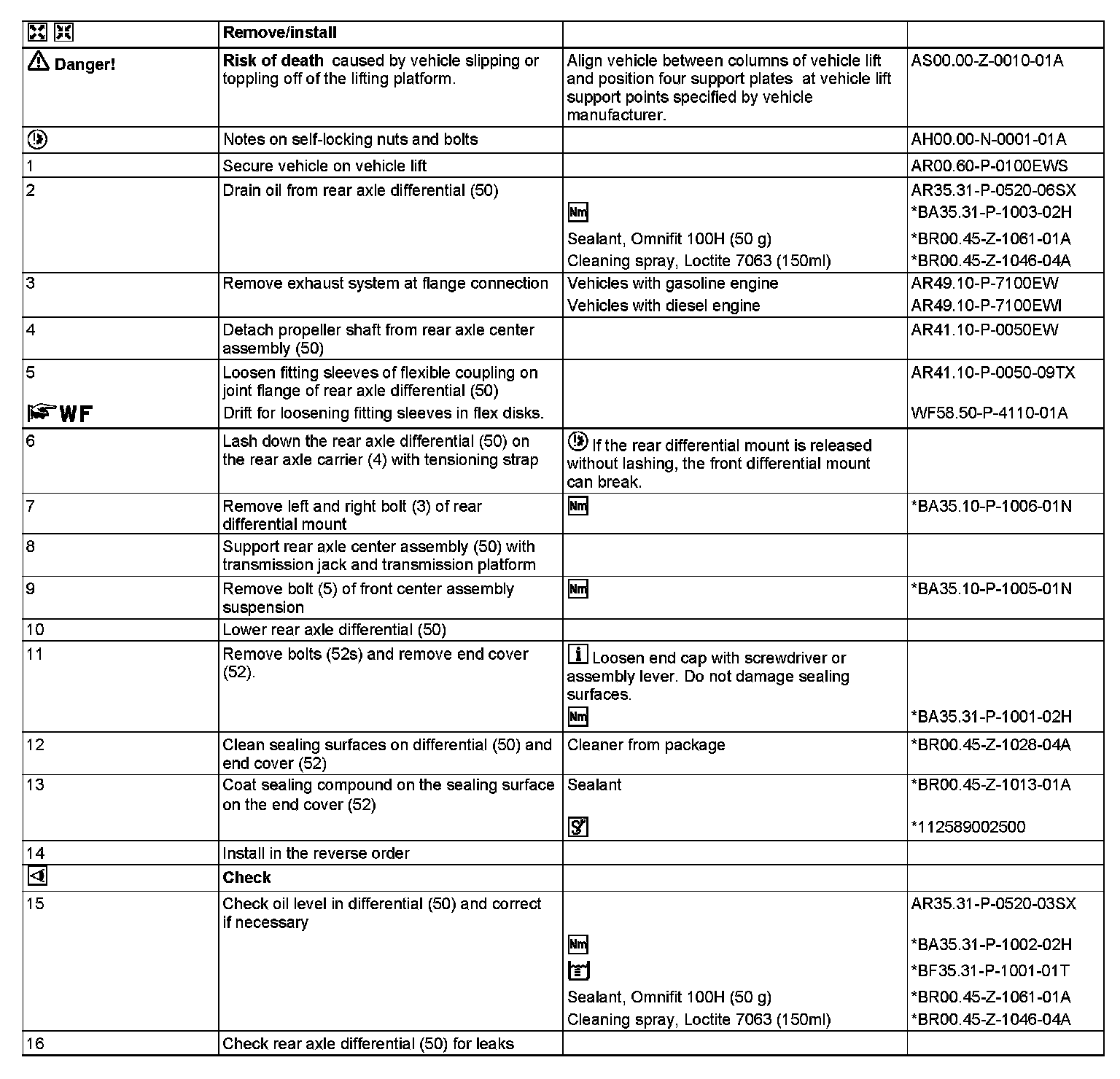

Steps 1-16:

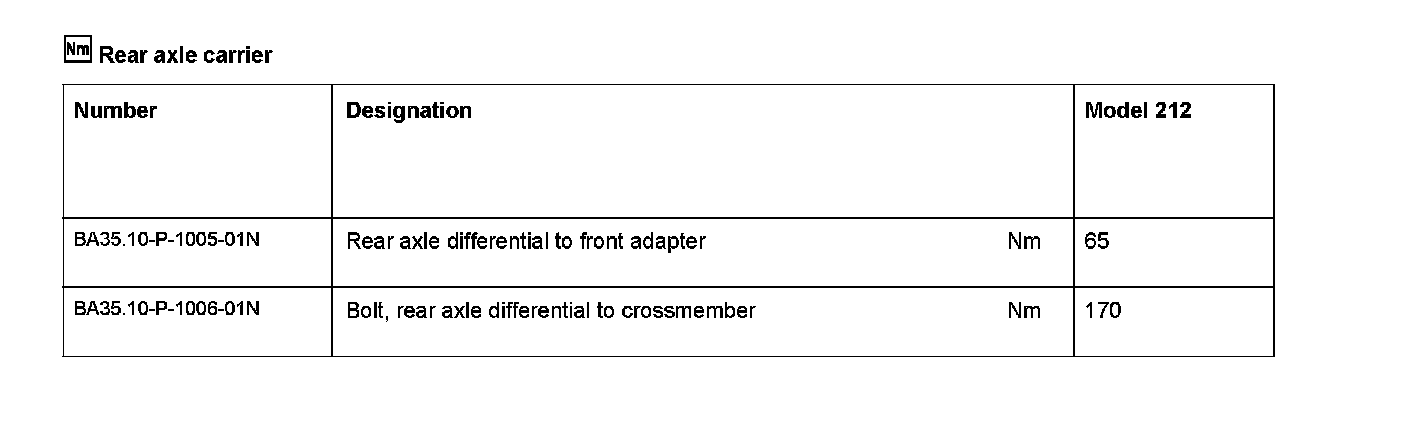

Rear axle carrier:




Rear axle center assembly housing:

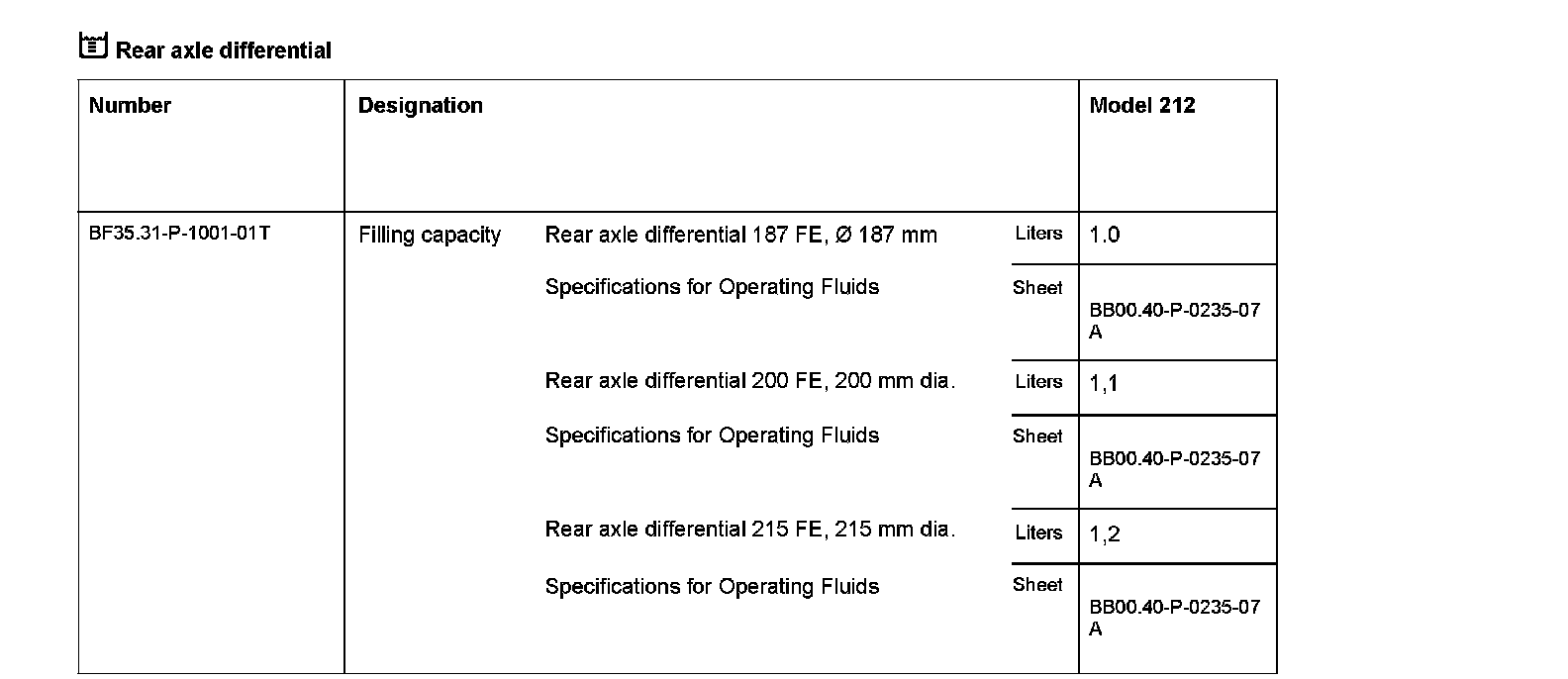

Rear axle differential:

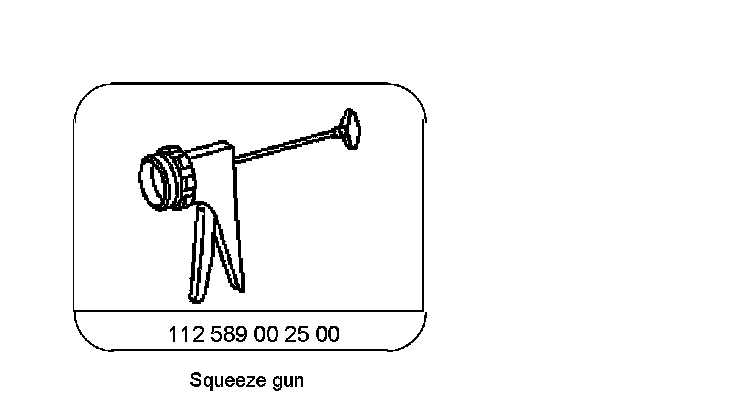

Special Tools:

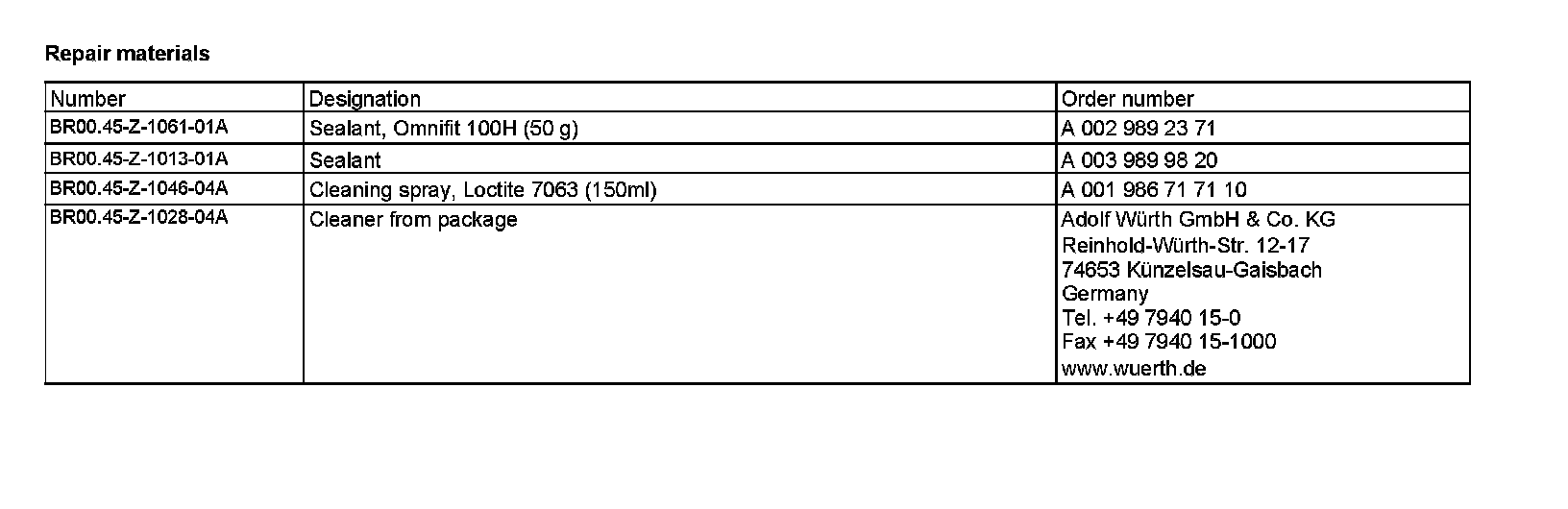

Repair materials:
