E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Clutch
>>
Clutch Hydraulic System
>>
Clutch Master Cylinder
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR25.20-P-0100EW Remove/install master cylinder

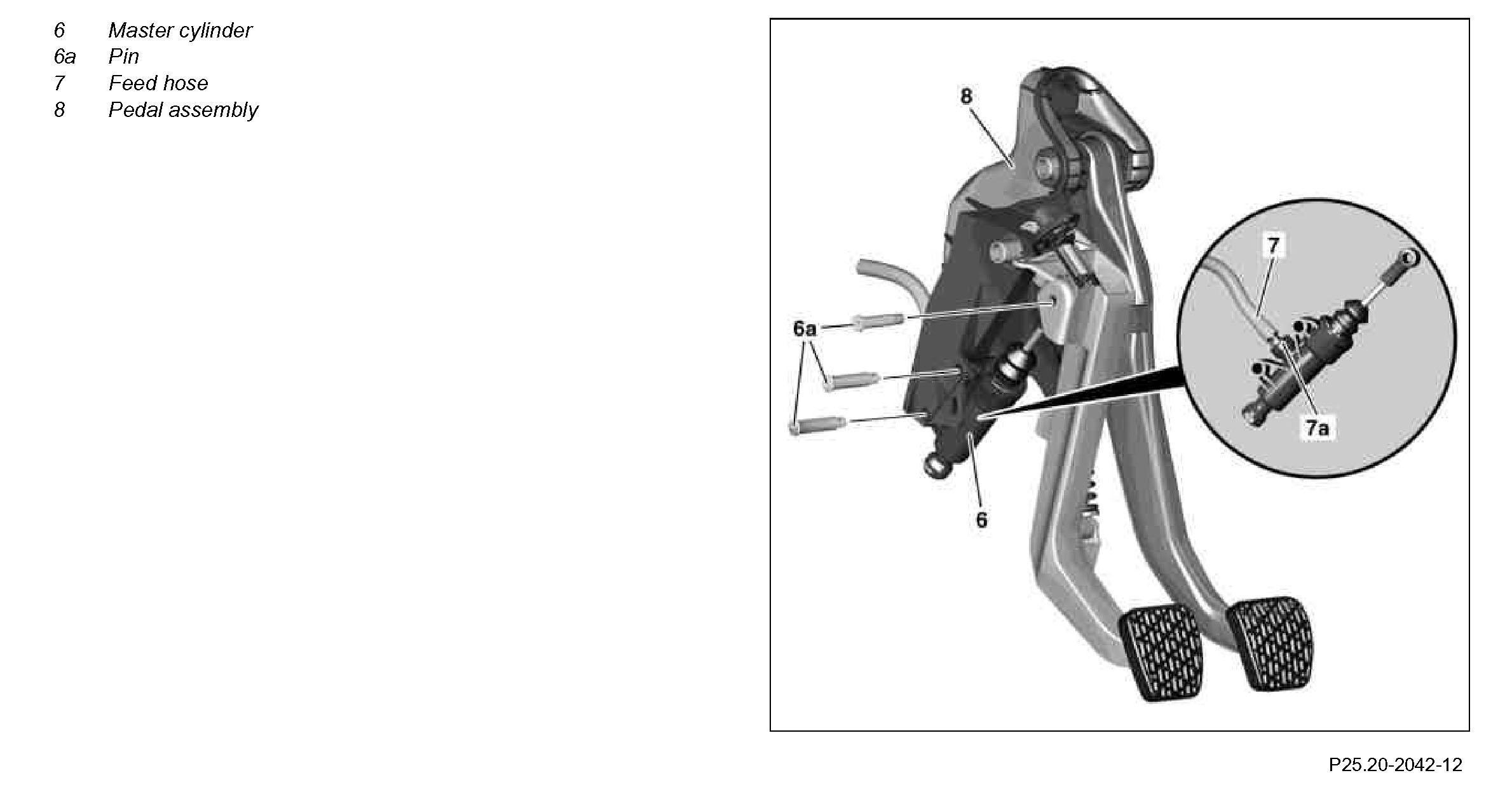

Component Identification:

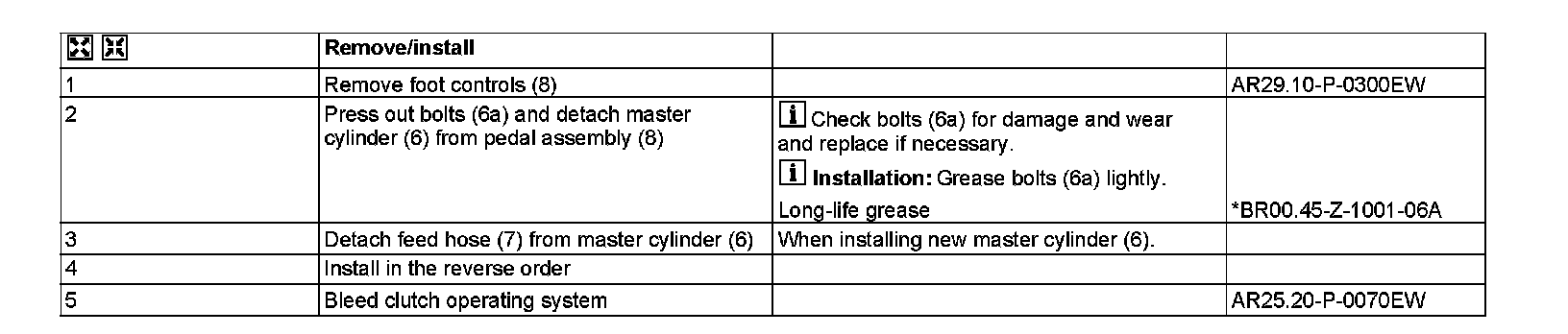

Steps 1-5:

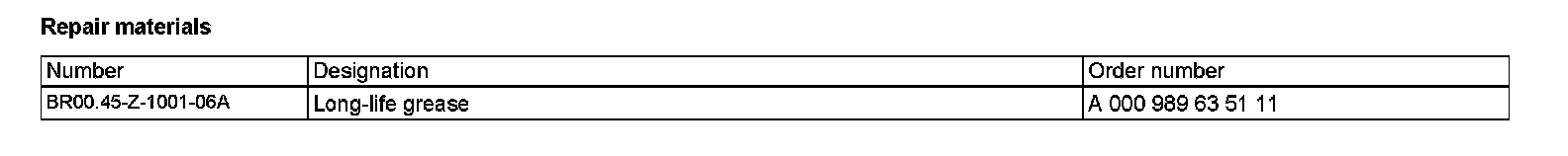

Repair materials:
