AR27.19-P-0200CW Remove/Install Electrohydraulic Controller Unit (Transmission Installed)

AR27.19-P-0200CW Remove/Install Electrohydraulic Controller Unit (Transmission Installed)
TRANSMISSION 722.6 in MODEL 204.0 /2
TRANSMISSION 722.6 in MODEL 212

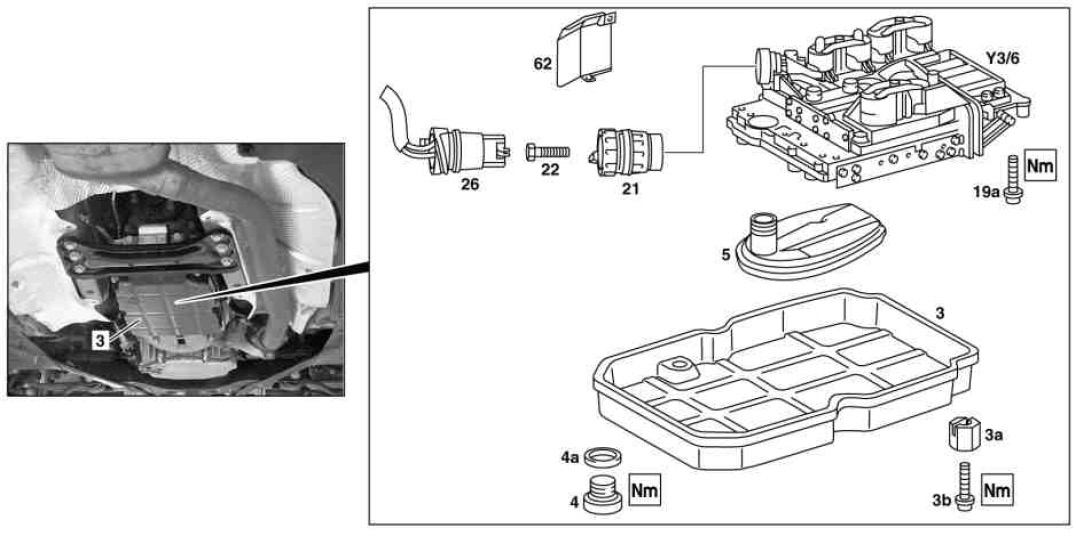

3 Transmission oil pan
3a Sprag
3b Internal Torx bolt
4 Oil drain screw
4a Sealing ring
5 Oil filter
19a Screw
21 Pilot bushing
22 Screw
26 Plug-in connector
62 Heat shield

Y3/6 Automatic transmission electric controller unit
