Shift Linkage: Adjustments
AR27.60-P-0980EW Adjusting shift rod
- Transmission 722.6

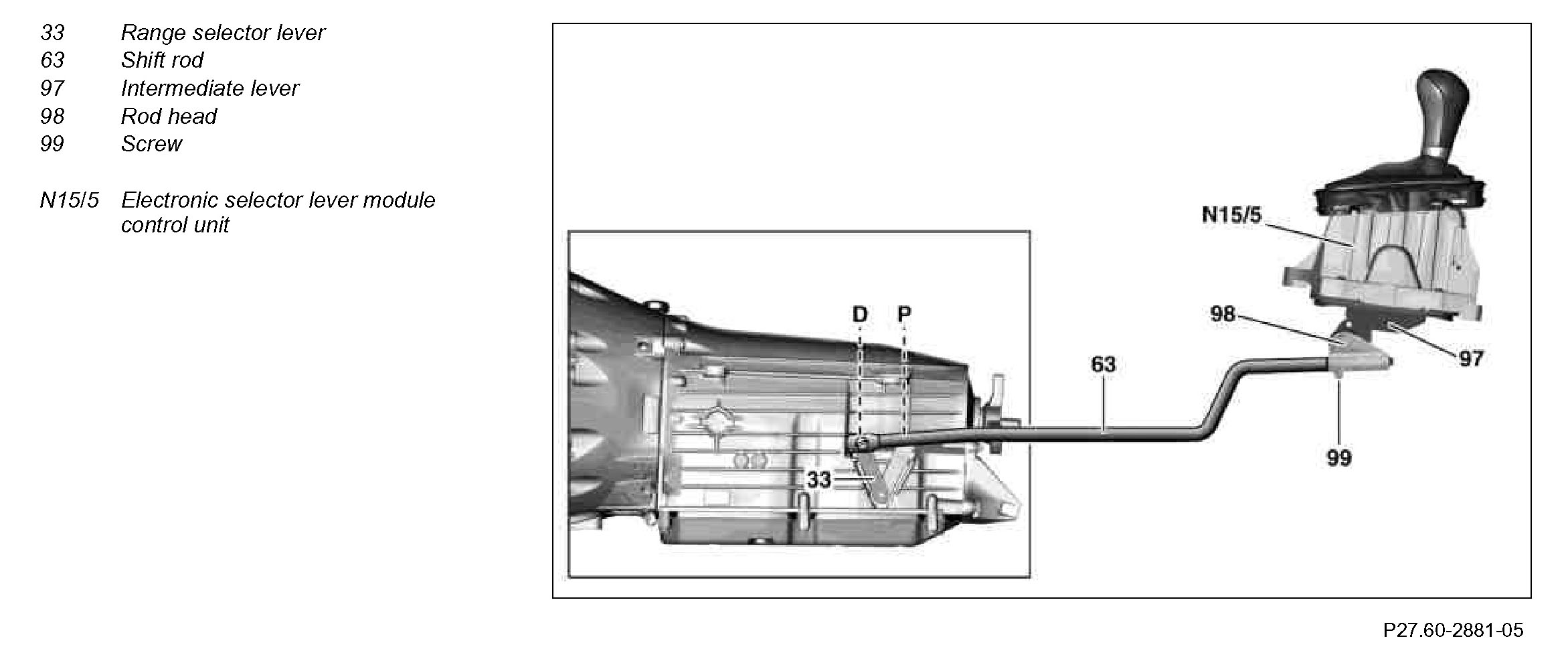

Component Identification:

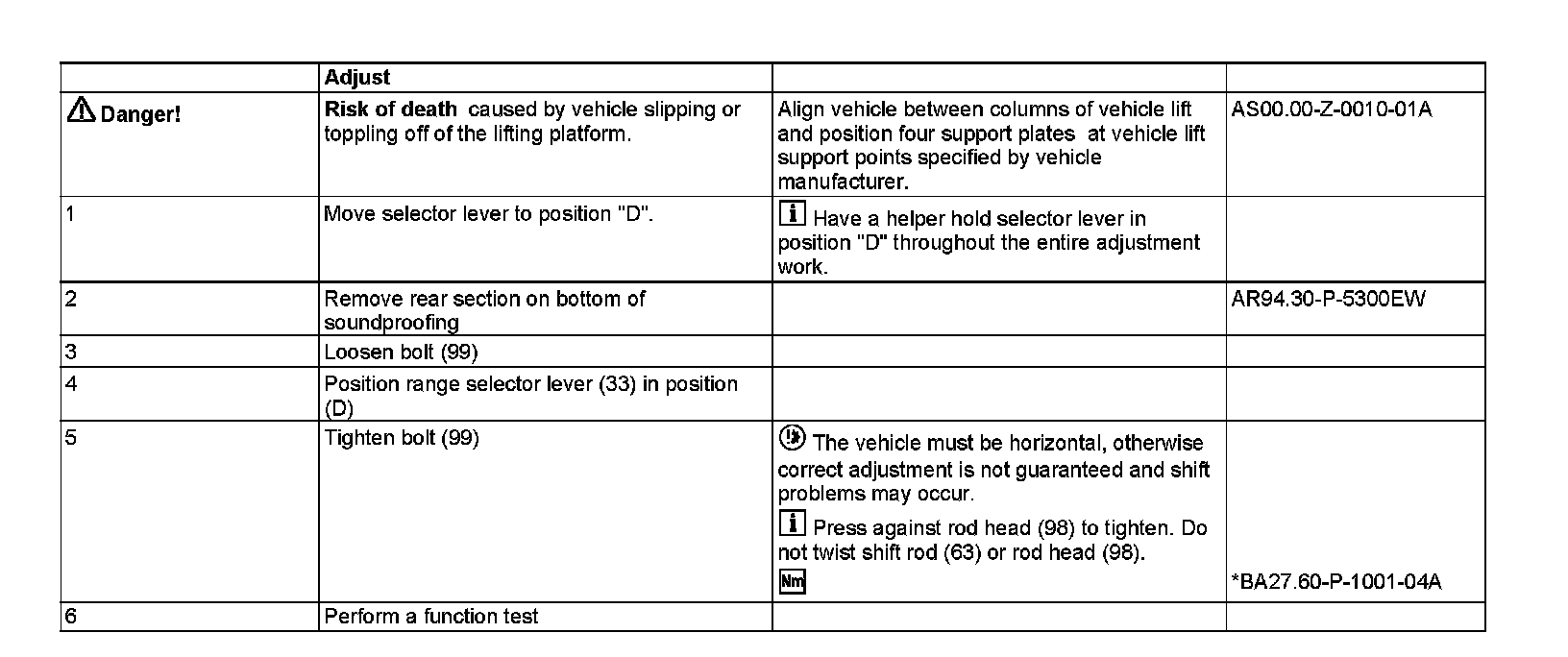

Steps 1-6:

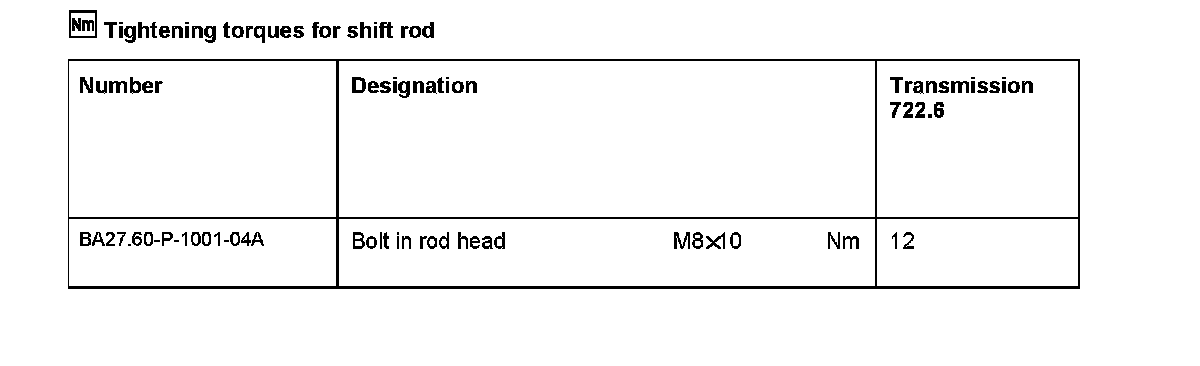

Tightening torques for shift rod:
