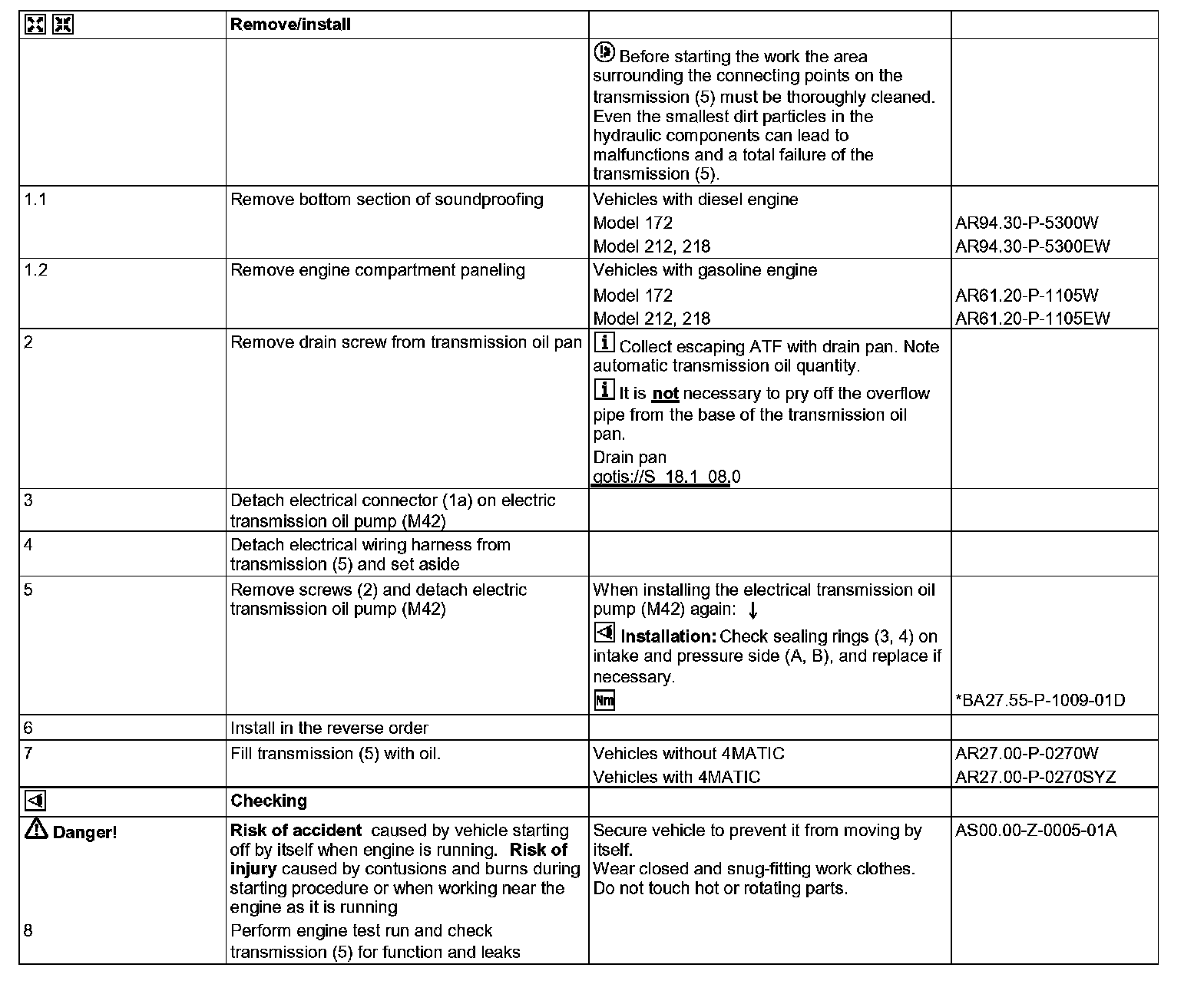

AR27.30-P-0651EL Remove/Install Auxiliary Oil Pump For Automatic Transmission

AR27.30-P-0651EL Remove/Install Auxiliary Oil Pump For Automatic Transmission
- TRANSMISSION 722.9 in MODEL 172, 212, 218

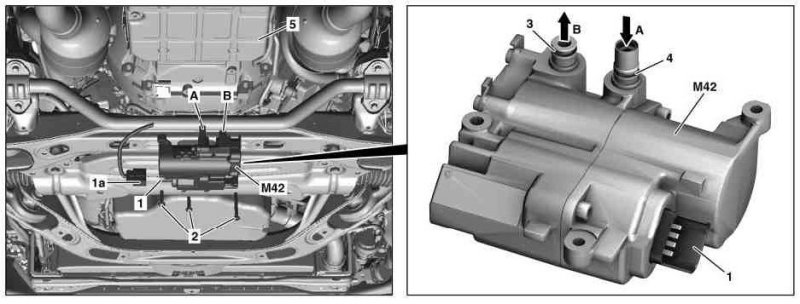

1 Electrical connection
1a Electrical connector
2 Screw
3 Sealing ring
4 Sealing ring
5 Transmission
M42 Electric transmission oil pump

A Suction side
B Thrust side
