GF27.10-P-0001-09AHL Automatic Transmission (AT), Location of Hydraulic Components

GF27.10-P-0001-09AHL Automatic Transmission (AT), Location of Hydraulic Components
- TRANSMISSION 722.9 (except 722.930/931) in MODEL 212

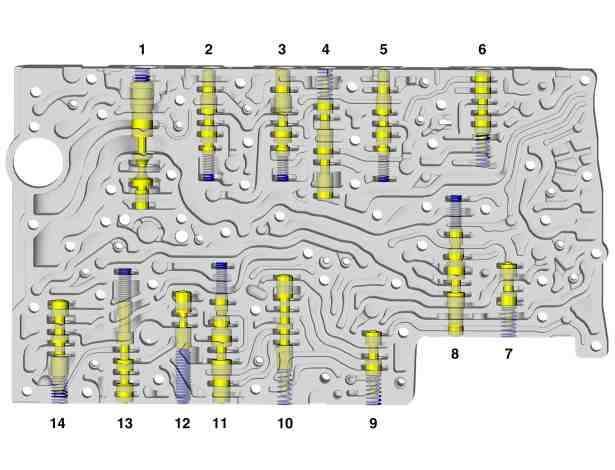

Top view of valve body

1 Working pressure regulating valve
2 Regulating valve K1
3 Regulating valve B1
4 Shift valve B1 or B3
5 Regulating valve B3
6 Shift valve K3
7 Shift valve B2 - 2
8 Regulating valve B2 or BR
9 Shift valve K2
10 Limp-home mode shift valve
11 Regulating valve K2
12 Lubrication pressure regulating valve
13 Torque converter lockup clutch regulating valve
14 Torque converter interior pressure regulating valve with active torque converter lockup clutch

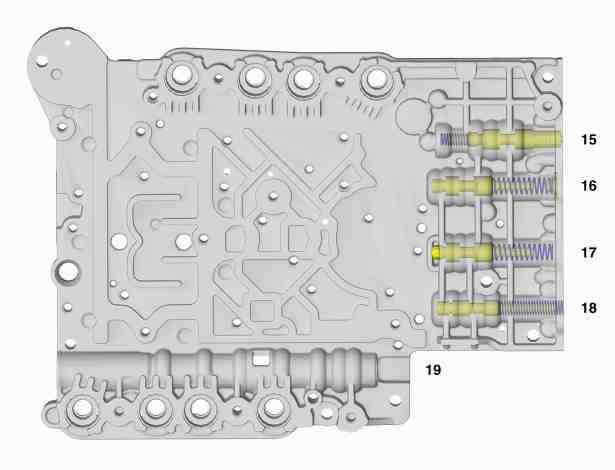

Top view of valve housing

15 Regulating valve K3
16 Supply pressure 1 regulating valve
17 Supply pressure 2 regulating valve
18 Shift valve B2 - 1
19 Selector valve
