GF27.10-P-0001-07AHL Automatic Transmission (AT), Location of Mechanical Parts

GF27.10-P-0001-07AHL Automatic Transmission (AT), Location of Mechanical Parts

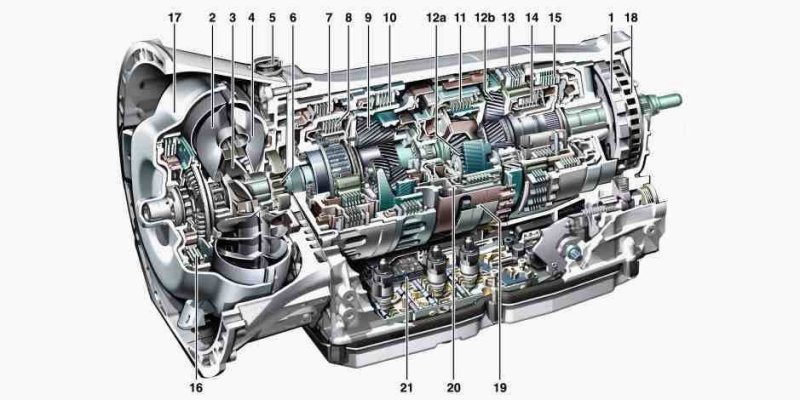

- TRANSMISSION 722.9 (except 722.930/931) in MODEL 212





1 Parking lock gear
2 Turbine wheel
3 Stator
4 Impeller
5 Transmission housing breathing
6 Oil pump
7 Multidisk brake B1
8 Multidisk clutch K1
9 Ravigneaux gear set
10 Multidisk brake B3
11 Multidisk clutch K2
12a Front single planetary gear set
12b Rear single planetary gear set
13 Multi-disk brake BR
14 Multidisk clutch K3
15 Multidisk brake B2
16 Torque converter lockup clutch
17 Torque converter housing
18 Pulse ring for measuring rotational speed
19 Ring magnet for measuring rotational speed
20 Ring magnet for measuring rotational speed
21 Fully integrated transmission control controller unit (Y3/8)

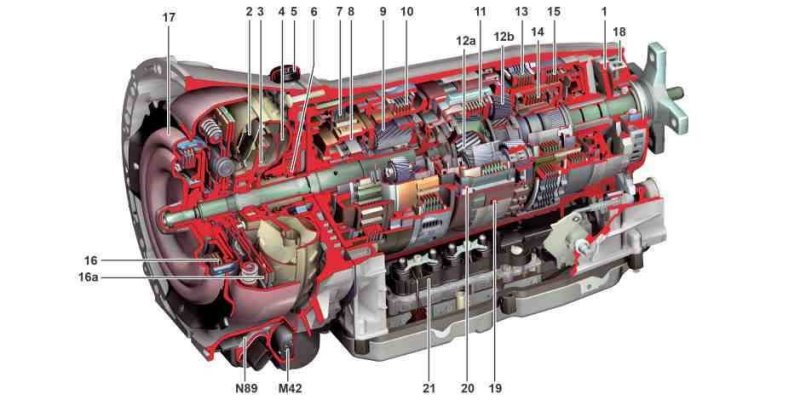

Sectional view of automatic transmission with torque converter and integrated centrifugal pendulum (with code (B03) ECO start/stop function

1 Parking lock gear
2 Turbine wheel
3 Stator
4 Impeller
5 Transmission housing breathing
6 Oil pump
7 Multidisk brake B1
8 Multidisk clutch K1
9 Ravigneaux gear set
10 Multidisk brake B3
11 Multidisk clutch K2
12a Front single planetary gear set
12b Rear single planetary gear set
13 Multi-disk brake BR
14 Multidisk clutch K3
15 Multidisk brake B2
16 Torque converter lockup clutch
16a Centrifugal pendulum
17 Torque converter housing
18 Pulse ring for measuring rotational speed
19 Ring magnet for measuring rotational speed
20 Ring magnet for measuring rotational speed
21 Fully integrated transmission control control unit

M42 Electric transmission oil pump
N89 Transmission oil auxiliary pump control unit

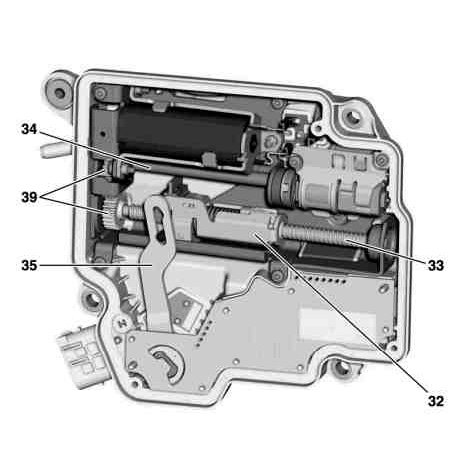

Rear view of intelligent servo module for DIRECT SELECT (A80)

32 Slider
33 Worm shaft
34 Eccentric shaft
35 Range selector lever
39 Drive gears
