Fluid Pump: Service and Repair

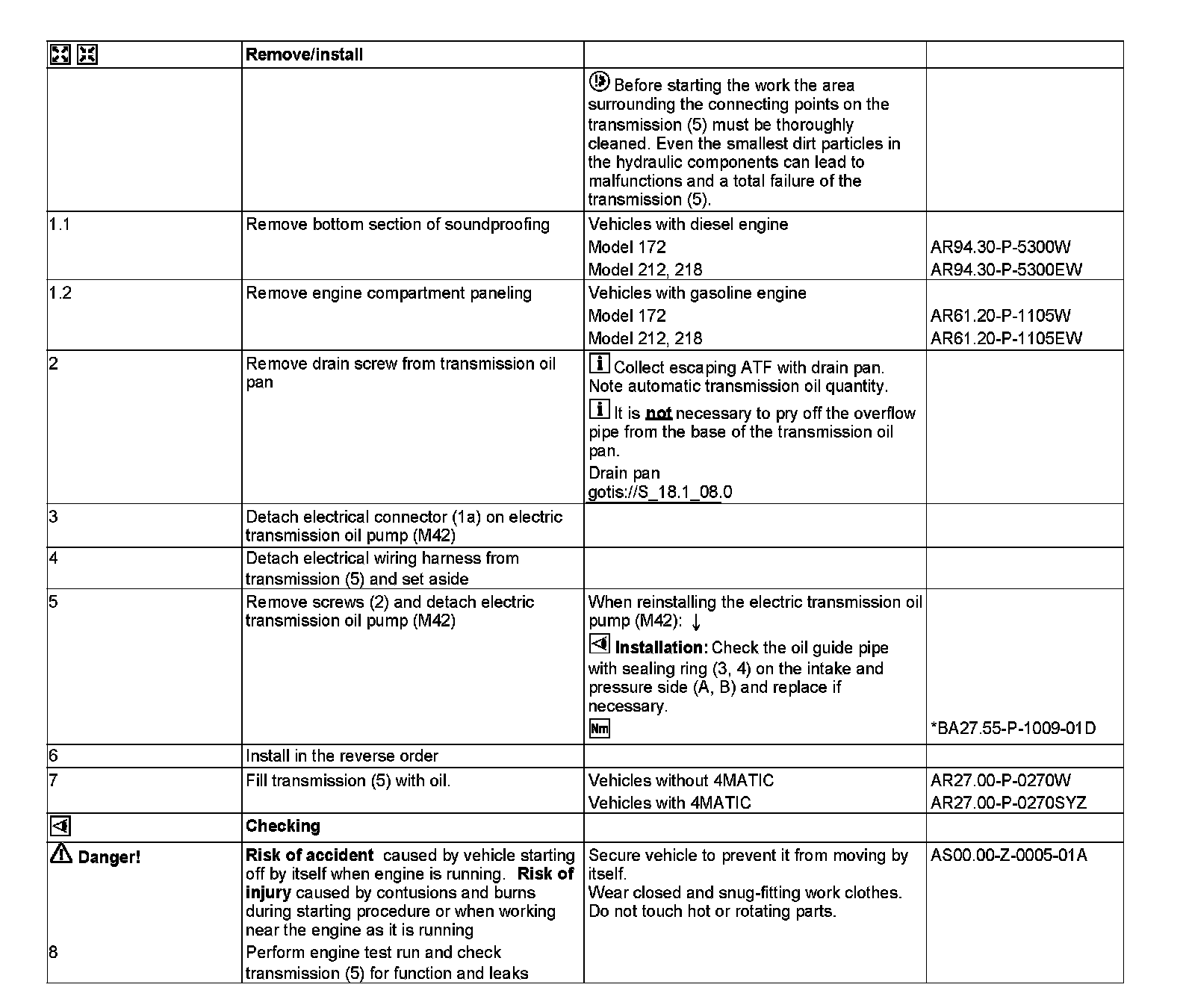

AR27.30-P-0651EL Remove/Install Auxiliary Oil Pump For Automatic Transmission
TRANSMISSION 722.9 in MODEL 172, 212, 218





1 Electrical plug connection
1a Electrical connector
2 Screw
3 Oil guide pipe with sealing ring
4 Oil guide pipe with sealing ring
5 Transmission
M42 Electric transmission oil pump

A Intake side
B Thrust side
