AR27.55-P-0600EW Remove/Install Oil Lines of Oil Cooling For Automatic Transmission



AR27.55-P-0600EW Remove/install oil lines of oil cooling for automatic transmission
- Transmission 722.6

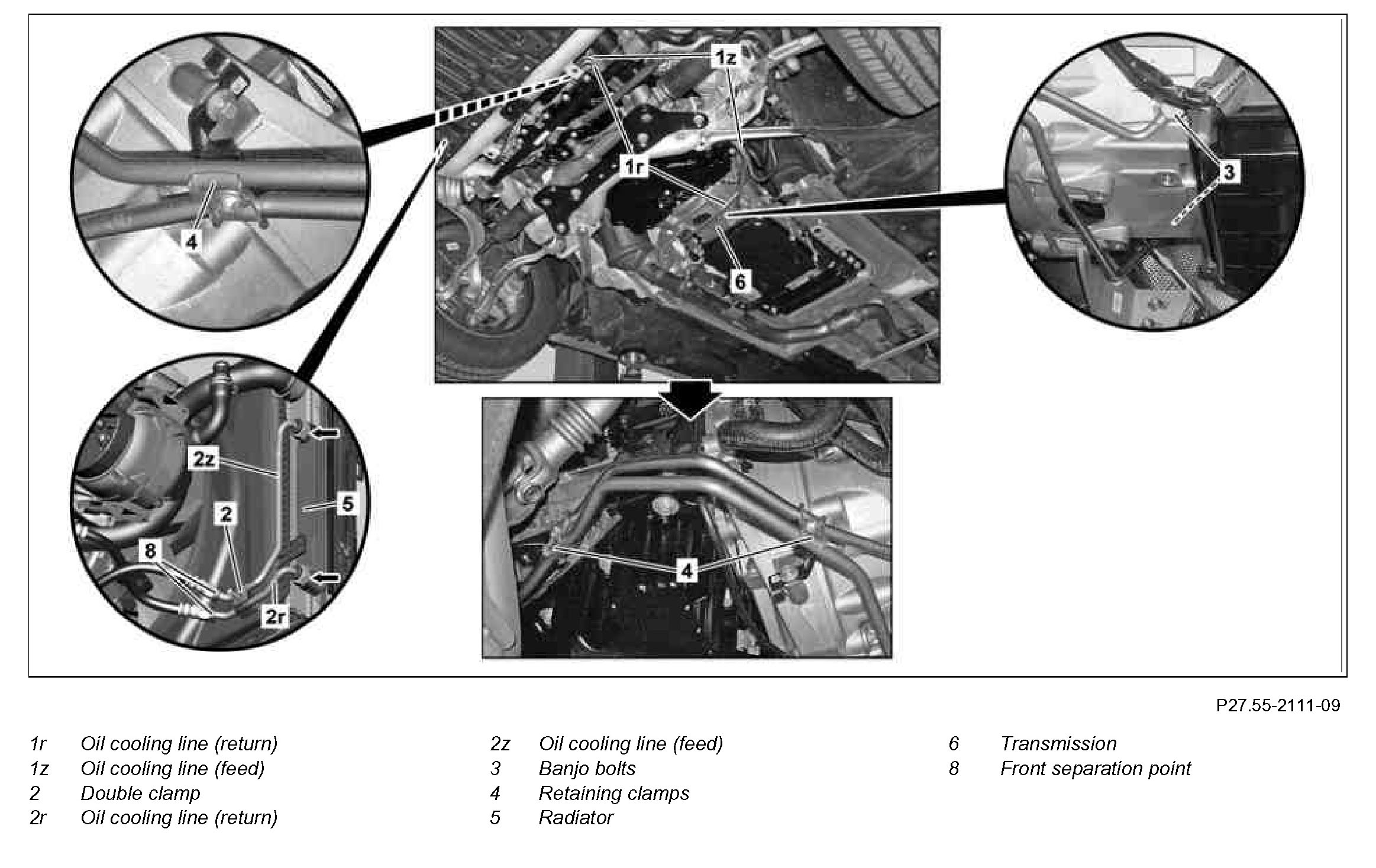

Component Identification:

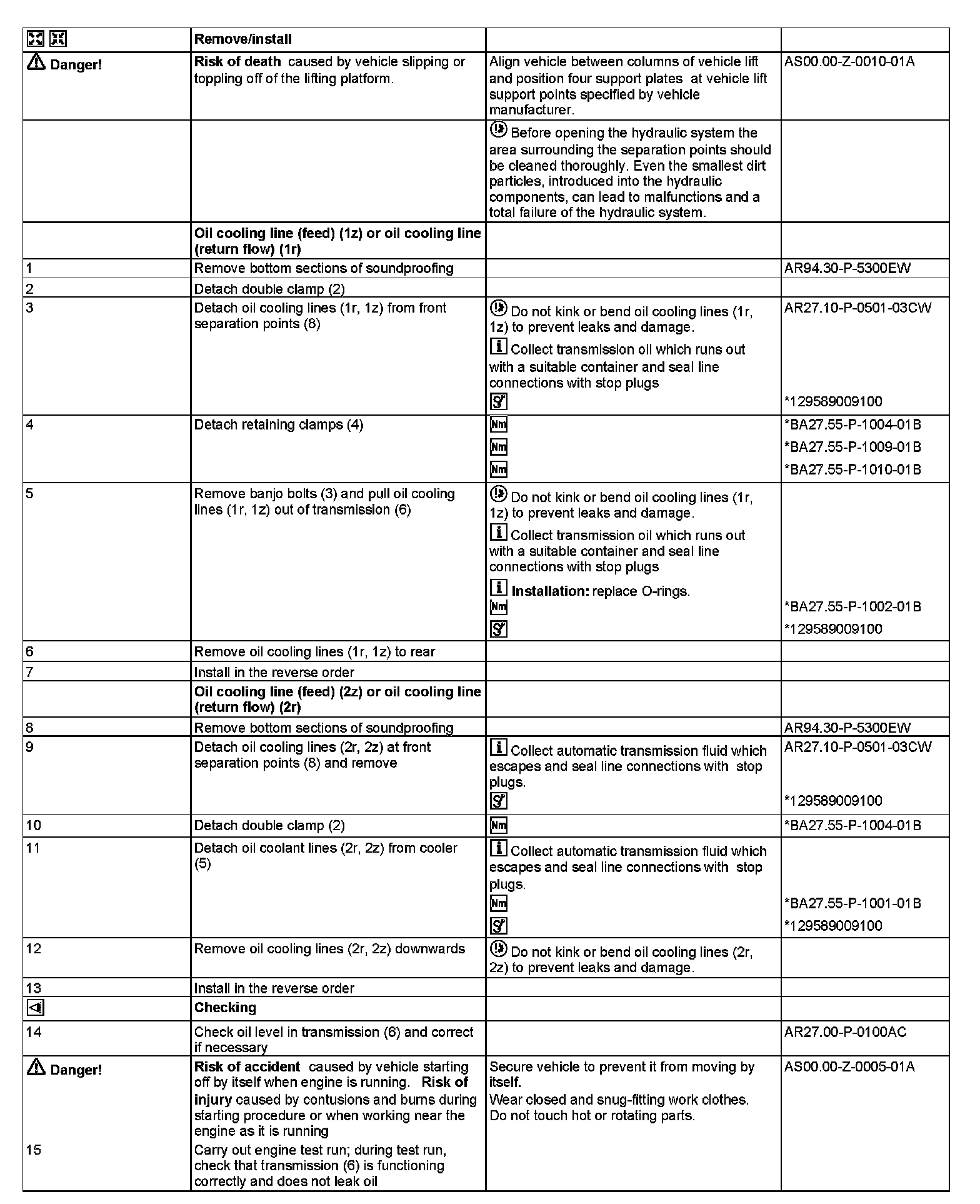

Steps 1-15:

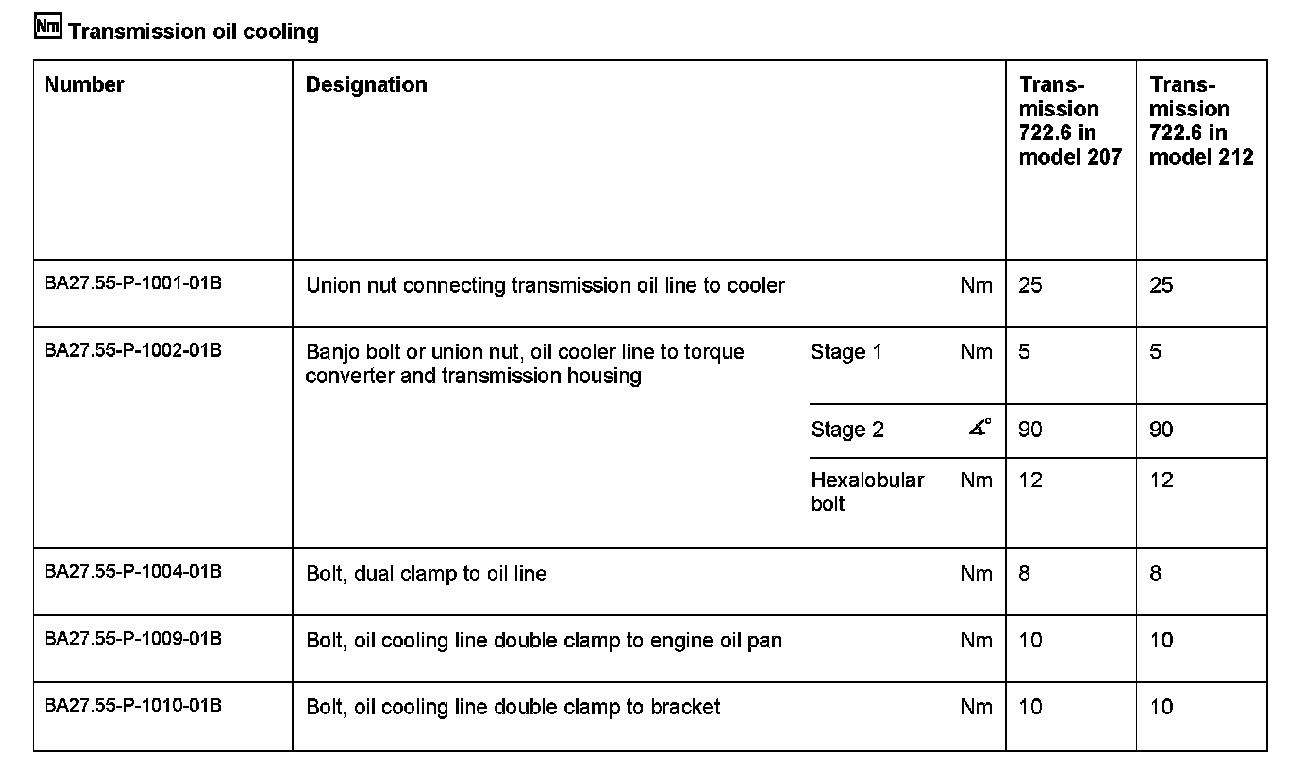

Transmission oil cooling:

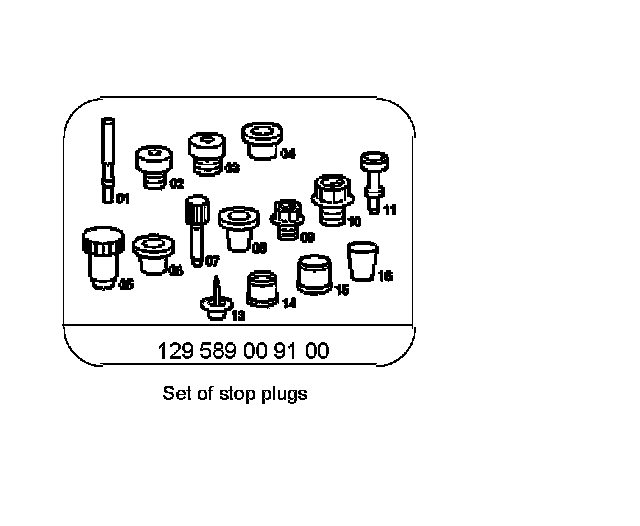

Special Tools:
