AR27.55-P-0600EV Remove/Install Oil Lines of Oil Cooling For Automatic Transmission

AR27.55-P-0600EV Remove/Install Oil Lines of Oil Cooling For Automatic Transmission
TRANSMISSION 722.9 (except 722.96) in MODEL 207
TRANSMISSION 722.9 (except 722.96) in MODEL 212, 218

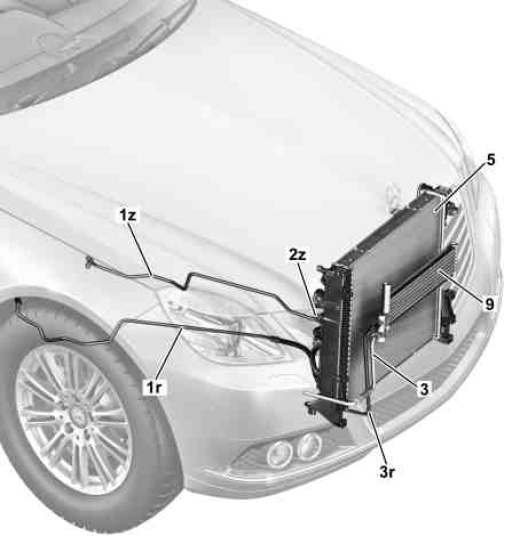

Shown on model 212.072

1r Right oil cooling line (return)
1z Left oil cooling line (supply)
2z Oil cooling line (feed)
3 Intermediate oil cooling line
3r Oil cooling line (return)
5 Radiator
9 Transmission oil cooler

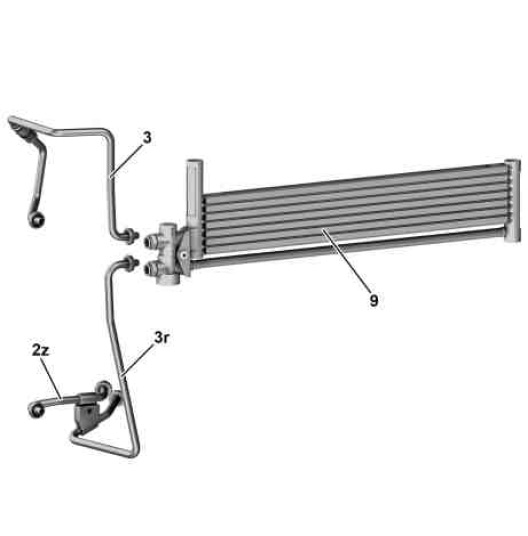

Shown on ENGINE 642

2z Oil cooling line (feed)
3 Intermediate oil cooling line
3r Oil cooling line (return)
9 Transmission oil cooler

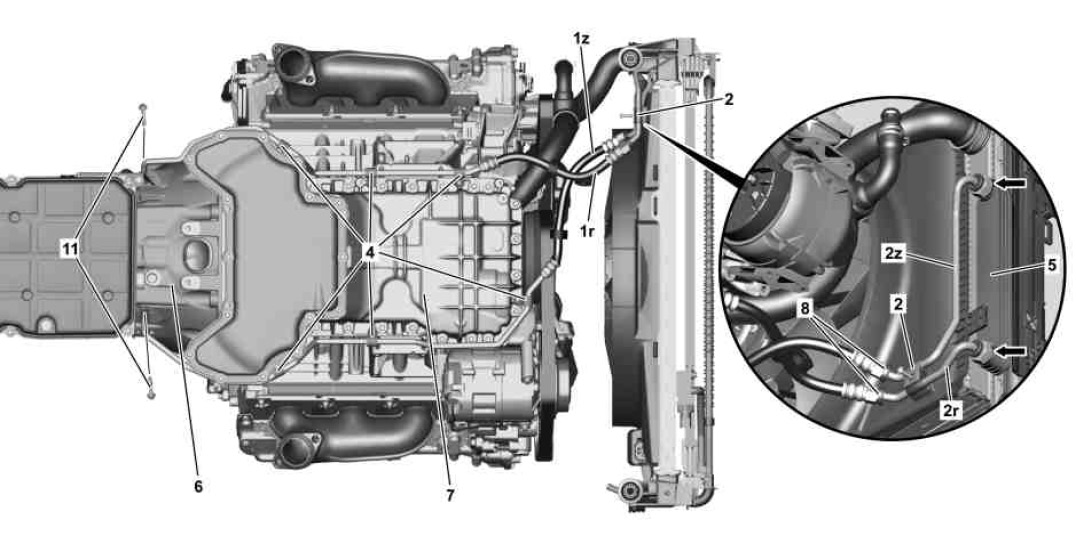

Shows model 212.057

1r Right oil cooling line (return)
1z Left oil cooling line (supply)
2 Double clamp
2r Oil cooling line (return)
2z Oil cooling line (feed)
4 Retaining clamps
5 Radiator
6 Transmission
7 Engine oil pan
8 Front separation point
11 Bolts




















129 589 00 91 00
Set of stop plugs
