AR27.55-P-0600CWX Remove/Install Oil Lines of Oil Cooling For Automatic Transmission

AR27.55-P-0600CWX Remove/Install Oil Lines of Oil Cooling For Automatic Transmission
TRANSMISSION 722.96 in MODEL 204, 207, 212, 218
with 4MATIC

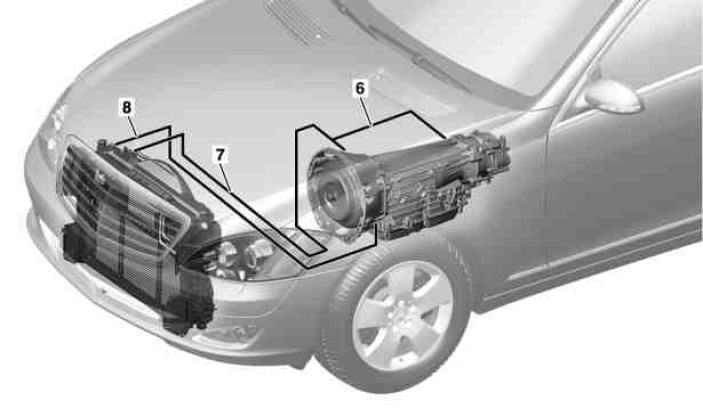

6 Transfer case supply line
7 Right oil cooling line (feed)
8 Left oil cooling line (return)

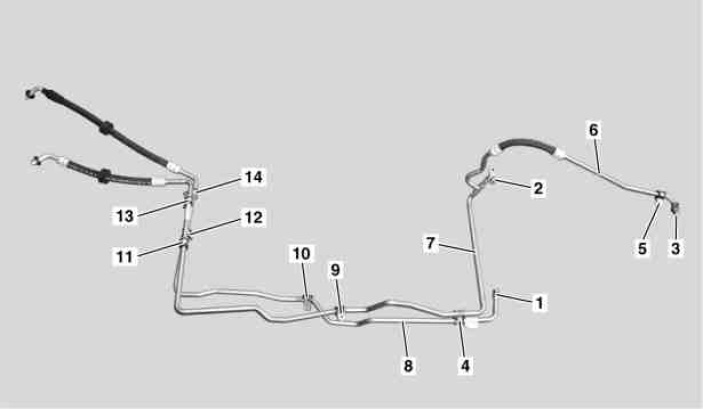

1 Connector (return flow)
2 Connector (supply)
3 Connector (transfer case supply line)
4 Double clamp
5 Retaining clamp
6 Transfer case supply line
7 Right oil cooling line (feed)
8 Left oil cooling line (return)
9-14 Retaining clamp

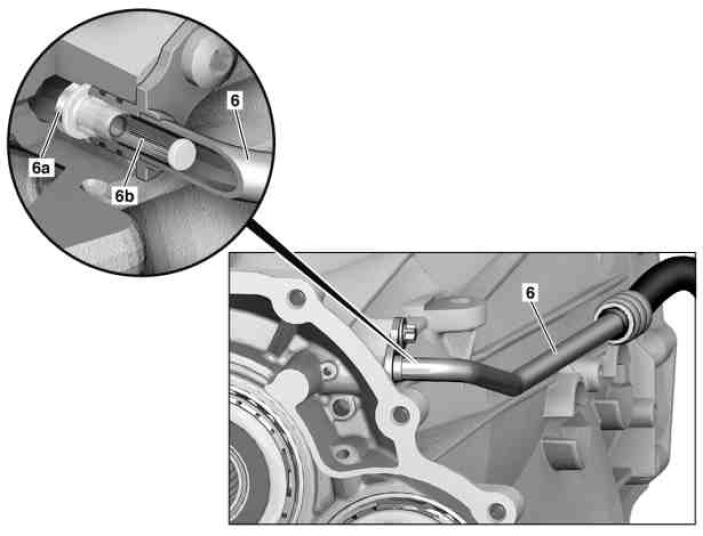

6 Transfer case supply line
6a Throttle
6b Filter cartridge














129 589 00 91 00
Set of stop plugs
