FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2011
>>
E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Suspension Strut / Shock Absorber
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
AR32.25-P-0121CW Checking Shock Absorber
AR32.25-P-0121CW Checking Shock Absorber

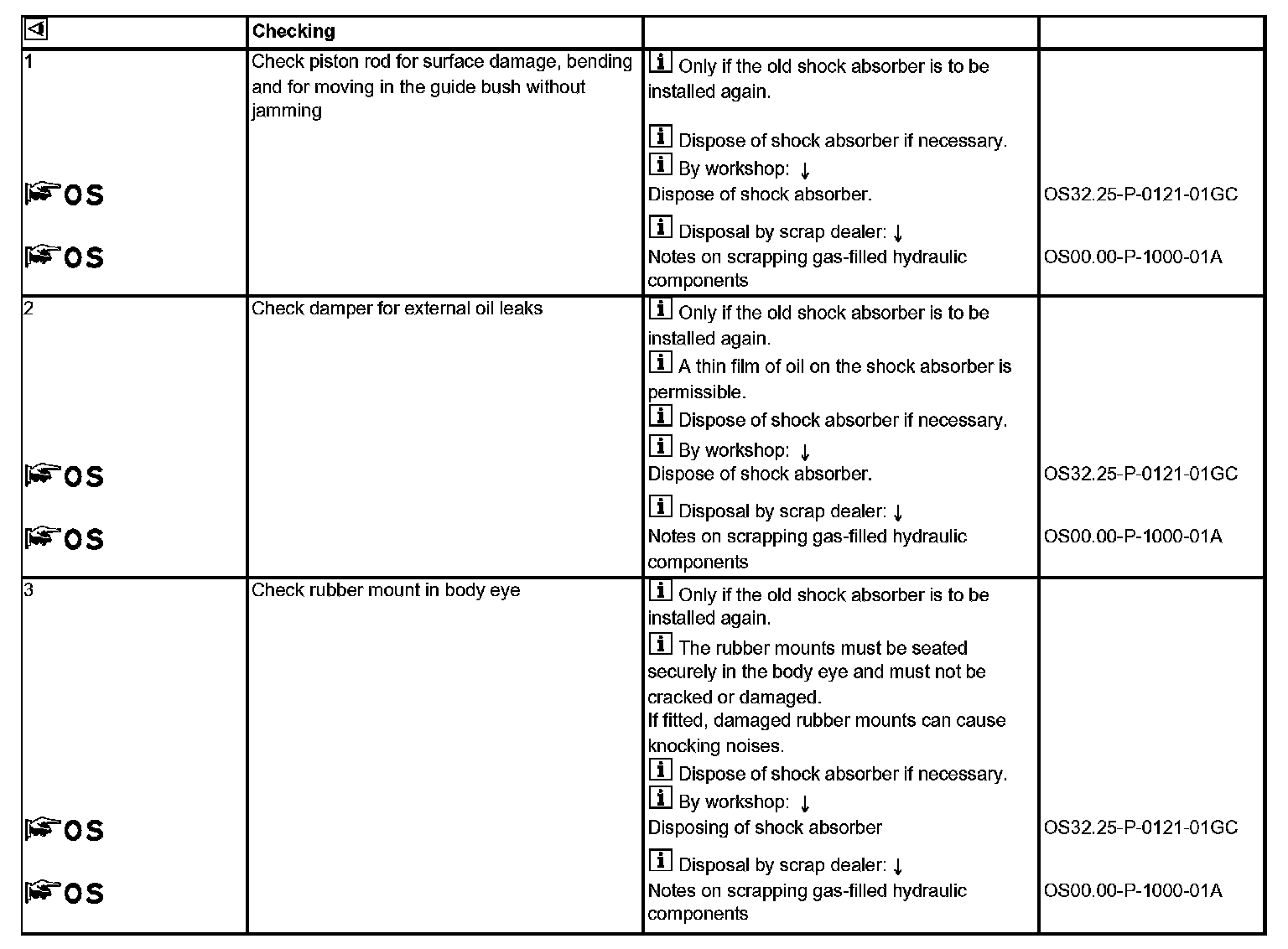

AR32.25-P-0121CW Checking shock absorber
Steps 1-3:
