AR32.25-P-1017EW Remove/Install the Suspension Strut

AR32.25-P-1017EW Remove/install the suspension strut
- except CODE (489) AIRMATIC (air suspension with continuous damper adjustment)

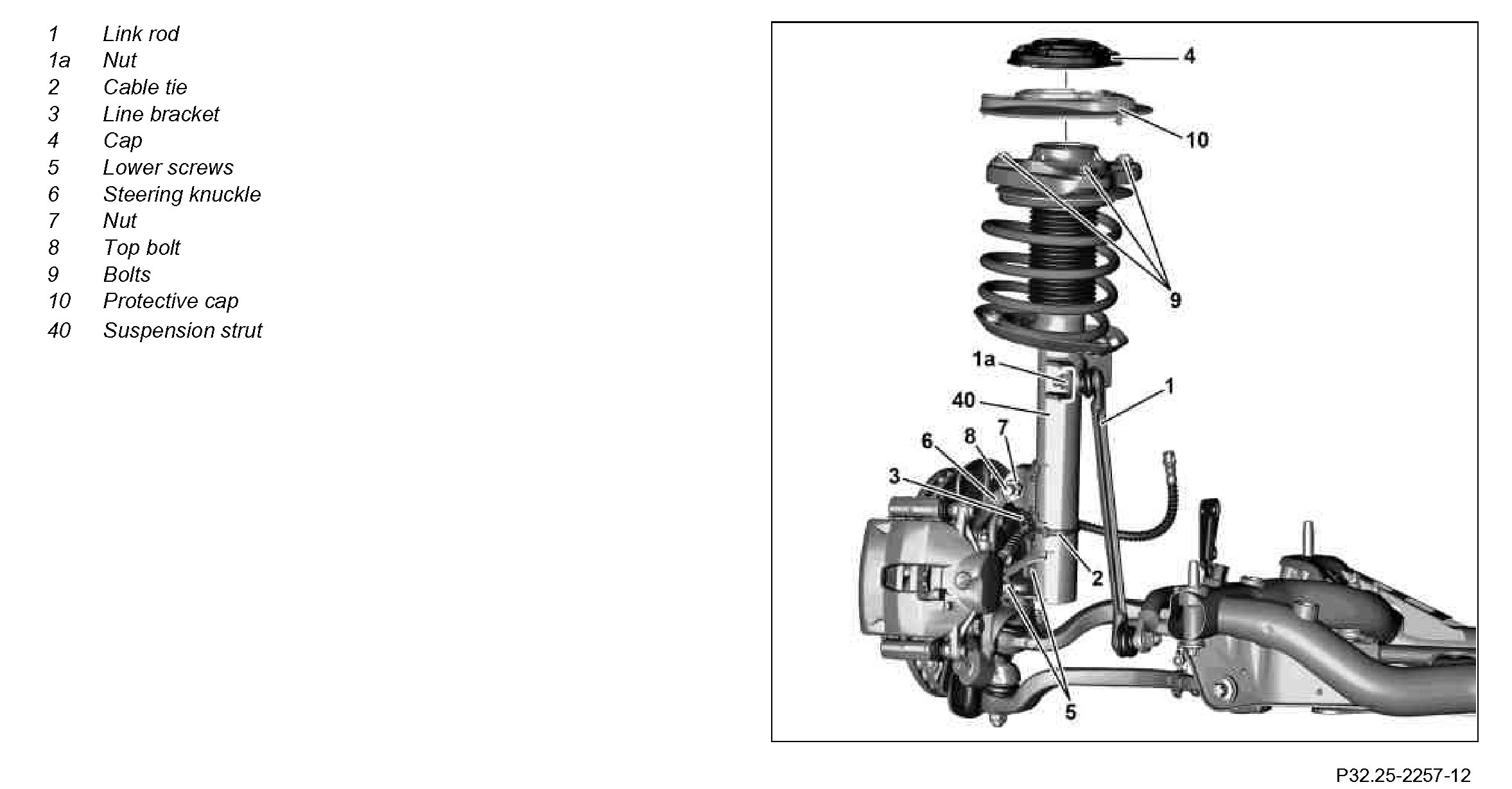

Component Identification:

Component Identification:

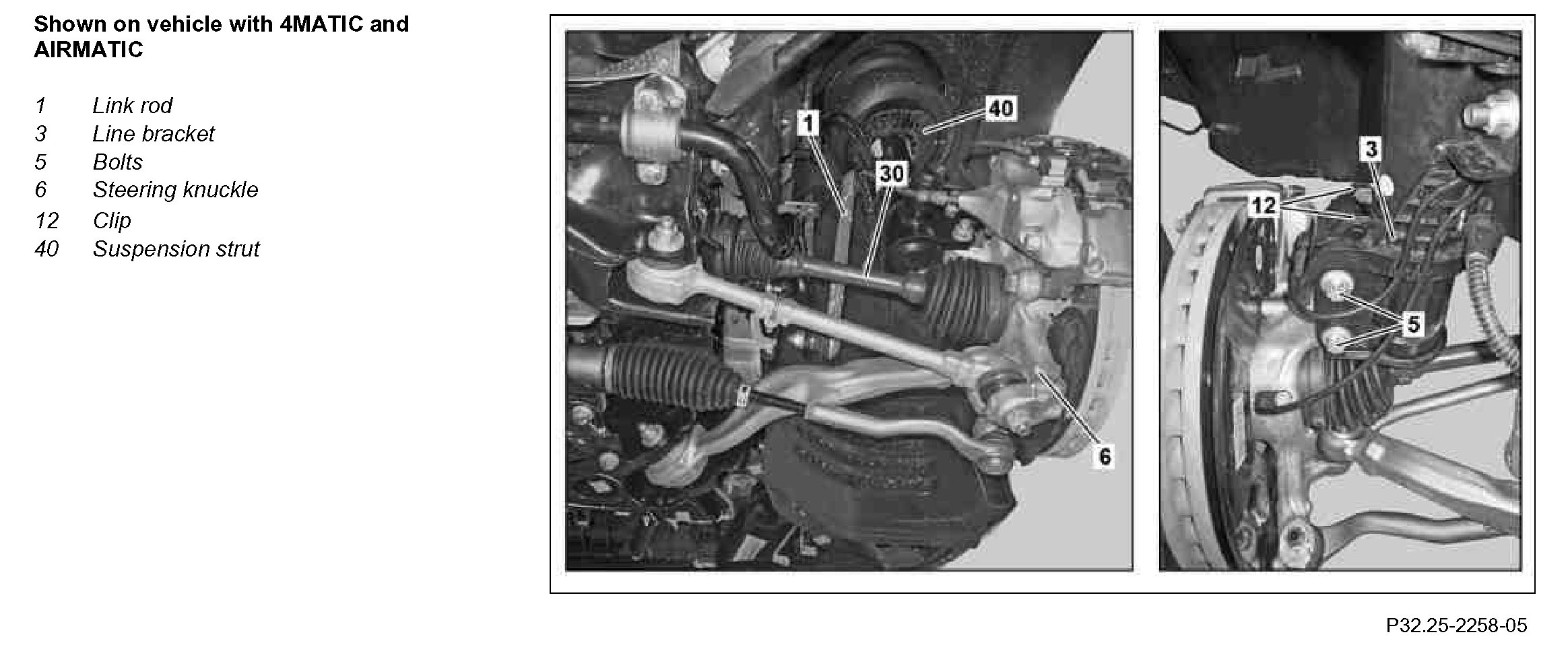

Shown on vehicle with 4MATIC and AIRMATIC

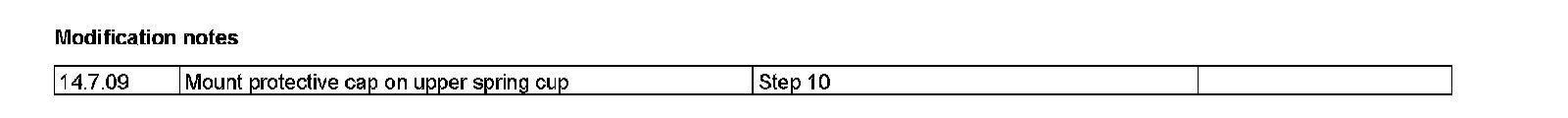

Modification notes:

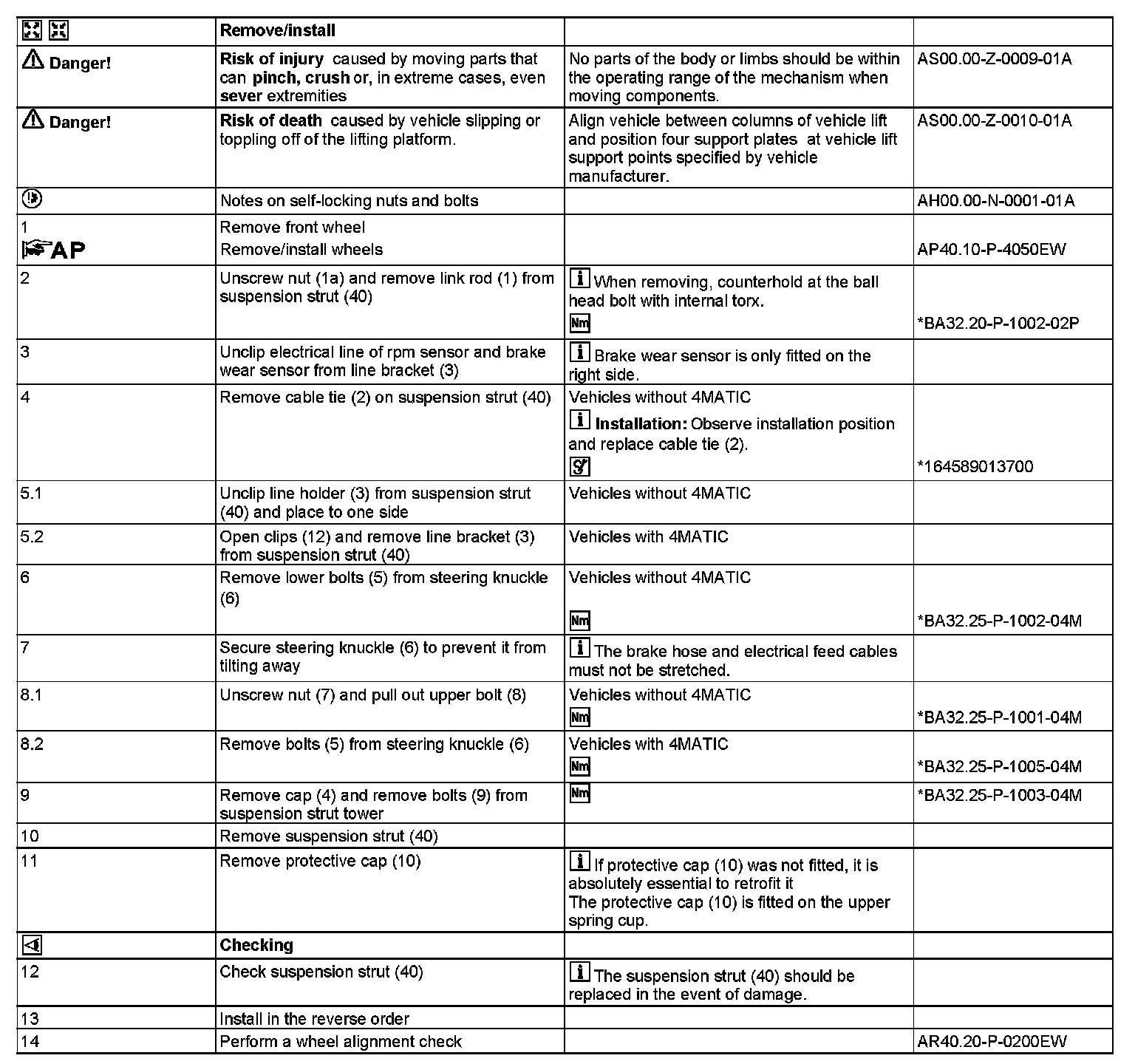

Steps 1-14:

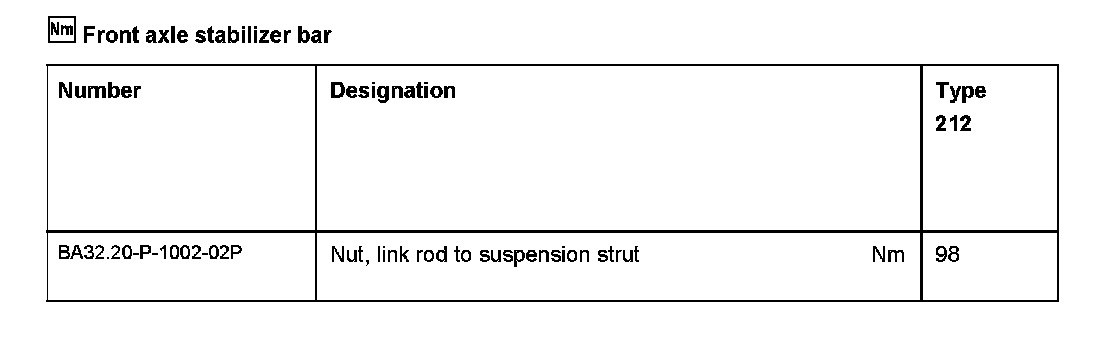

Front axle stabilizer bar:

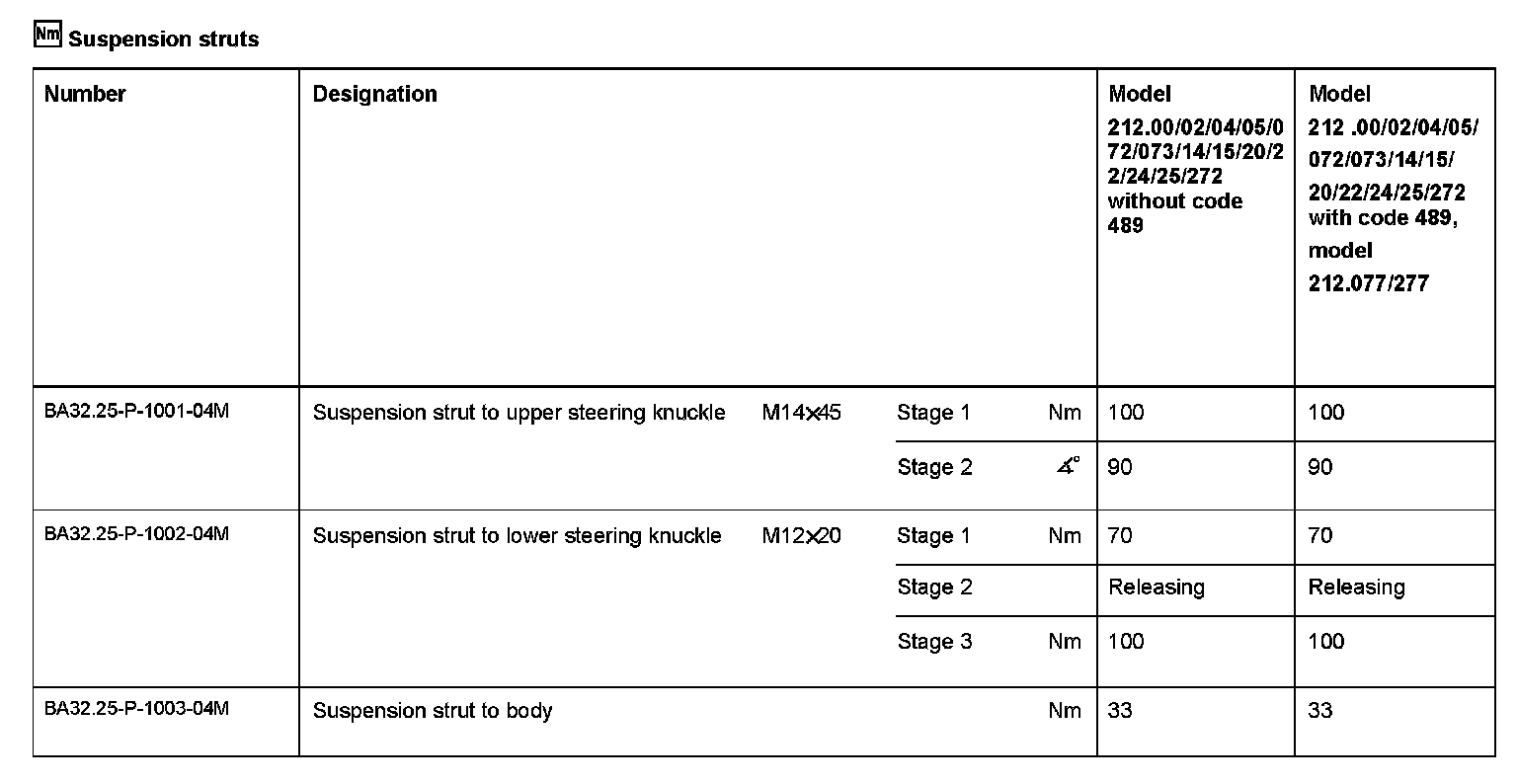

Suspension struts:

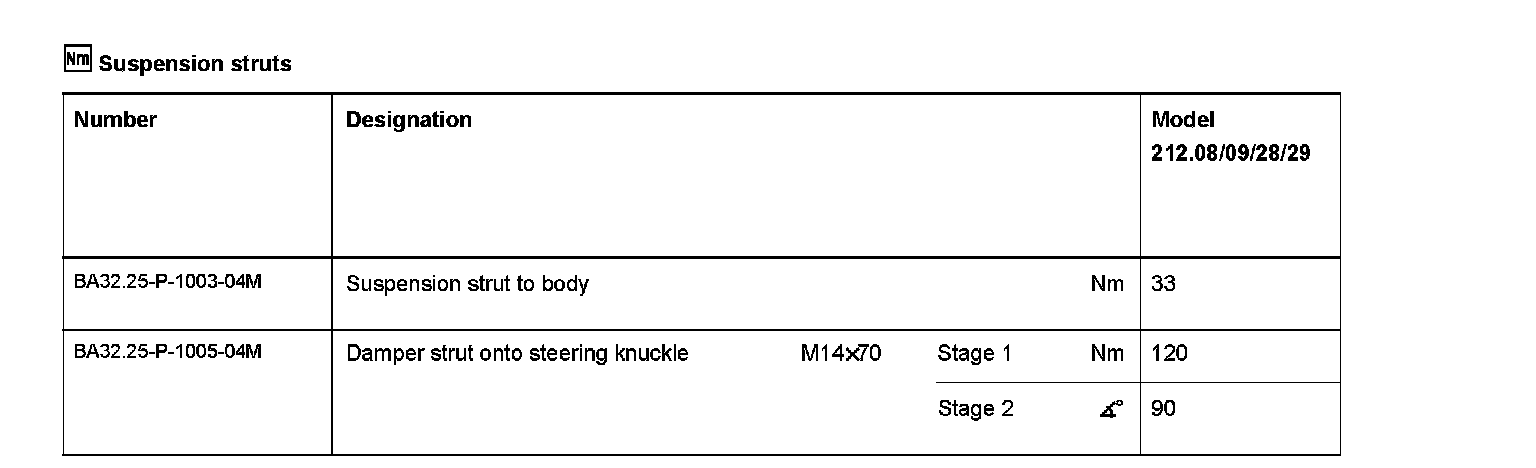

Suspension struts:

Special Tools:
