AR32.25-P-0110EW Remove/Install Rear Shock Absorber



AR32.25-P-0110EW Remove/install rear shock absorber
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
- with CODE (488) Steel/air suspension

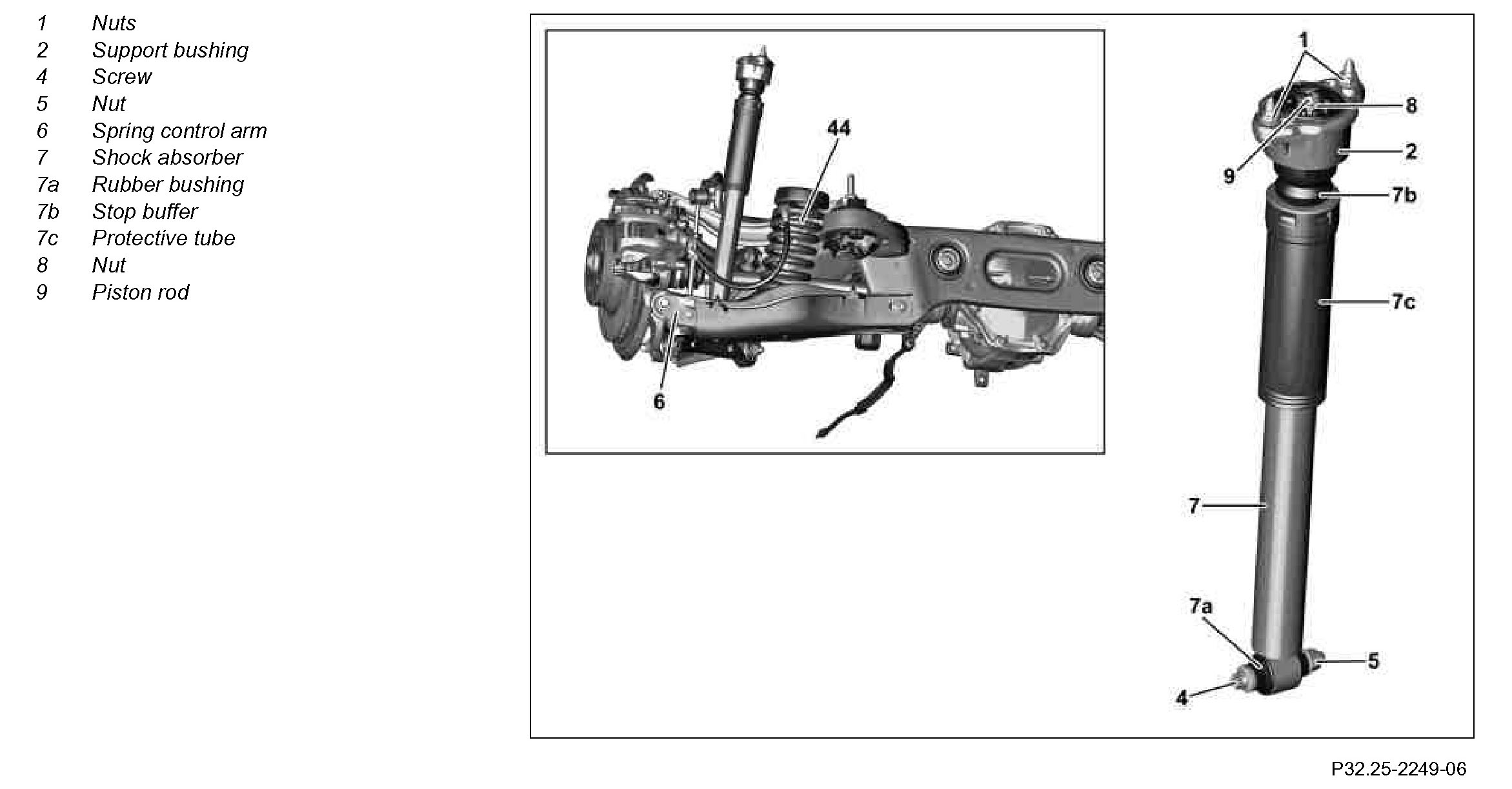

Component Identification:




Component Identification:

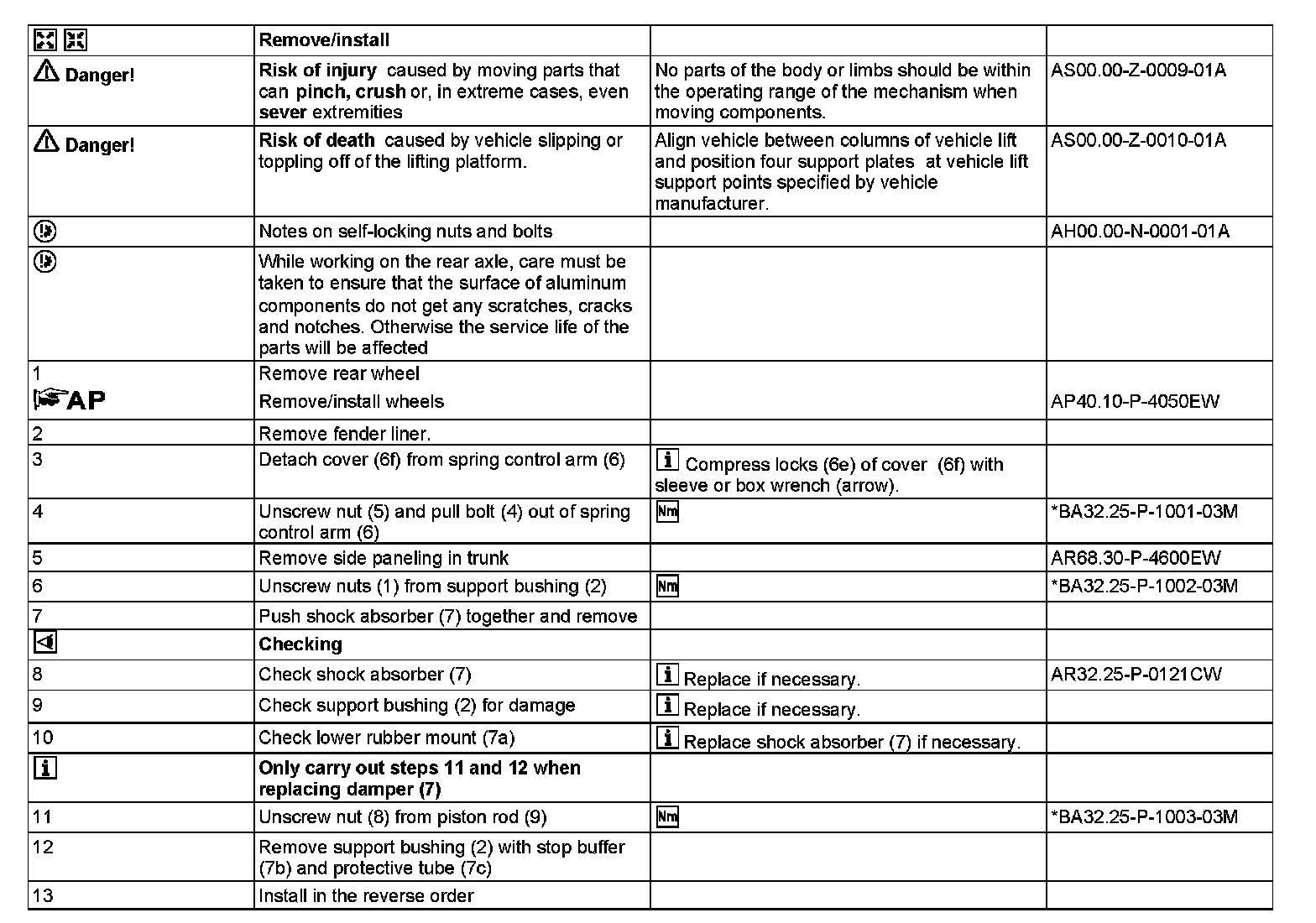

Steps 1-13:

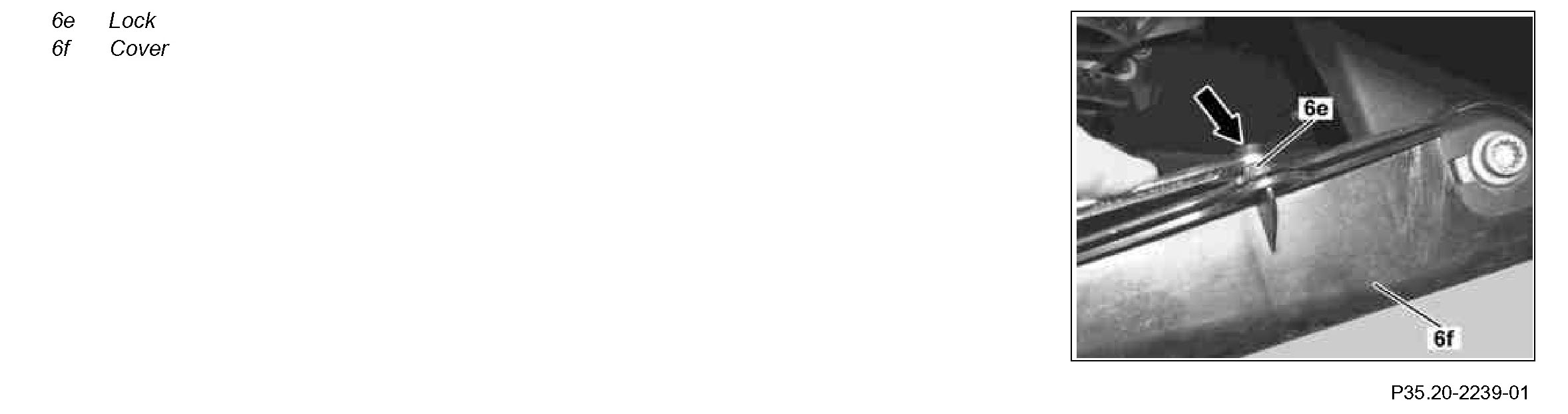

Component Identification:
