FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2011
>>
E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Suspension Strut / Shock Absorber
>>
Service and Repair
>>
Overhaul
Overhaul
AR32.25-P-1018CW Disassemble/assemble
suspension
strut

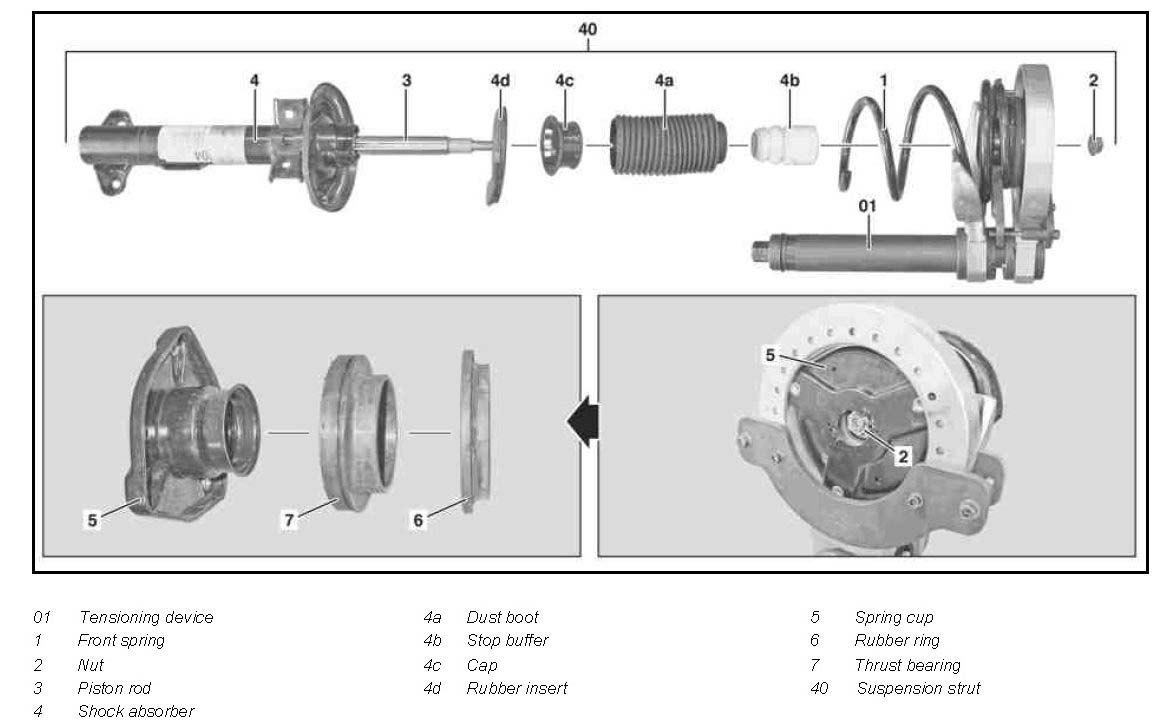

Component Identification:

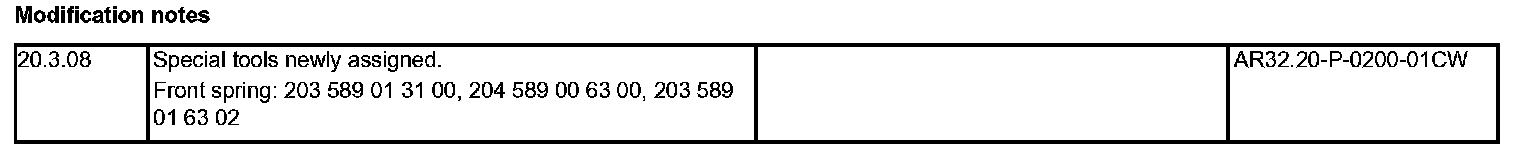

Modification notes:

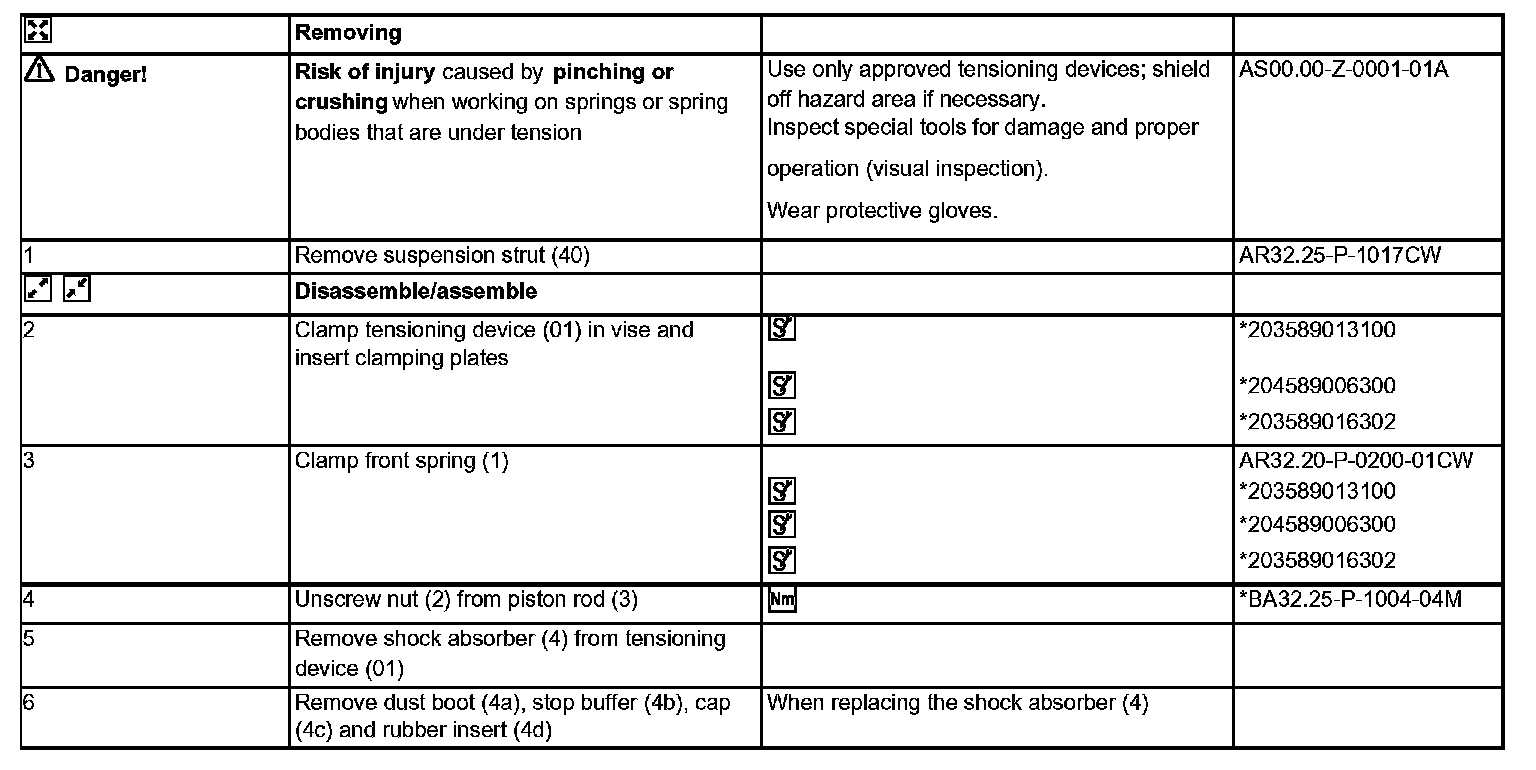

Steps 1-6:

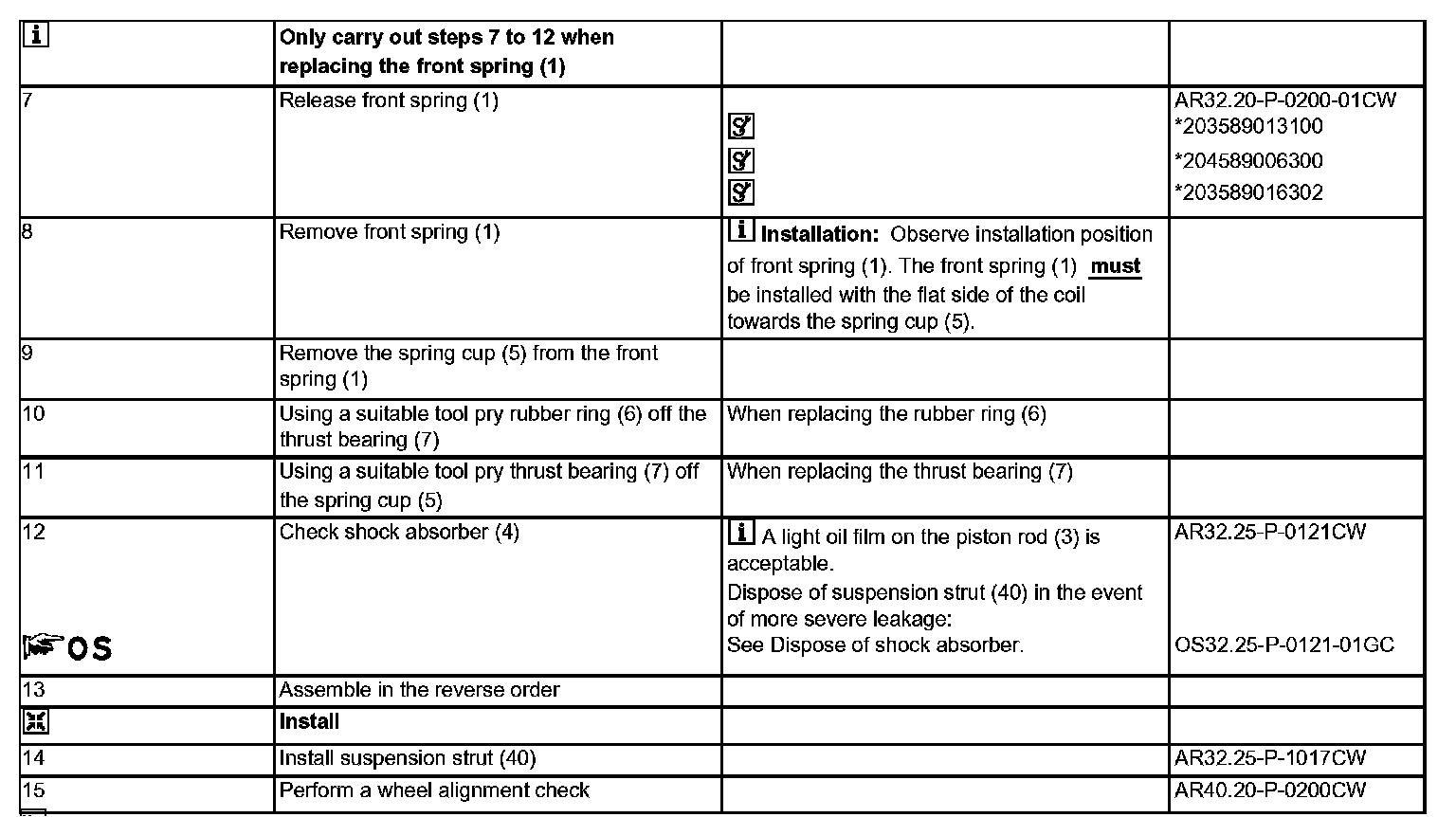

Steps 7-15:

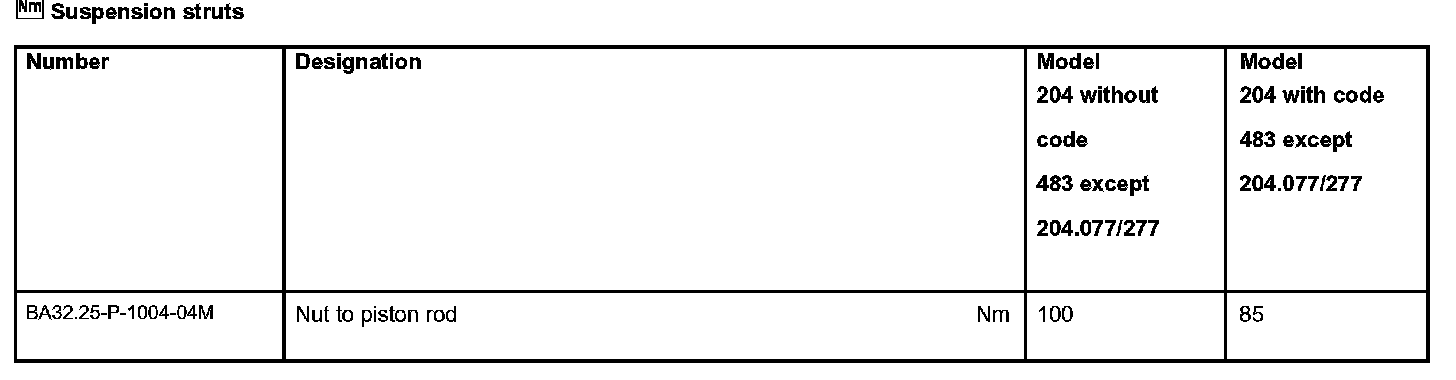

Suspension struts:

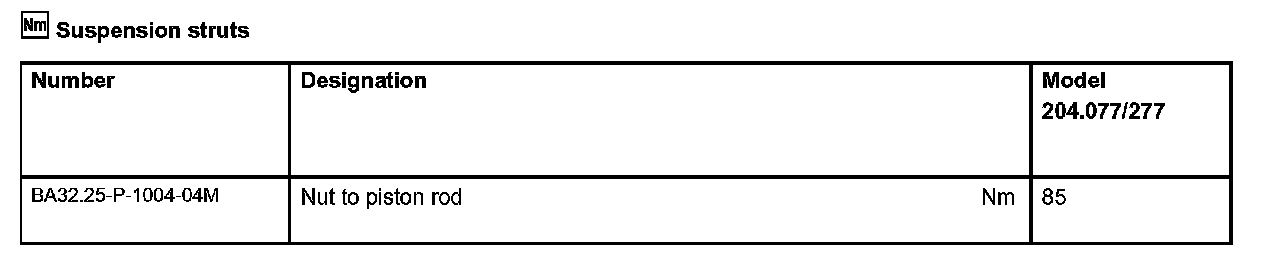

Suspension struts:

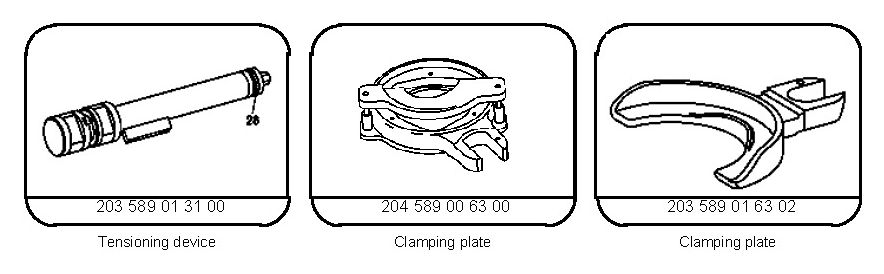

Special Tools:
