Removal and Replacement

AR32.20-P-0230EW Remove/install rear spring
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
- with CODE (488) Steel/air suspension

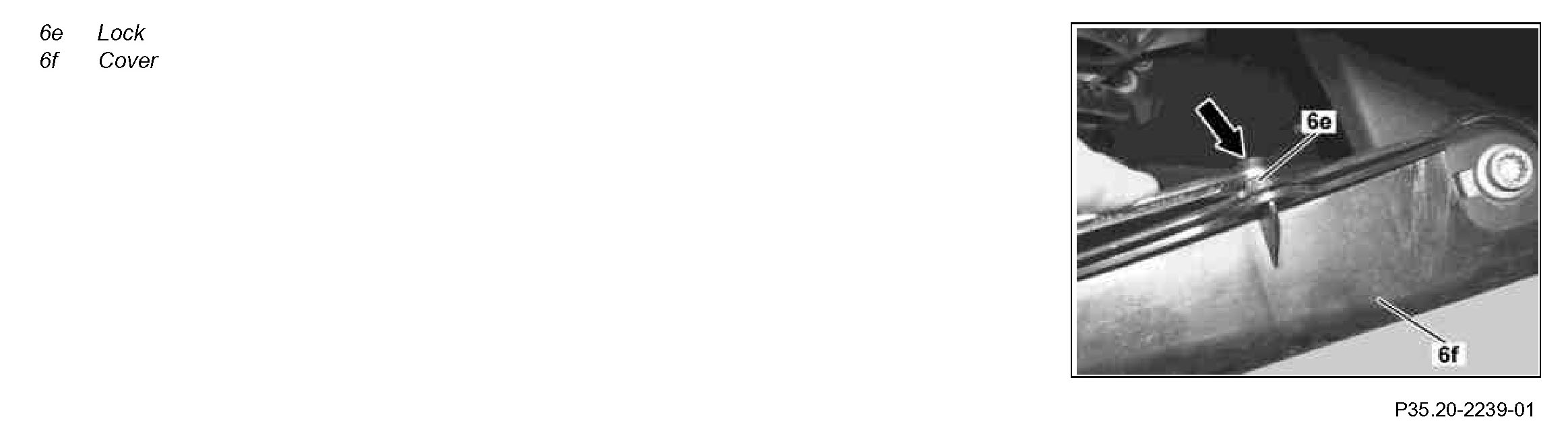

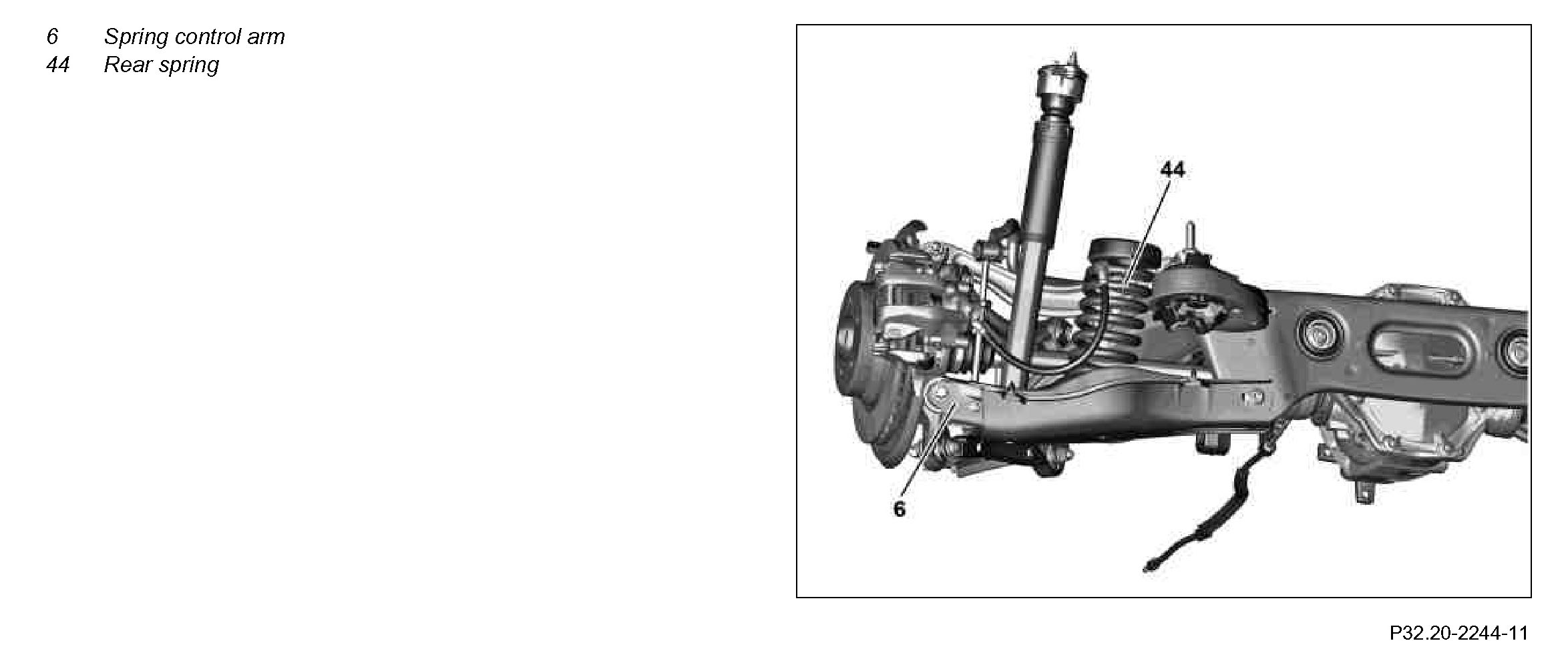

Component Identification:

Component Identification:

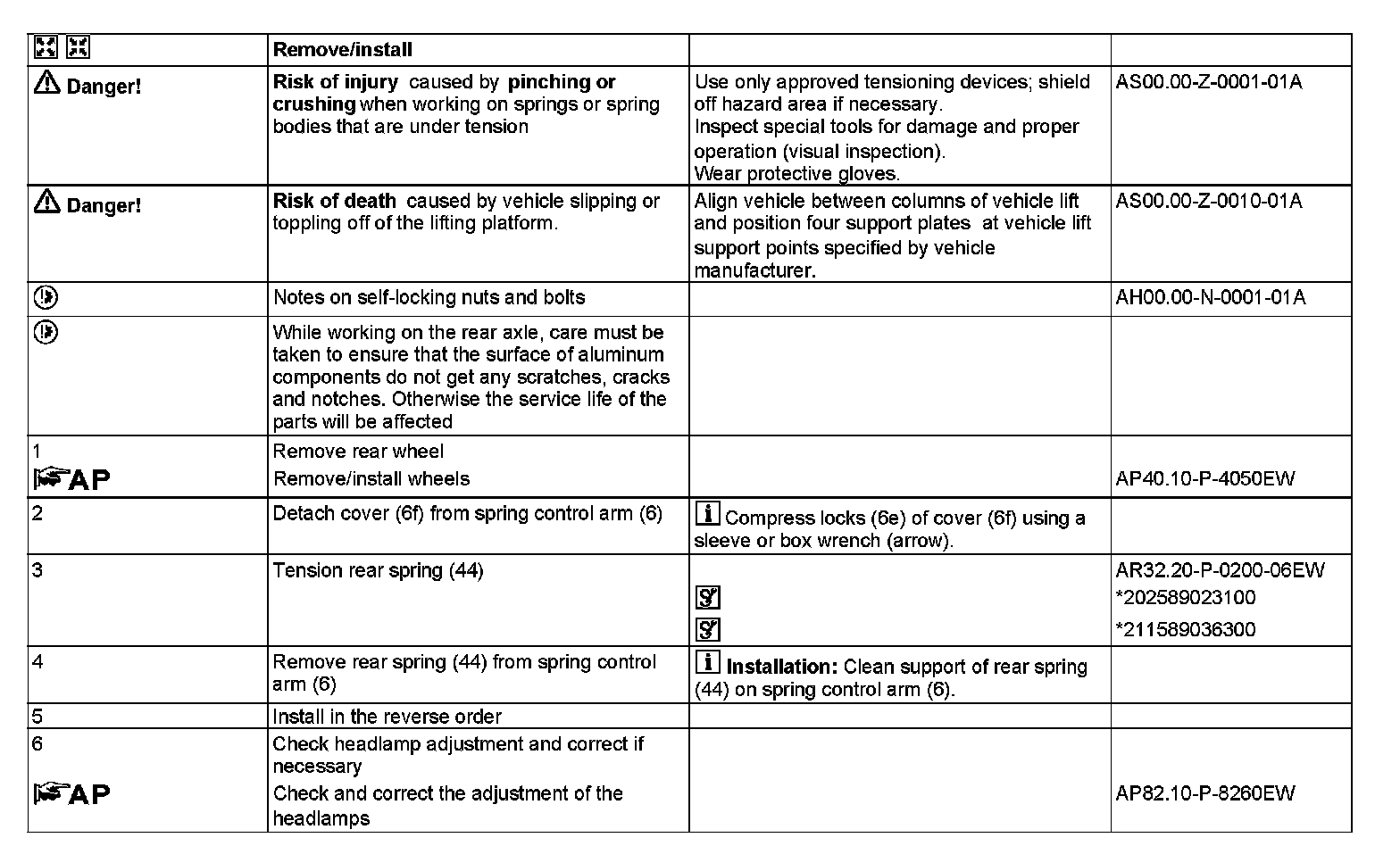

Steps 1-6:

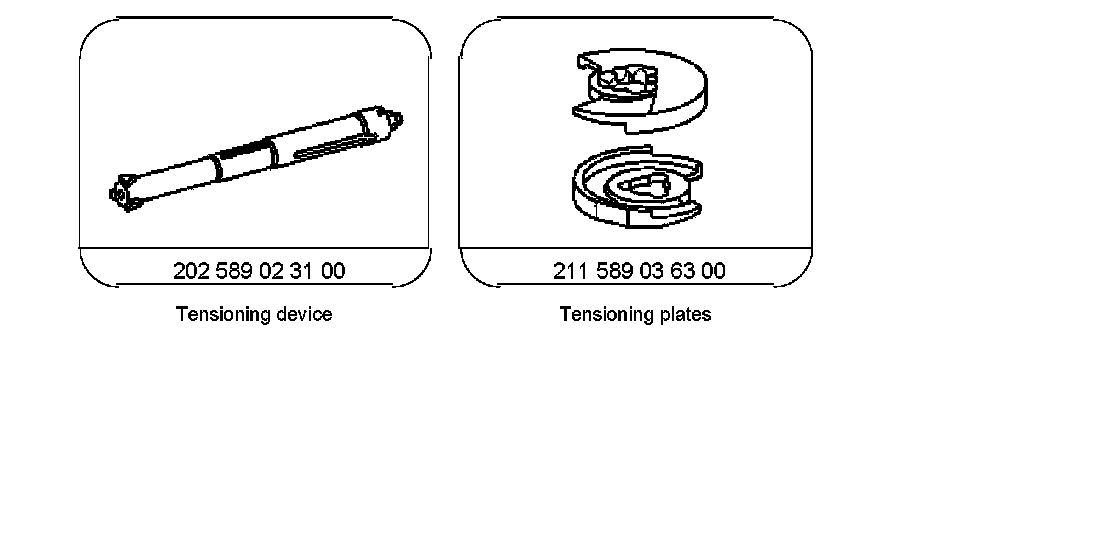

Special Tools:
