AR32.20-P-0200-06EW Clamping Rear Spring

AR32.20-P-0200-06EW Clamping rear spring
- except CODE (489) AIRMATIC (air suspension with continuous damper adjustment)


Danger!
Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension

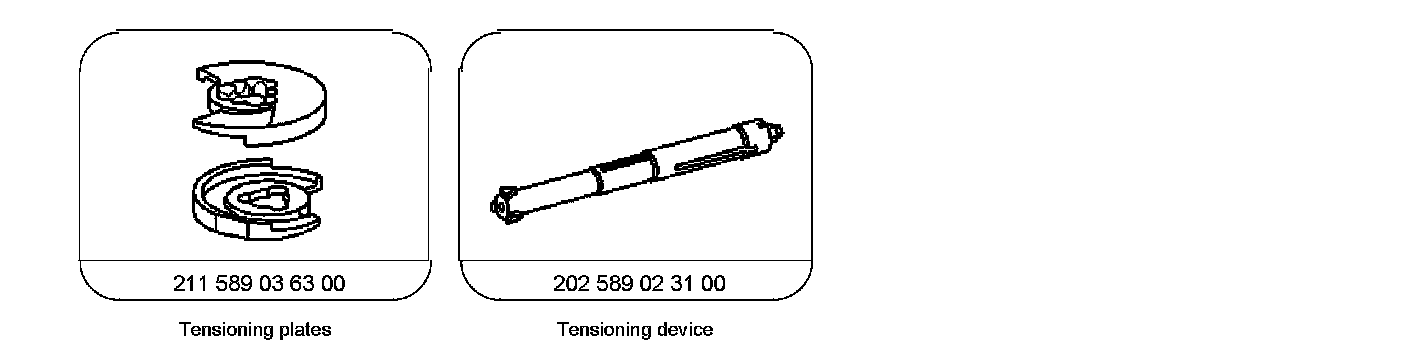

Special Tools:

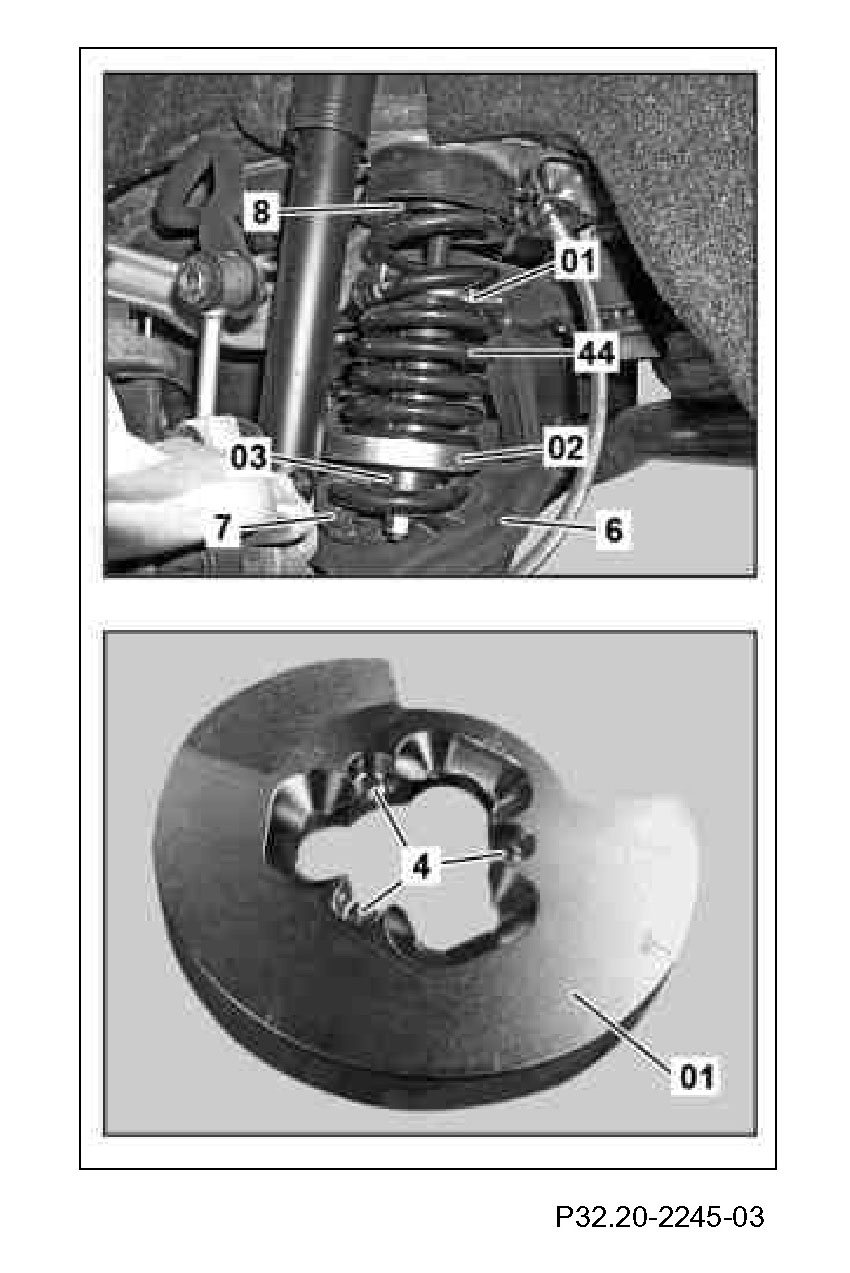

Component Identification:

Installation: When inserting the rear spring (44) ensure that the metal plate (7) and rubber ring (8) seat correctly.

1 Insert upper clamping plate (01) and lower clamping plate (02) in the rear spring (44).

Insert clamping plates (01, 02) so that as many spring coils as possible are pre-compressed.

2 Insert tensioning device (03) from below through the spring control arm (6) into the clamping plates (01, 02) and engage in the recesses (4) of the upper clamping plate (01).
3 Tension rear spring (44).

Do not use any impact wrench/driver, otherwise the tensioning device (03) will be damaged.

4 Mark position of the clamping plates (01, 02) relative to the rear spring (44) using oil chalk.
5 Release the rear spring (44).

When replacing: Transfer the markings to the new rear spring (44).
