Ride Control Solenoid Valve: Service and Repair



AR32.22-P-2015EW Remove/install air suspension valve unit
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
- with CODE (488) Steel/air suspension

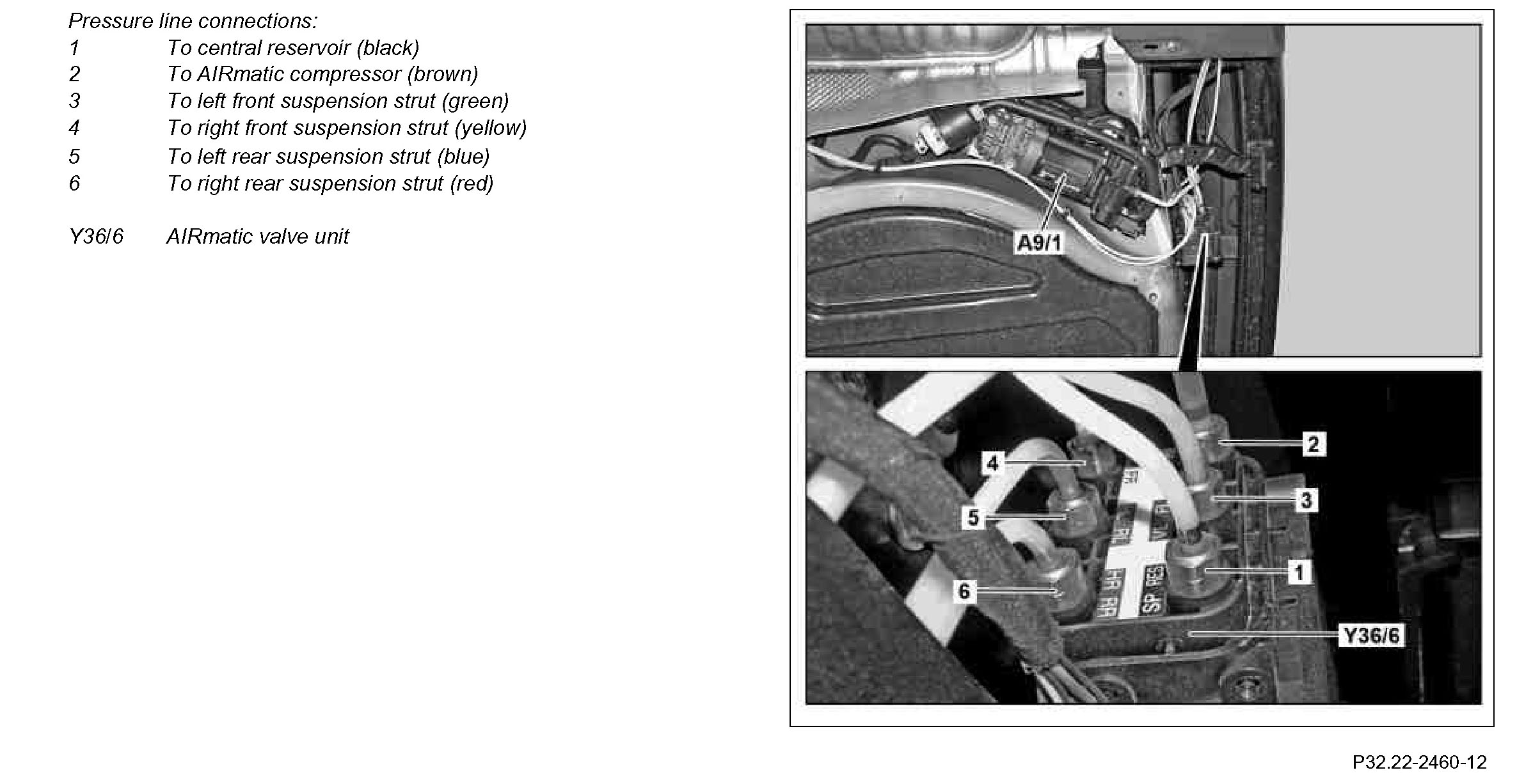

Component Identification:

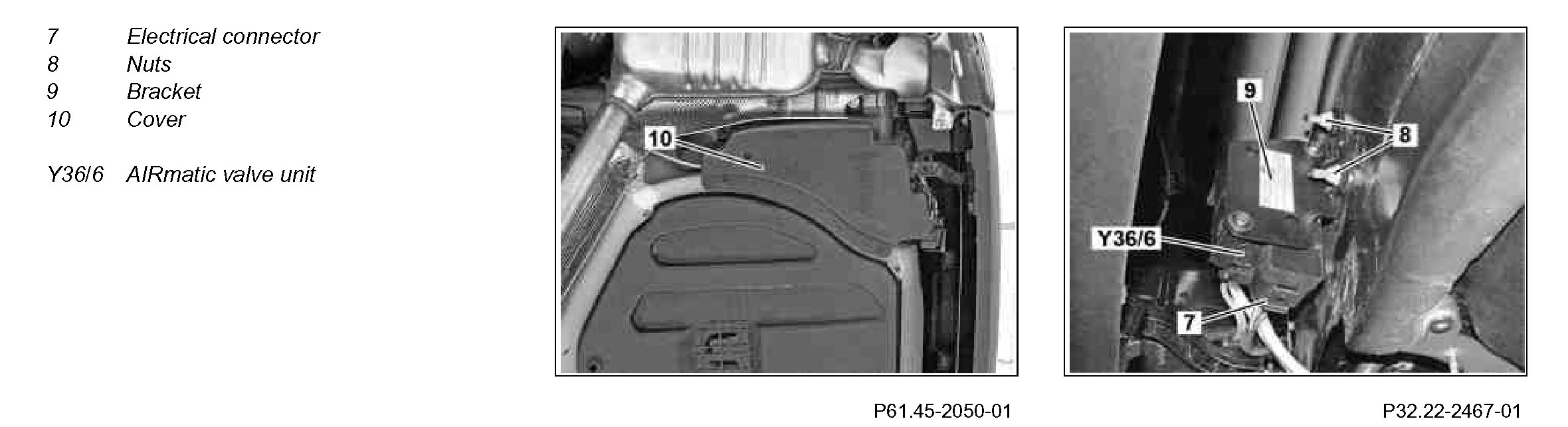

Component Identification:

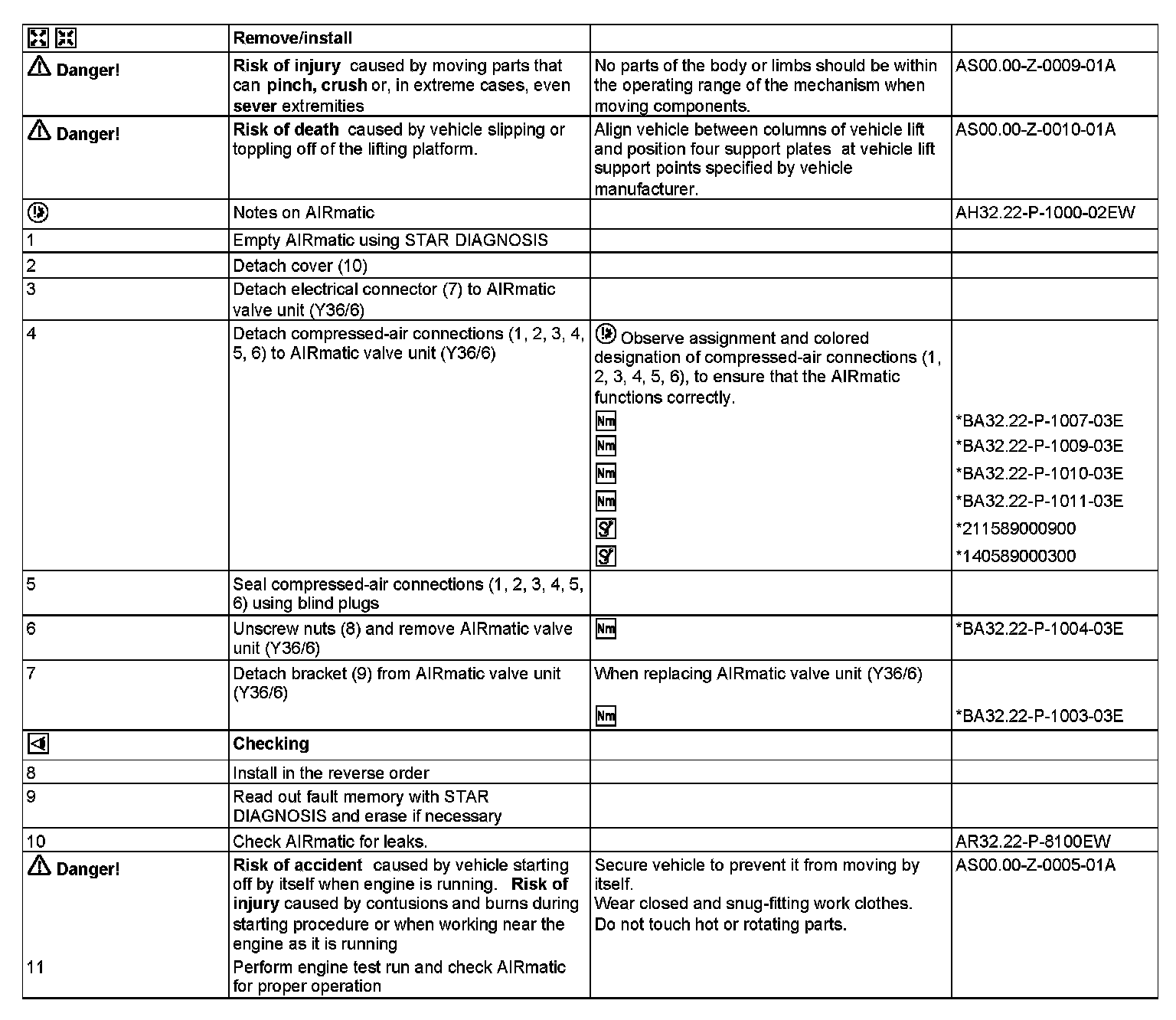

Steps 1-11:

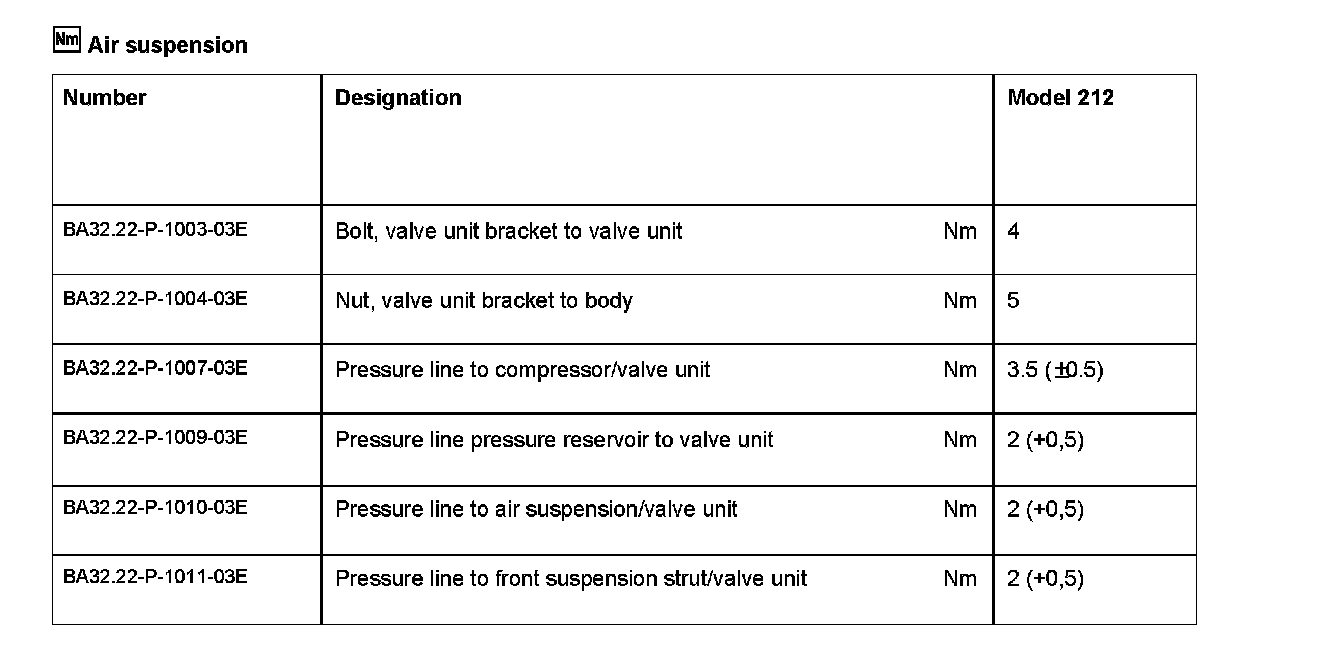

Air suspension:

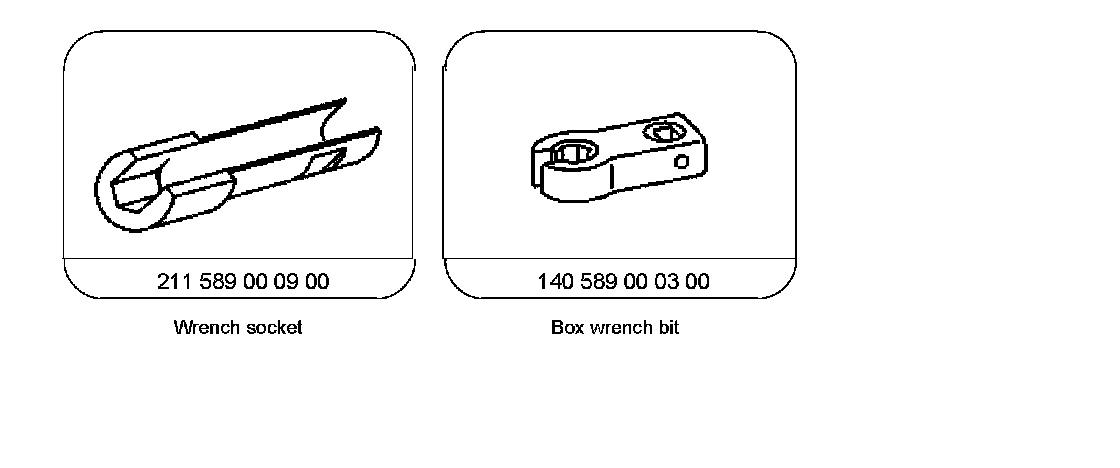

Special Tools:
