Electrical Diagrams

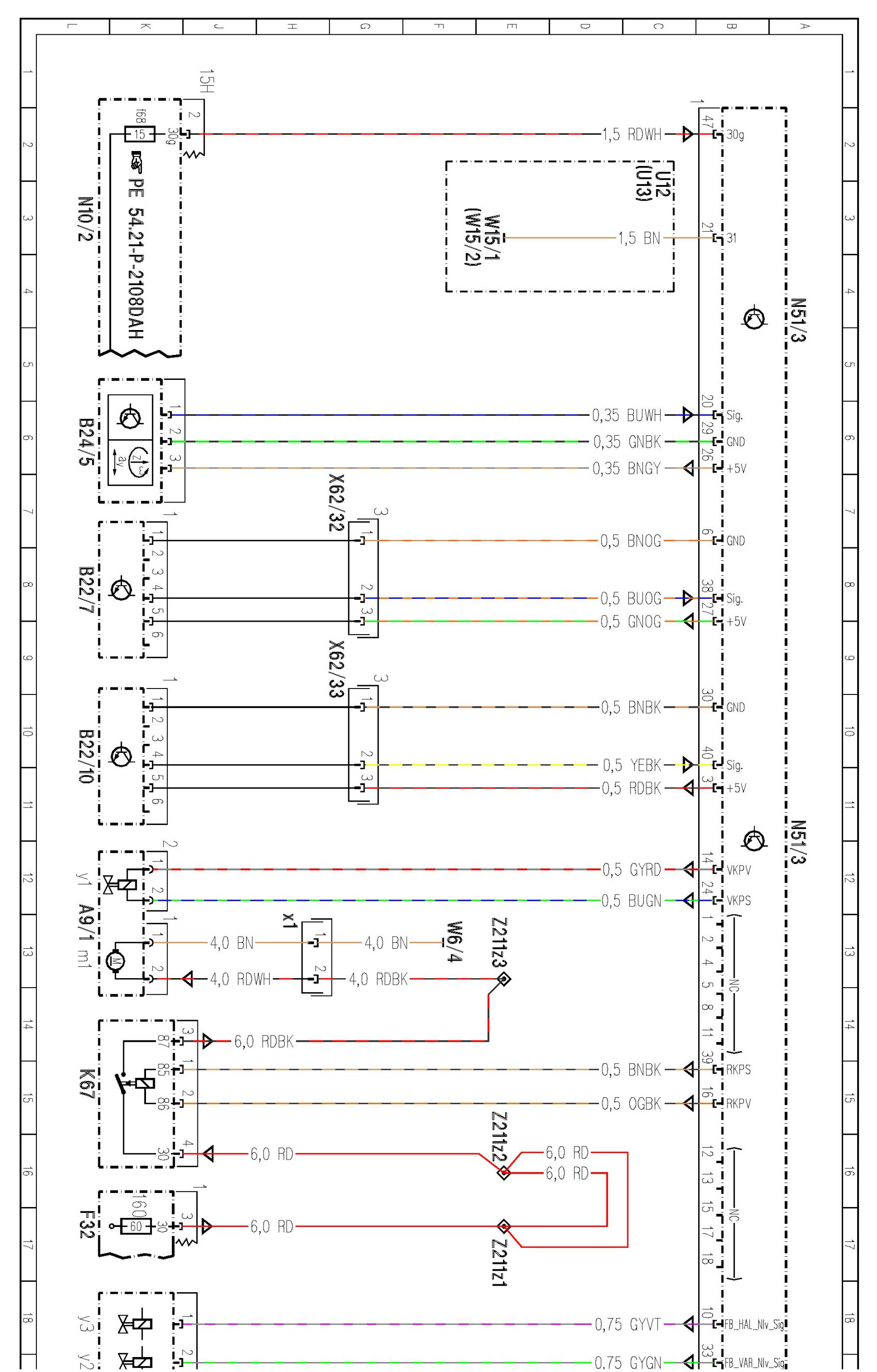

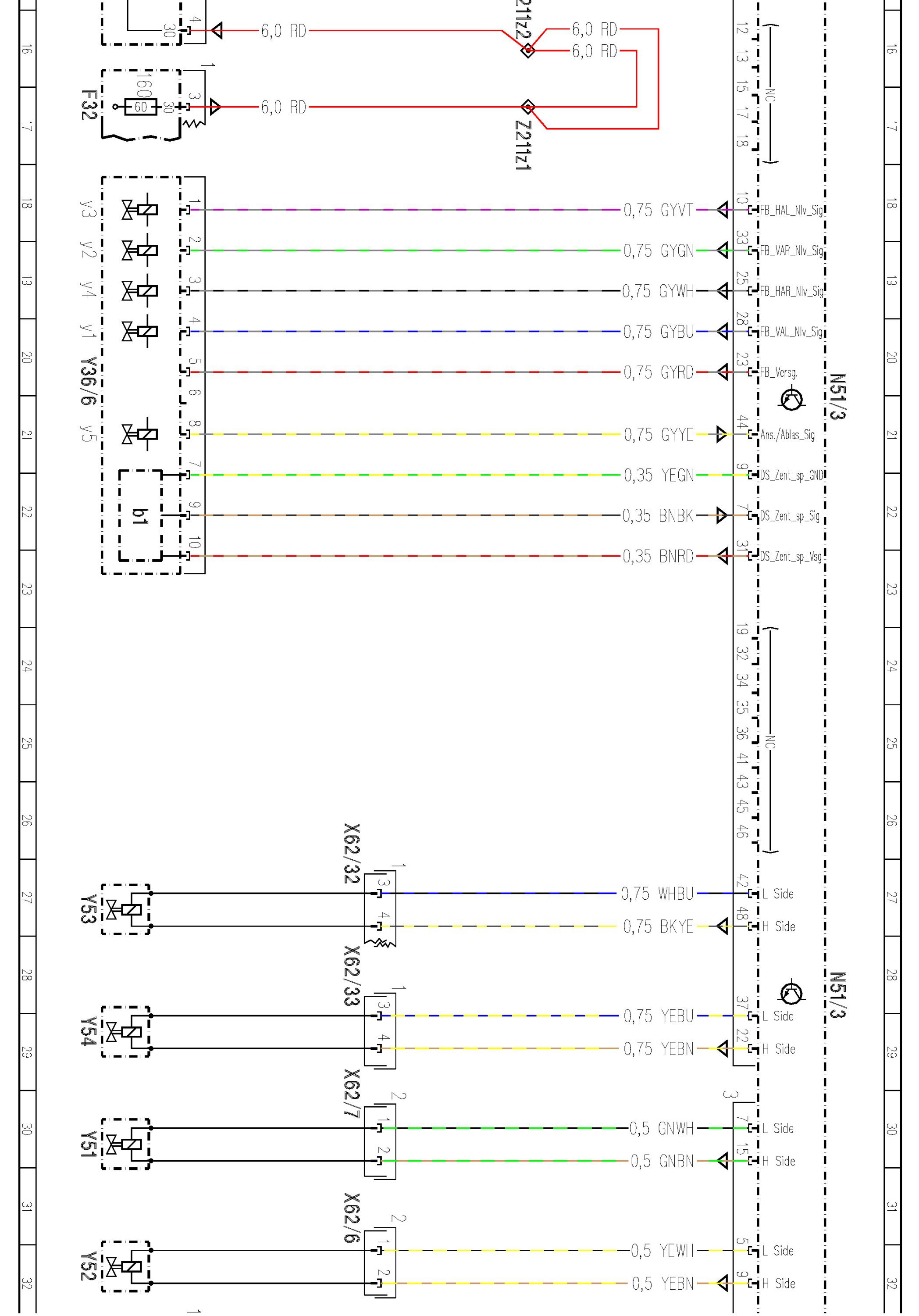

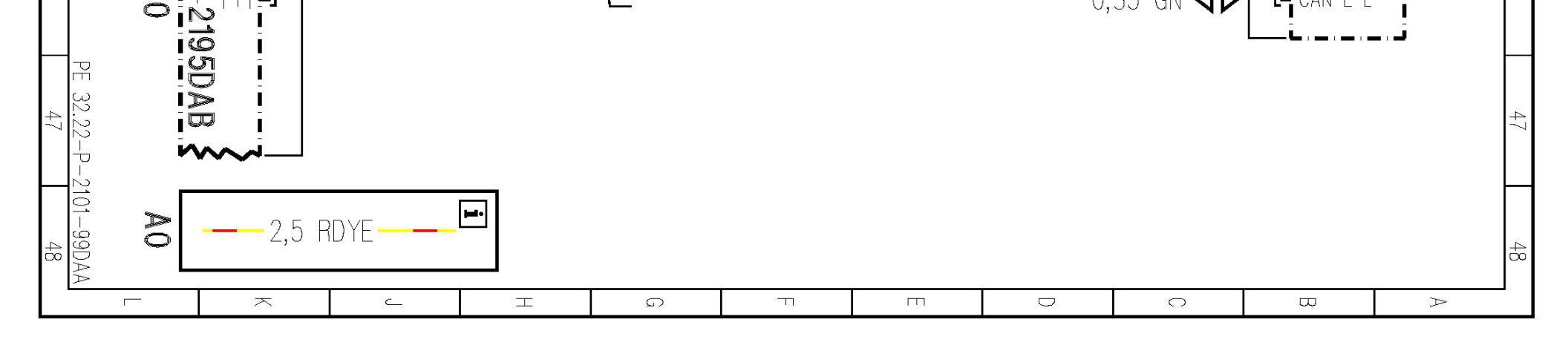

PE32.22-P-2101DAA AIRmatic Control Unit
MODEL 212 / (except 212.074 /274 /077 /277)
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)

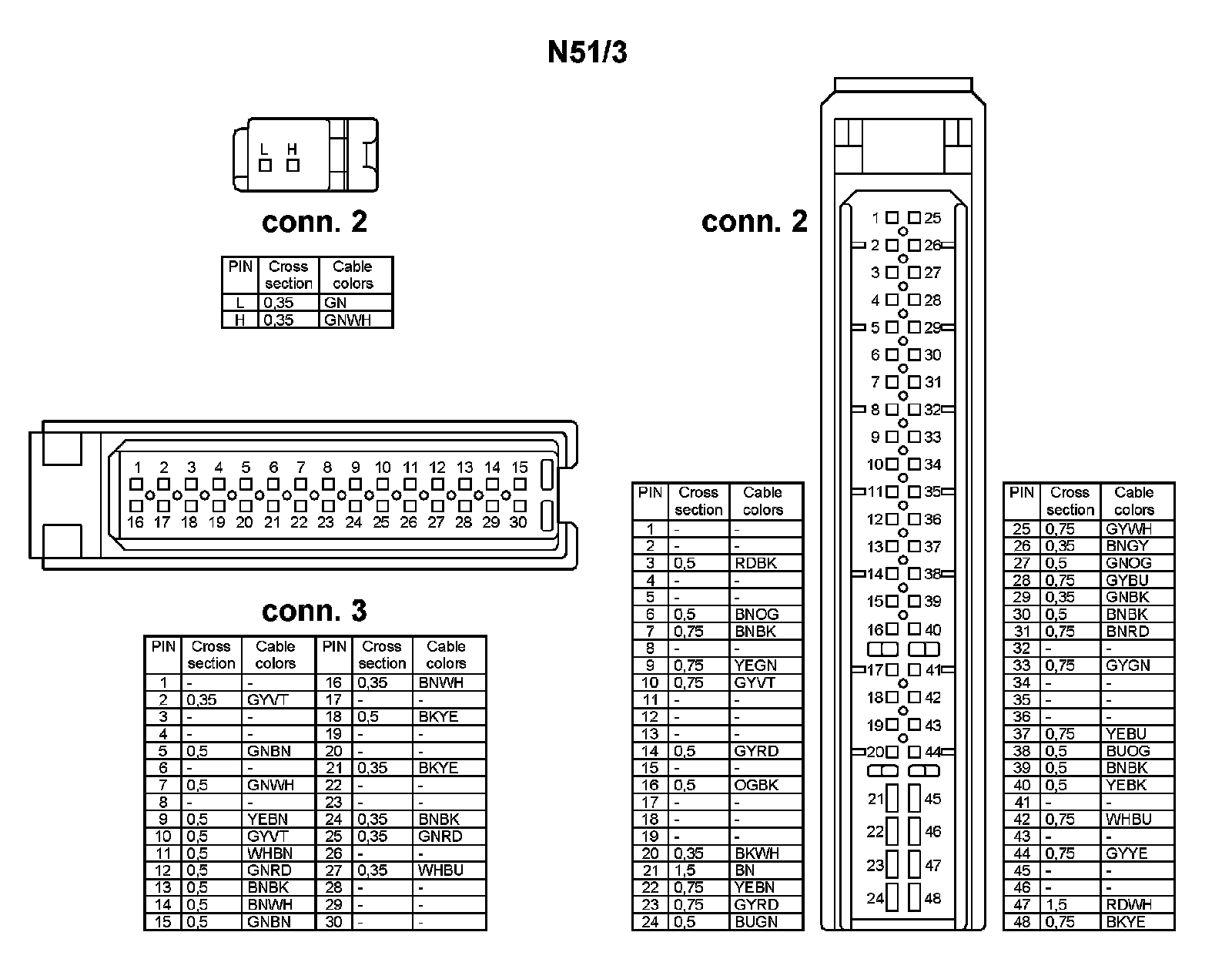

- Control unit N51/3
MODEL 212.074 /274 /077 /277
- with CODE (488) Steel/air suspension
- Control unit N51/3

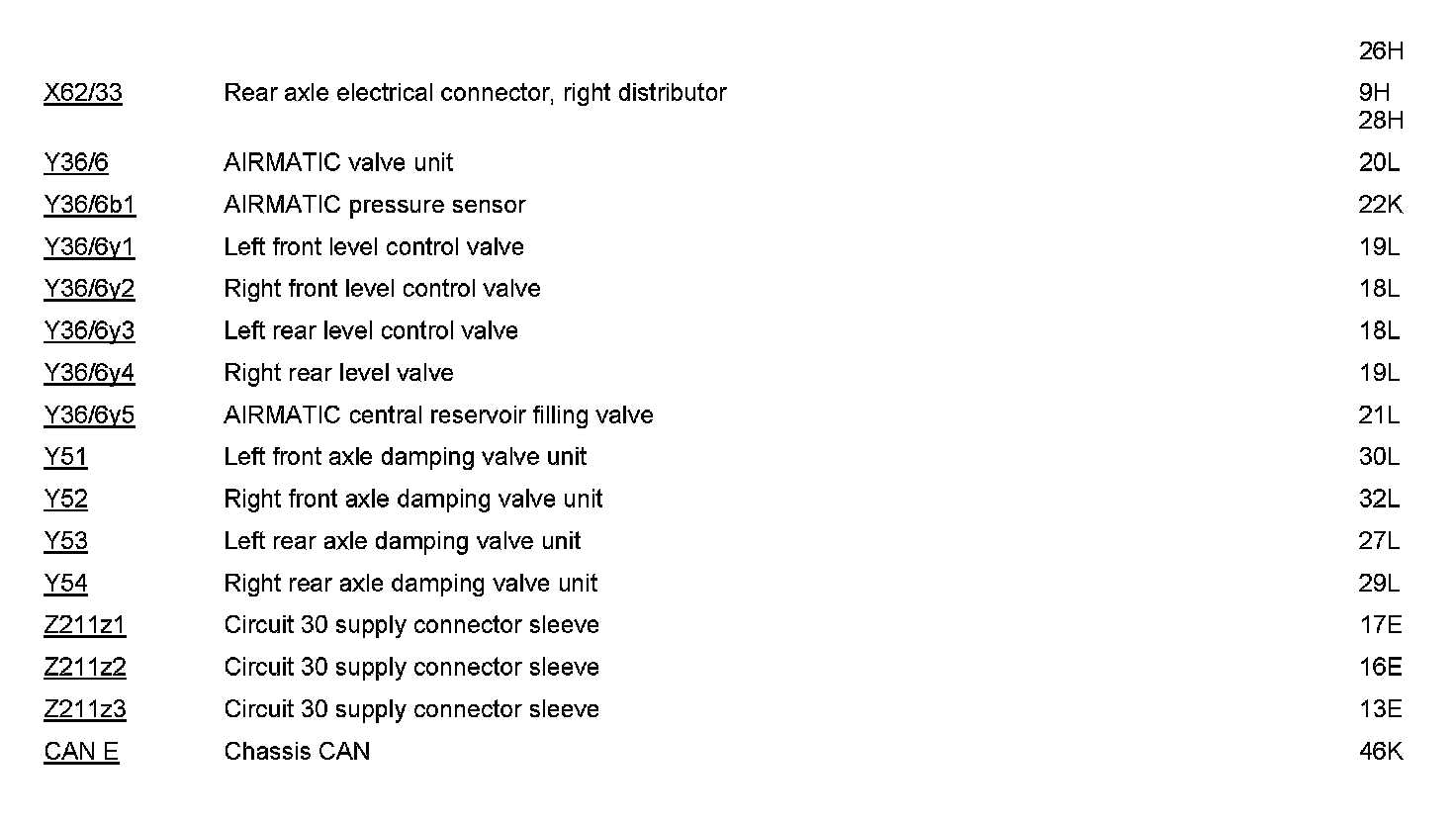

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
