AR32.22-P-2011EW Replace Rubber Mount For Compressor



AR32.22-P-2011EW Replace rubber mount for compressor
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
- with CODE (488) Steel/air suspension

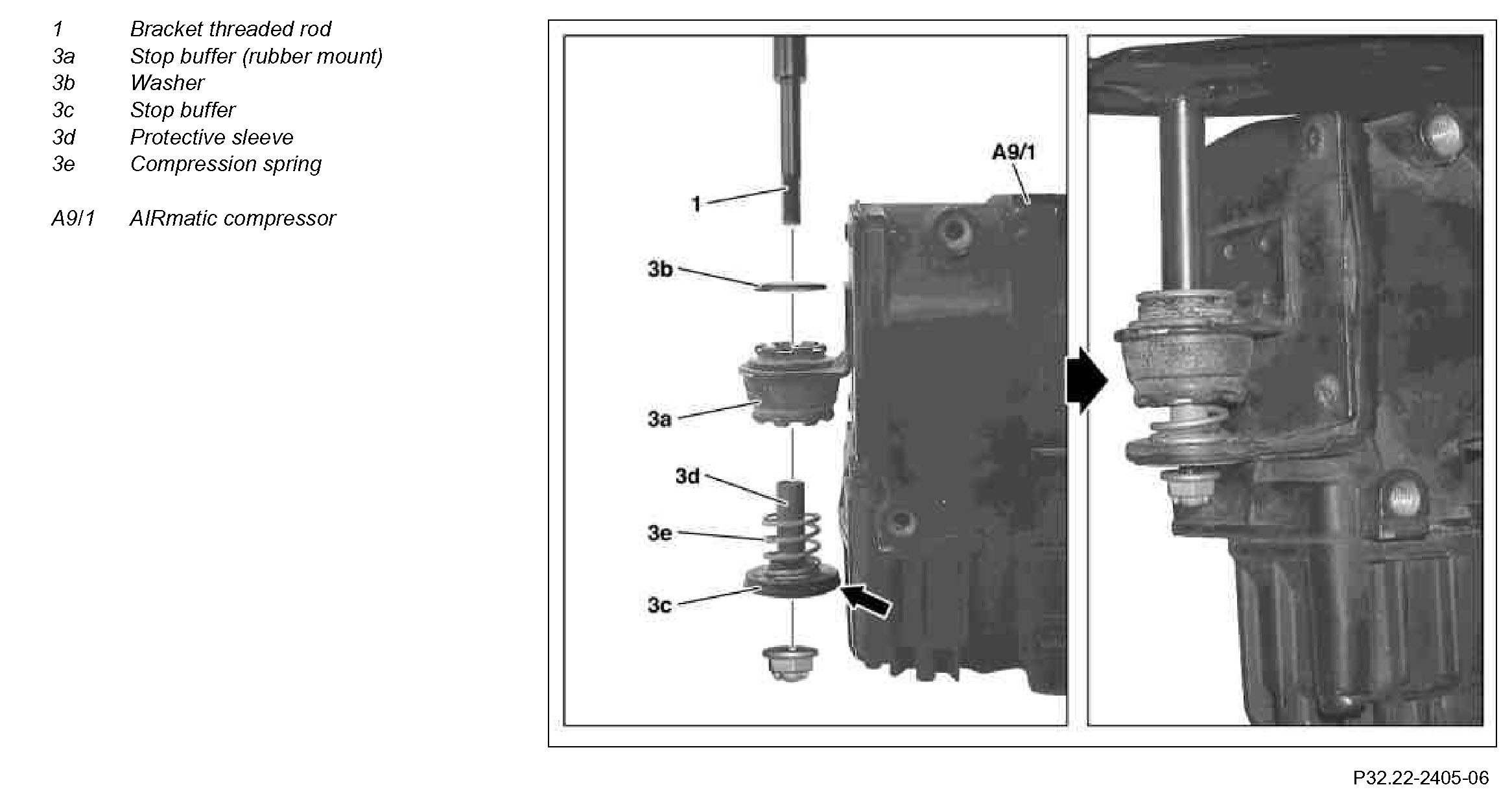

Component Identification:

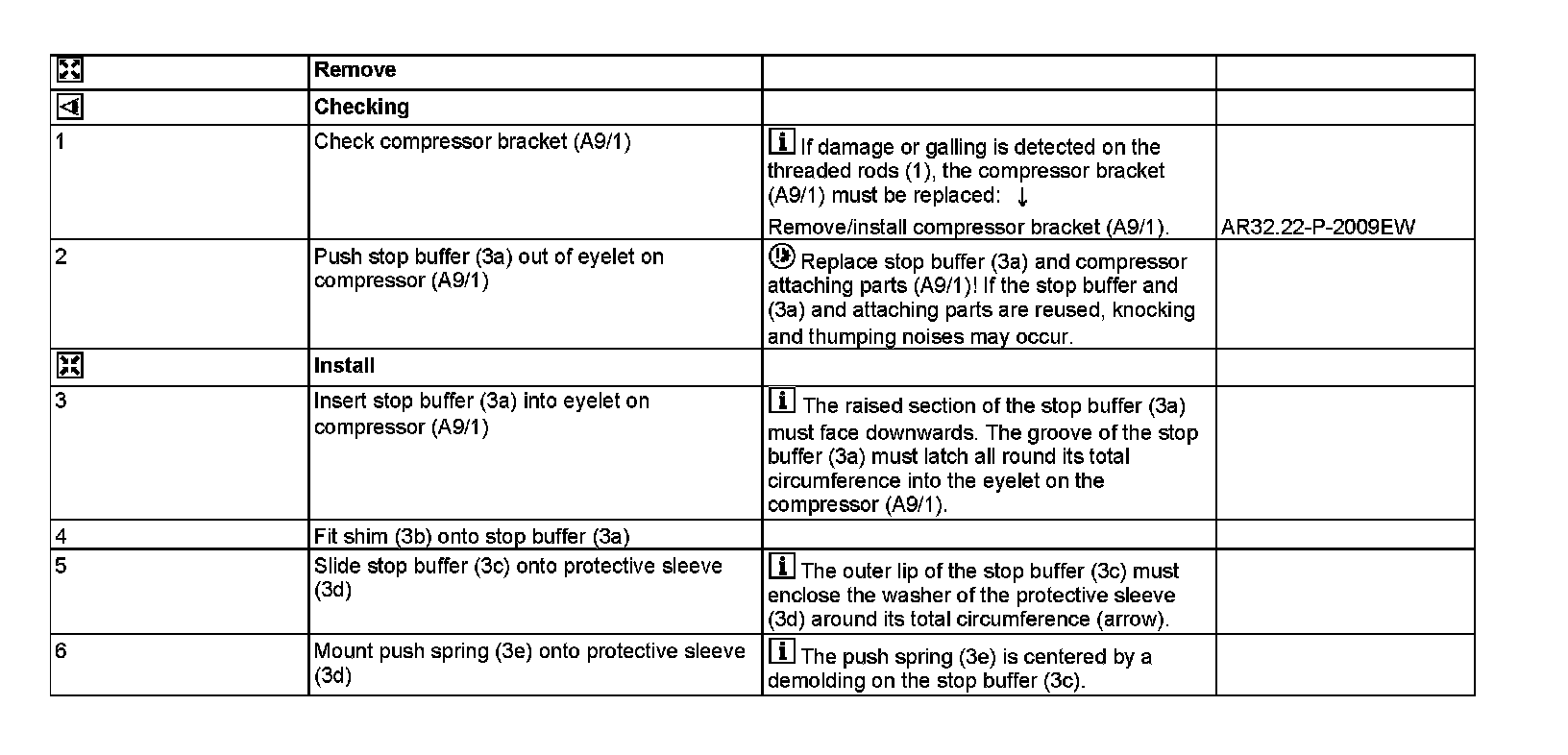

Steps 1-6:
