AR32.22-P-2009EW Remove/Install Bracket For Compressor



AR32.22-P-2009EW Remove/install bracket for compressor
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
- with CODE (488) Steel/air suspension


Component Identification:

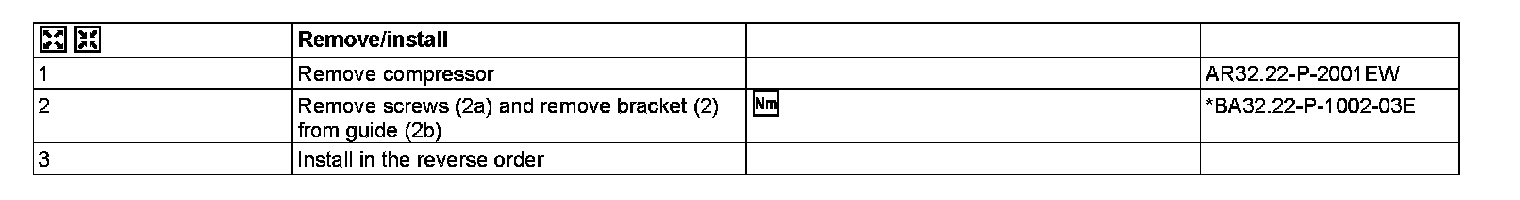

Steps 1-3:

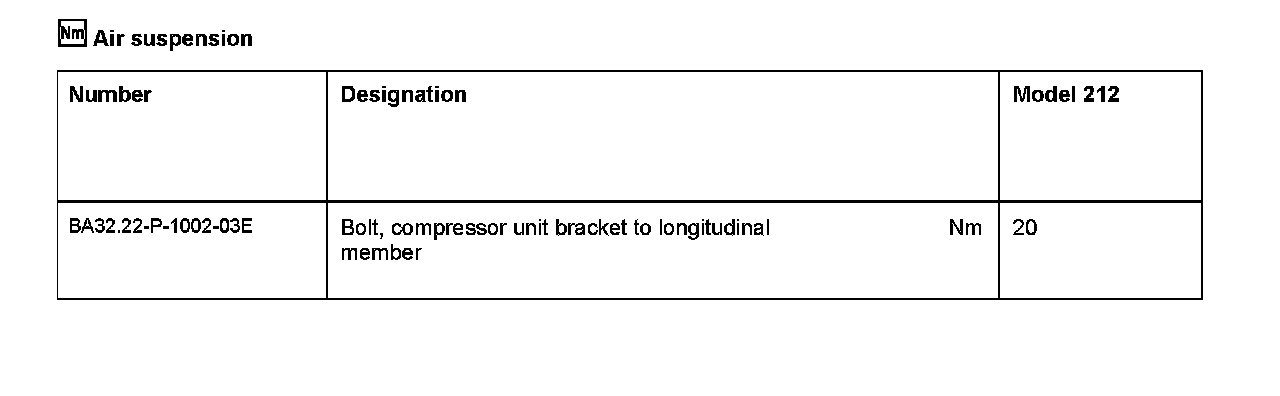

Air suspension:
