Air Spring: Service and Repair
AR32.22-P-1500EW Remove/install air spring
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
- with CODE (488) Steel/air suspension

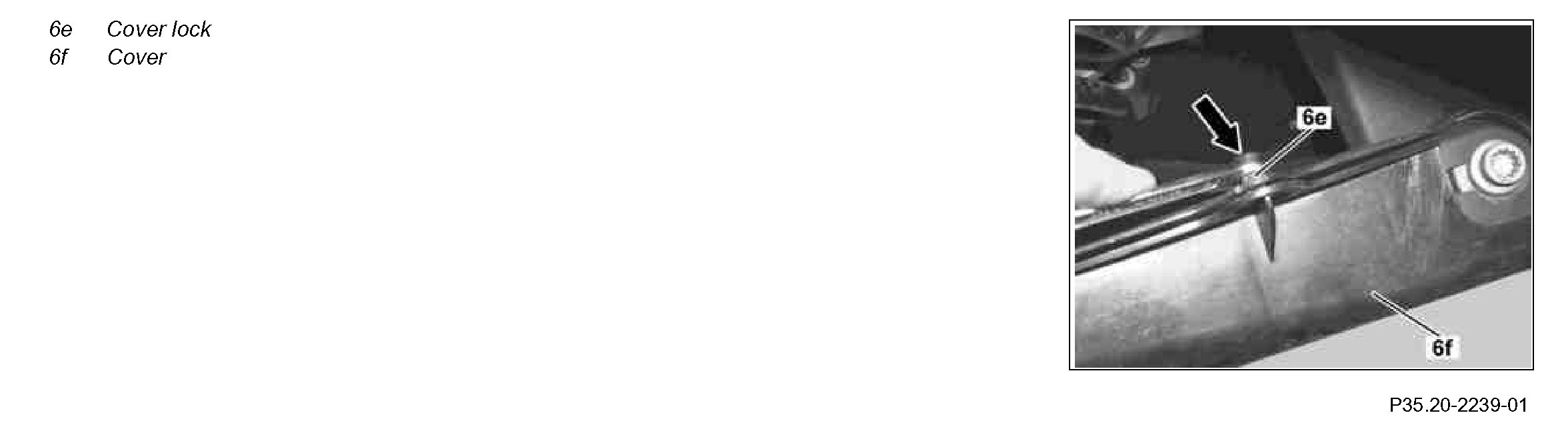

Component Identification:
Component Identification:

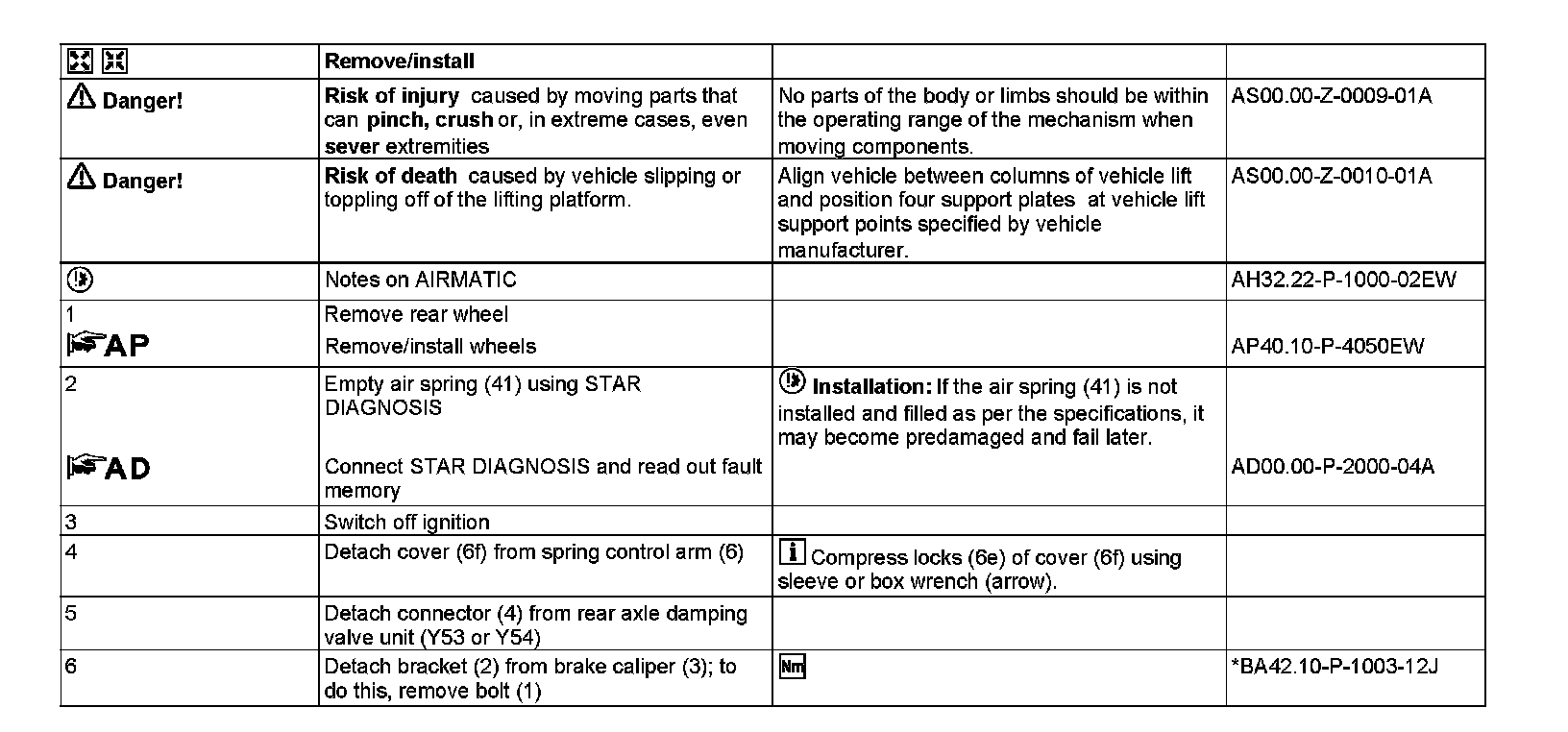

Steps 1-6:

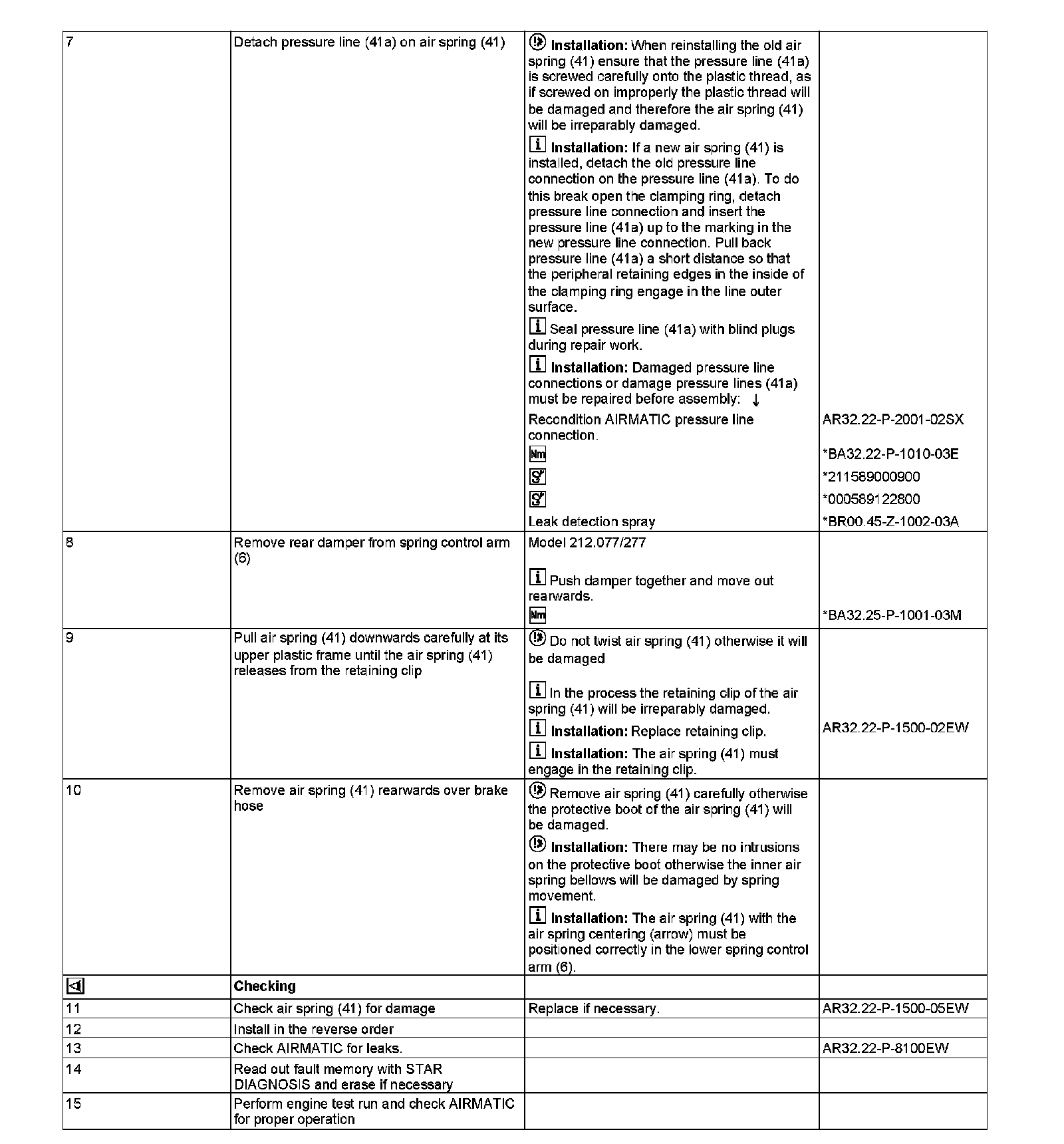

Steps 7-15:
Air suspension:

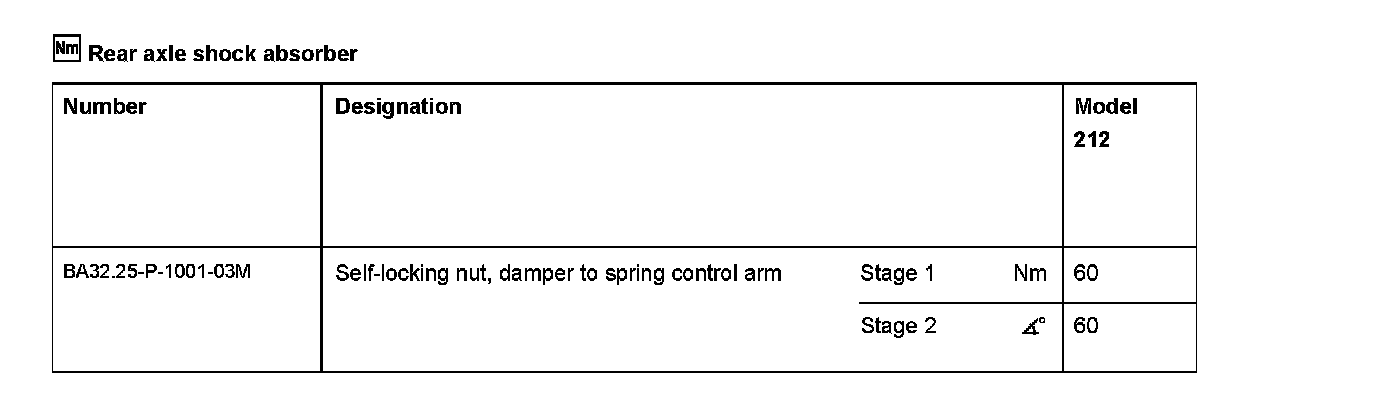

Rear axle shock absorber:

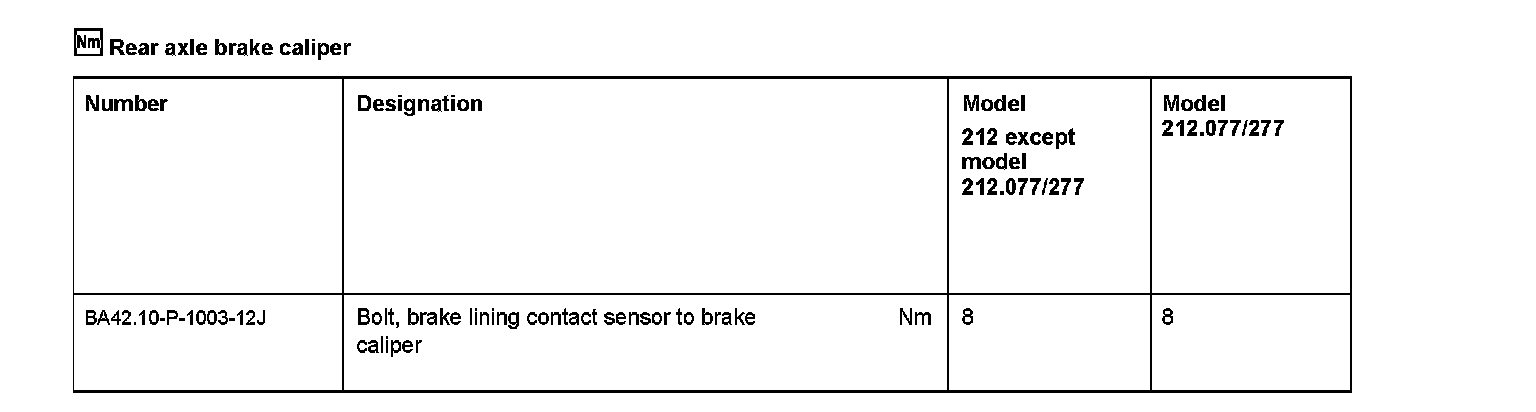

Rear axle brake caliper:

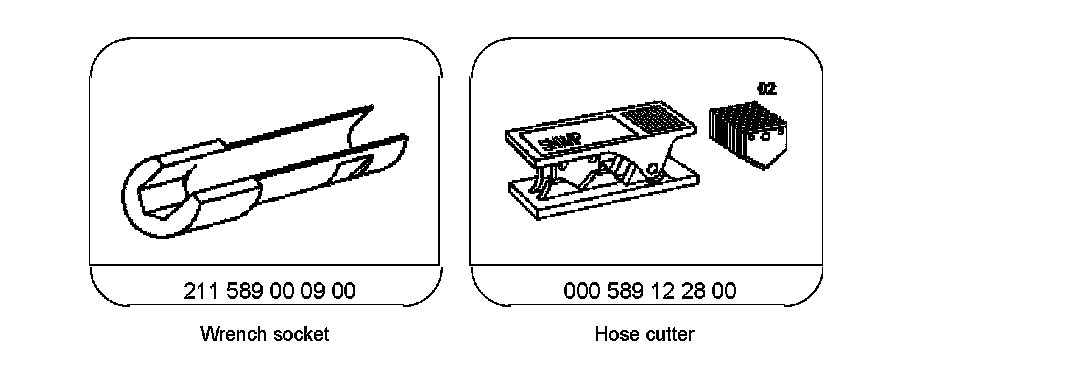

Special Tools:

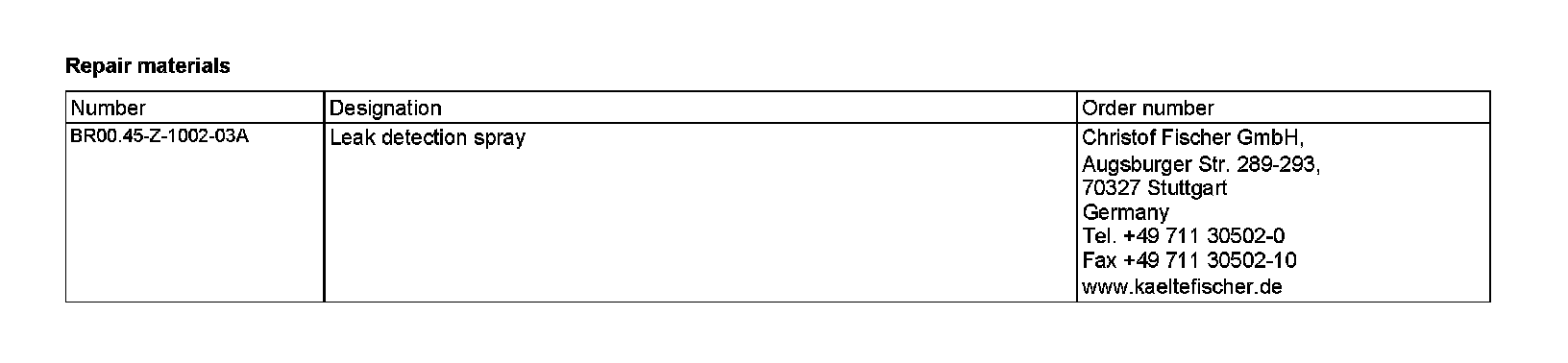

Repair materials:
