Accumulator: Service and Repair

AR32.22-P-2017EW Remove/install AIRmatic central reservoir
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
- with CODE (488) Steel/air suspension

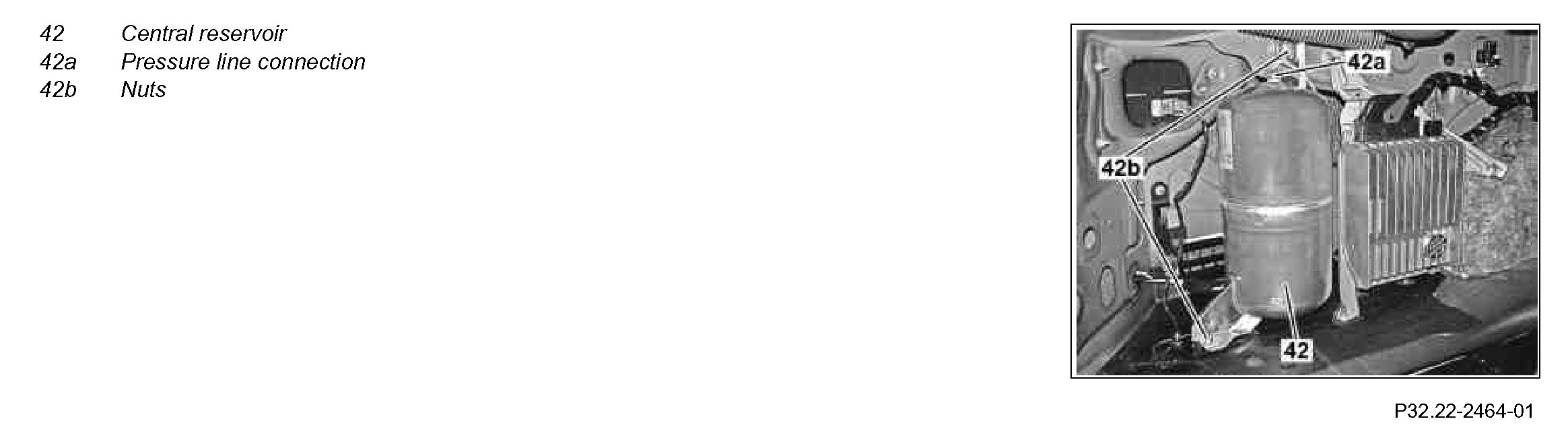

Component Identification:

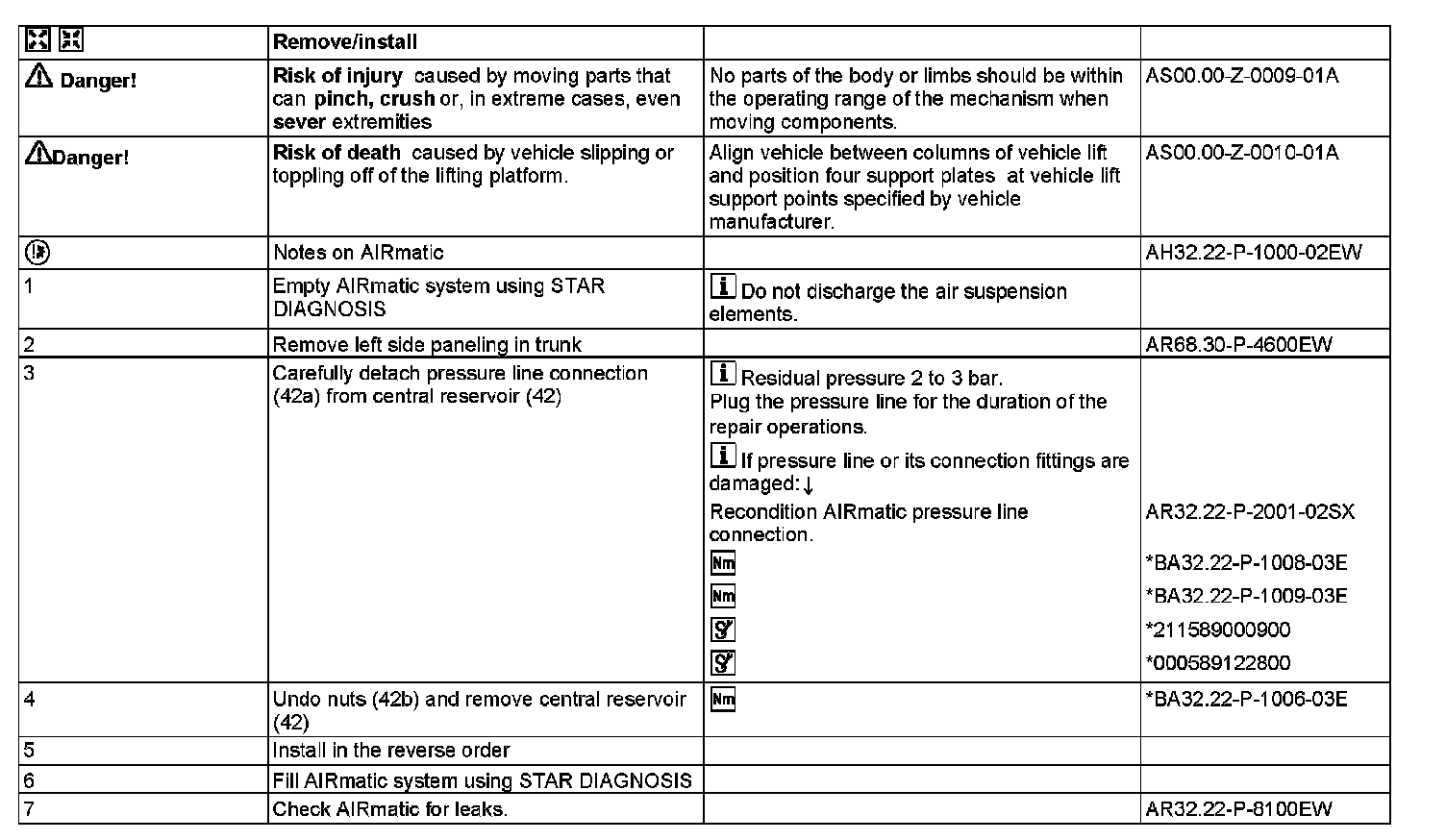

Steps 1-7:

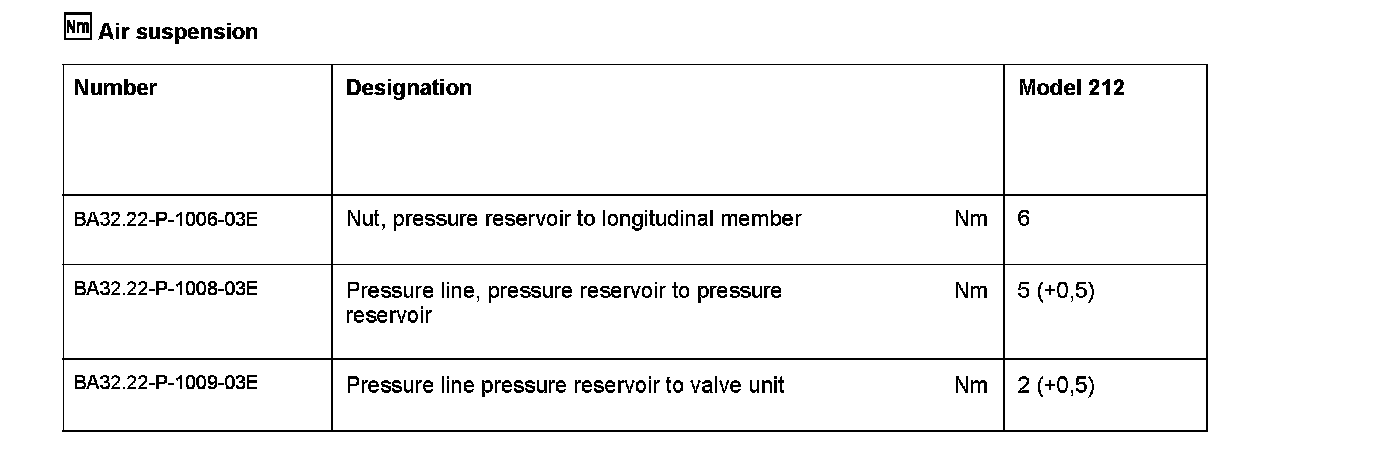

Air suspension:

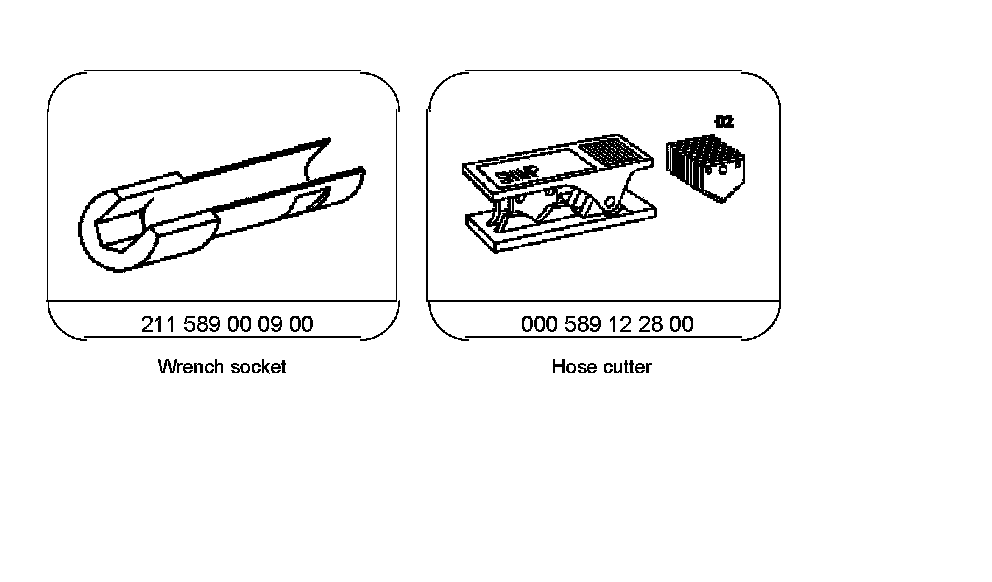

Special Tools:
