AR35.10-P-0015EW Lower Rear Axle
AR35.10-P-0015EW Lower Rear Axle
AR35.10-P-0015EW Lower rear axle
- lower front rear axle carrier

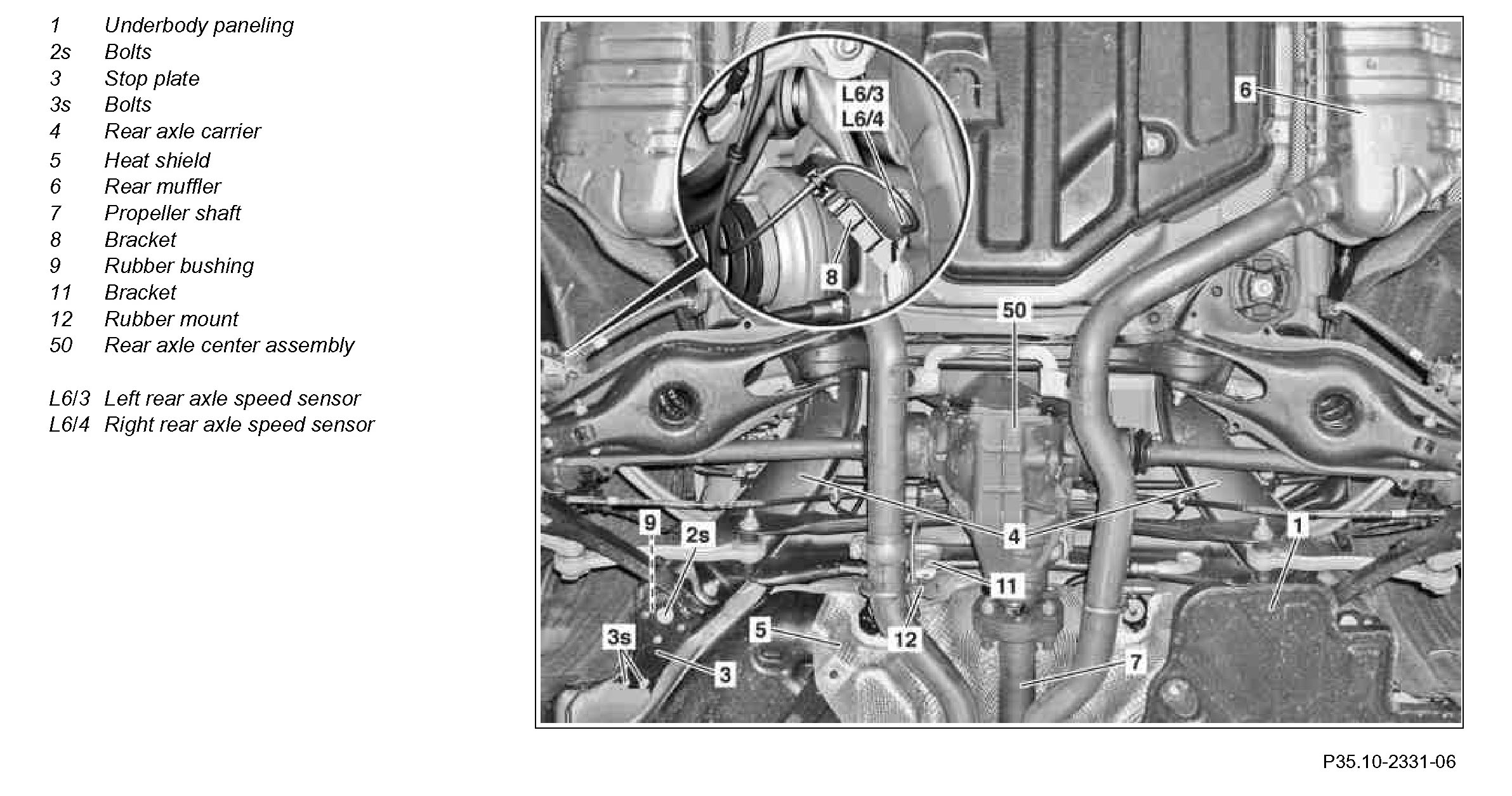

Component Identification:

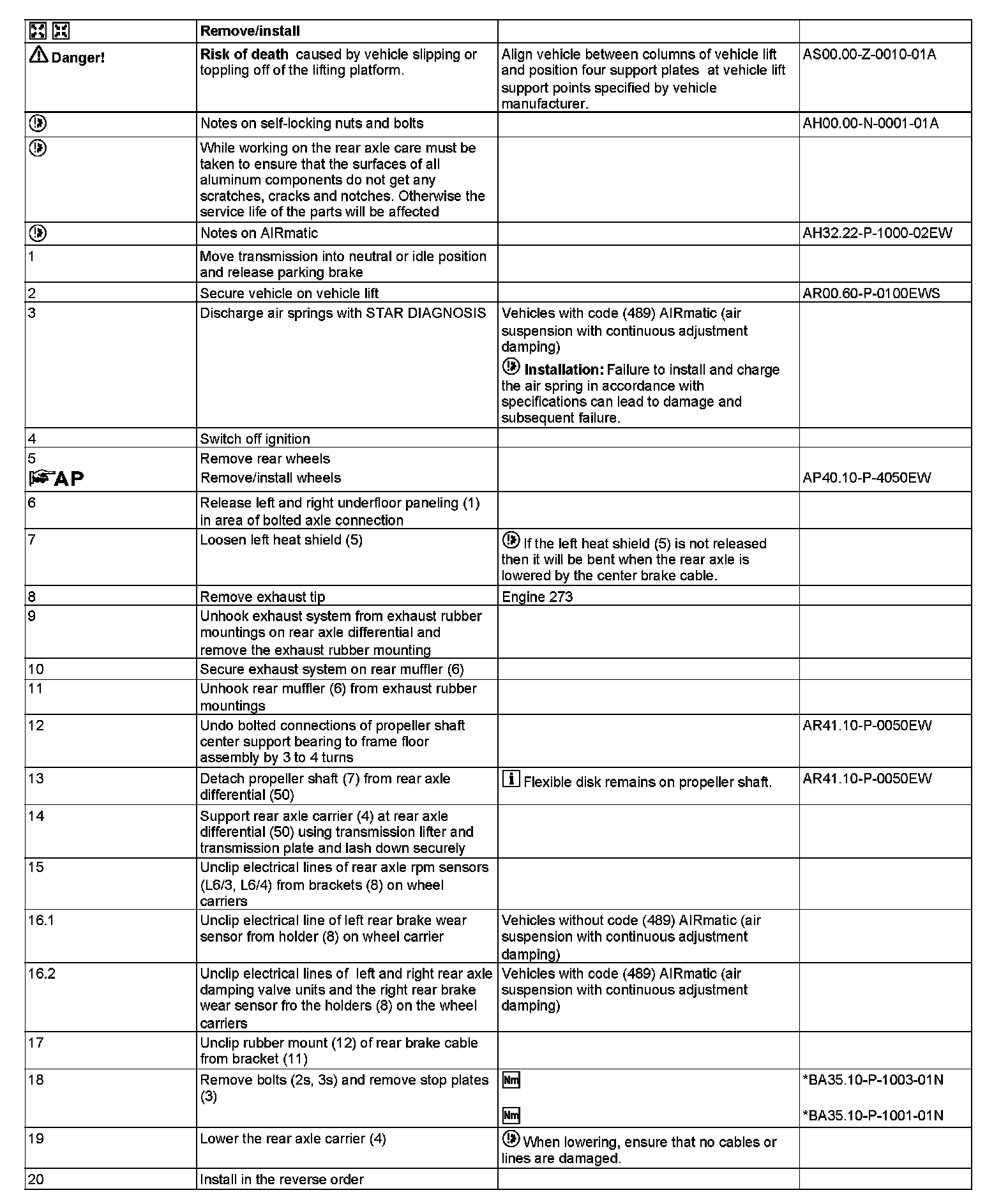

Steps 1-20:

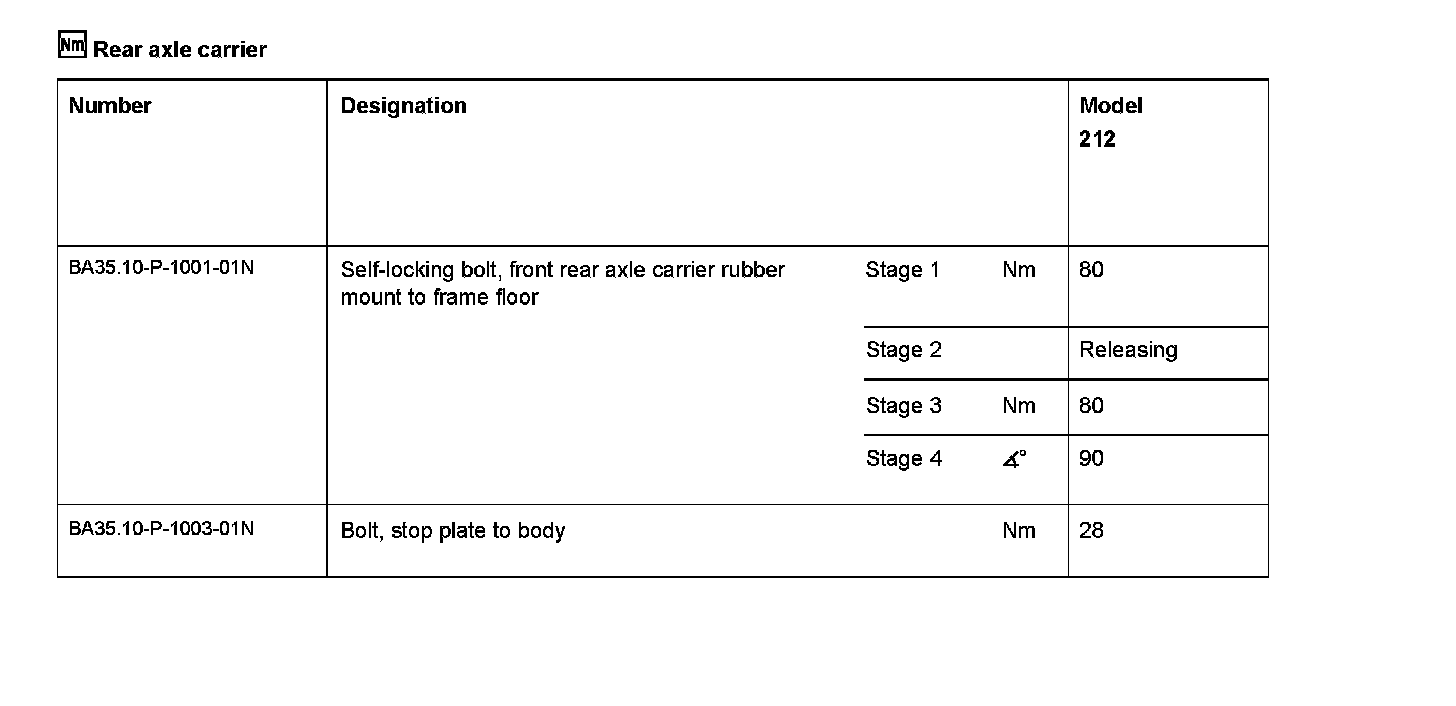

Rear axle carrier:
