AR35.10-P-0042EW Rear Rubber Bushing, Rear Axle Mount - Removal and Installation



AR35.10-P-0042EW Rear rubber bushing, rear axle mount - Removal and installation

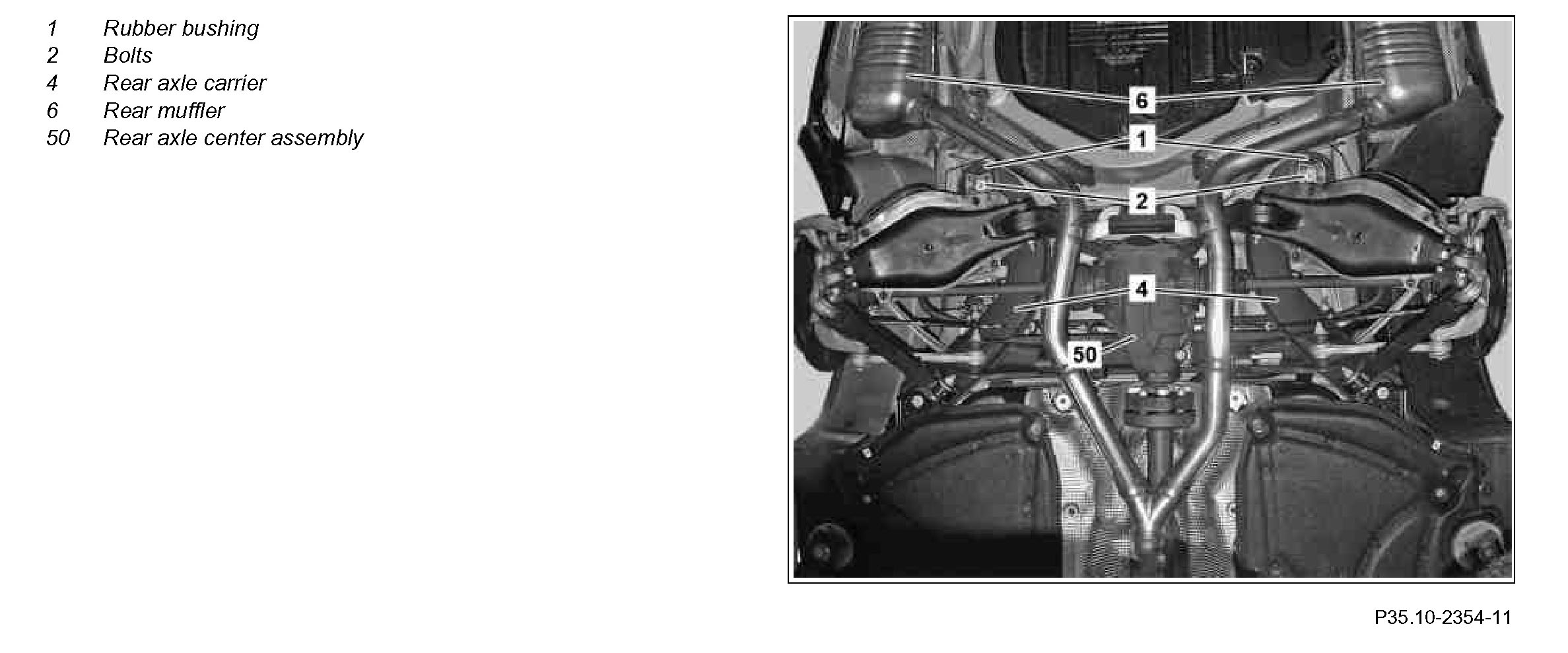

Component Identification:

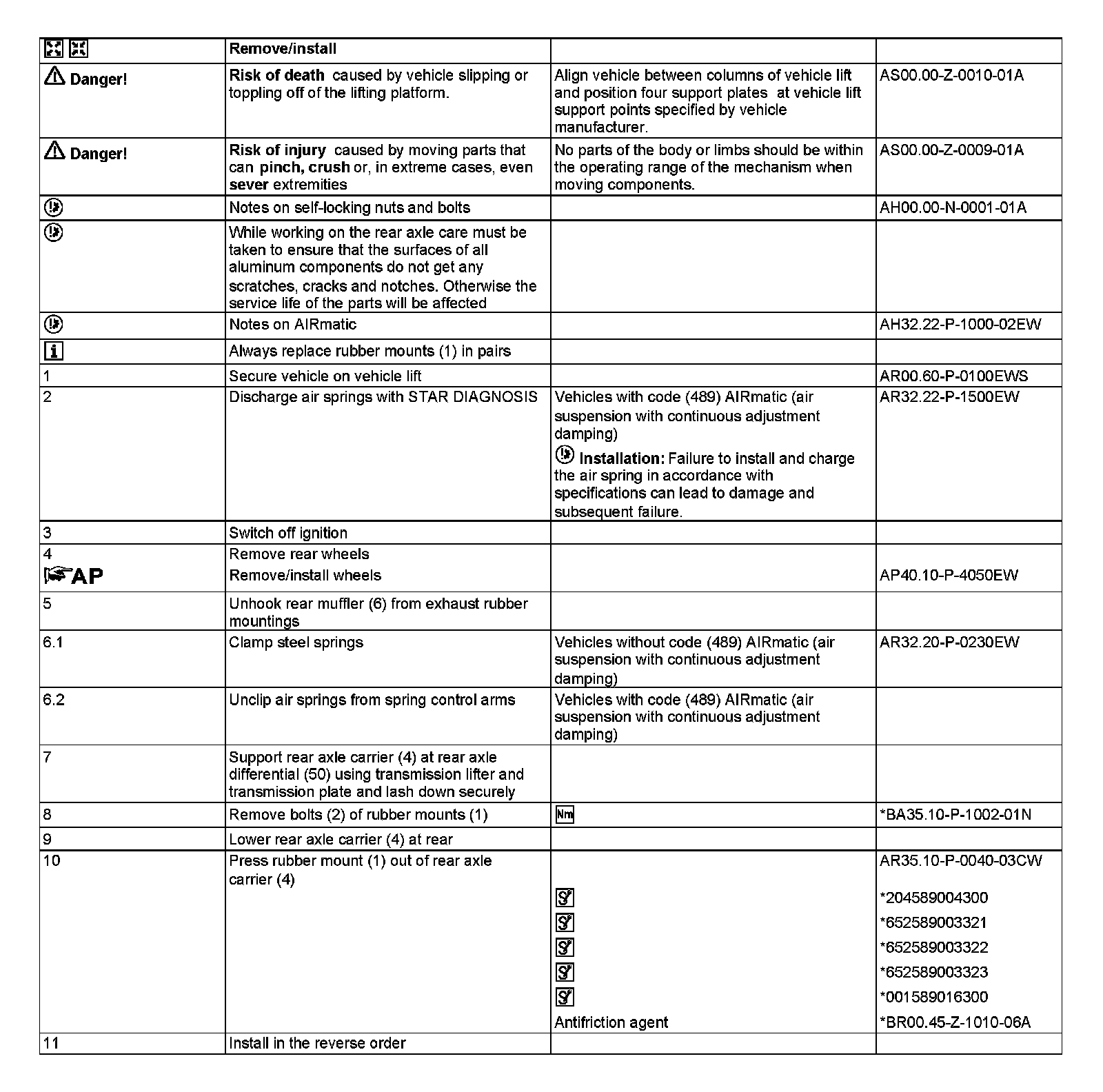

Steps 1-11:




Rear axle carrier:

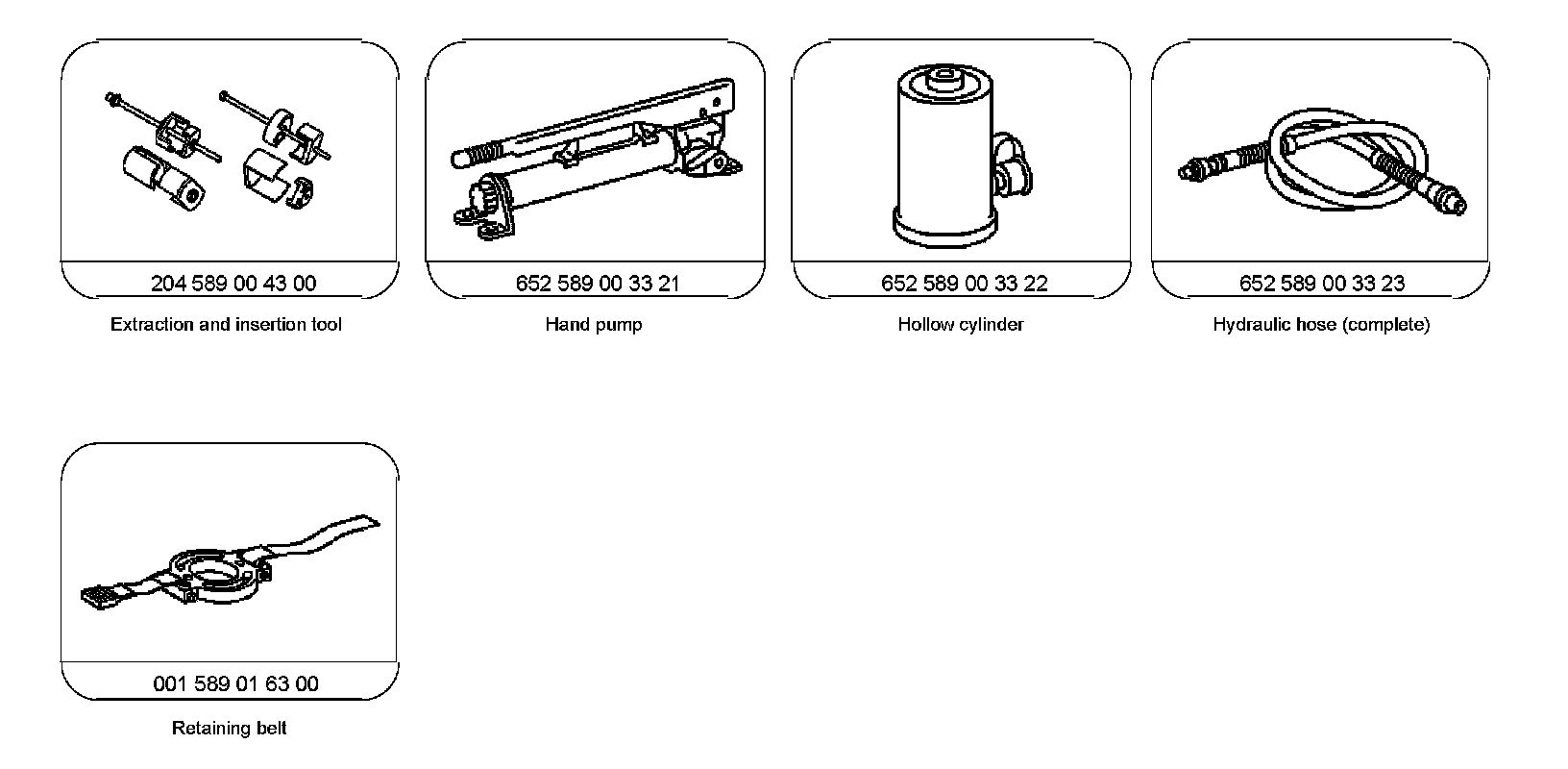

Special Tools:

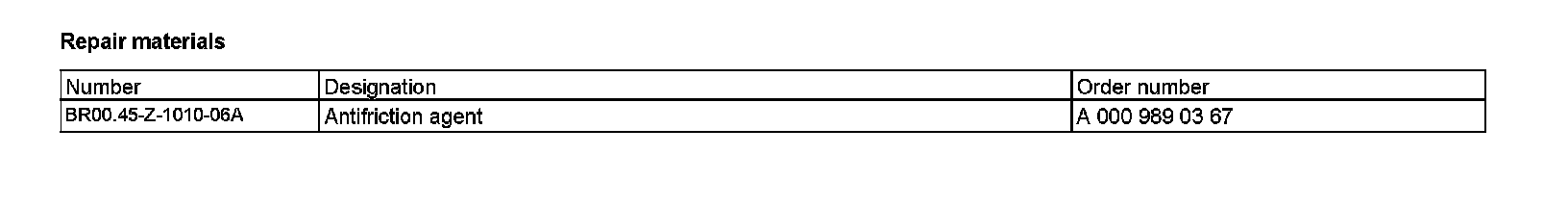

Repair materials:
