AR32.20-P-0315EW Remove/Install Stabilizer Bar on Rear Axle
AR32.20-P-0315EW Remove/Install Stabilizer Bar on Rear Axle
AR32.20-P-0315EW Remove/install
stabilizer bar
on rear axle

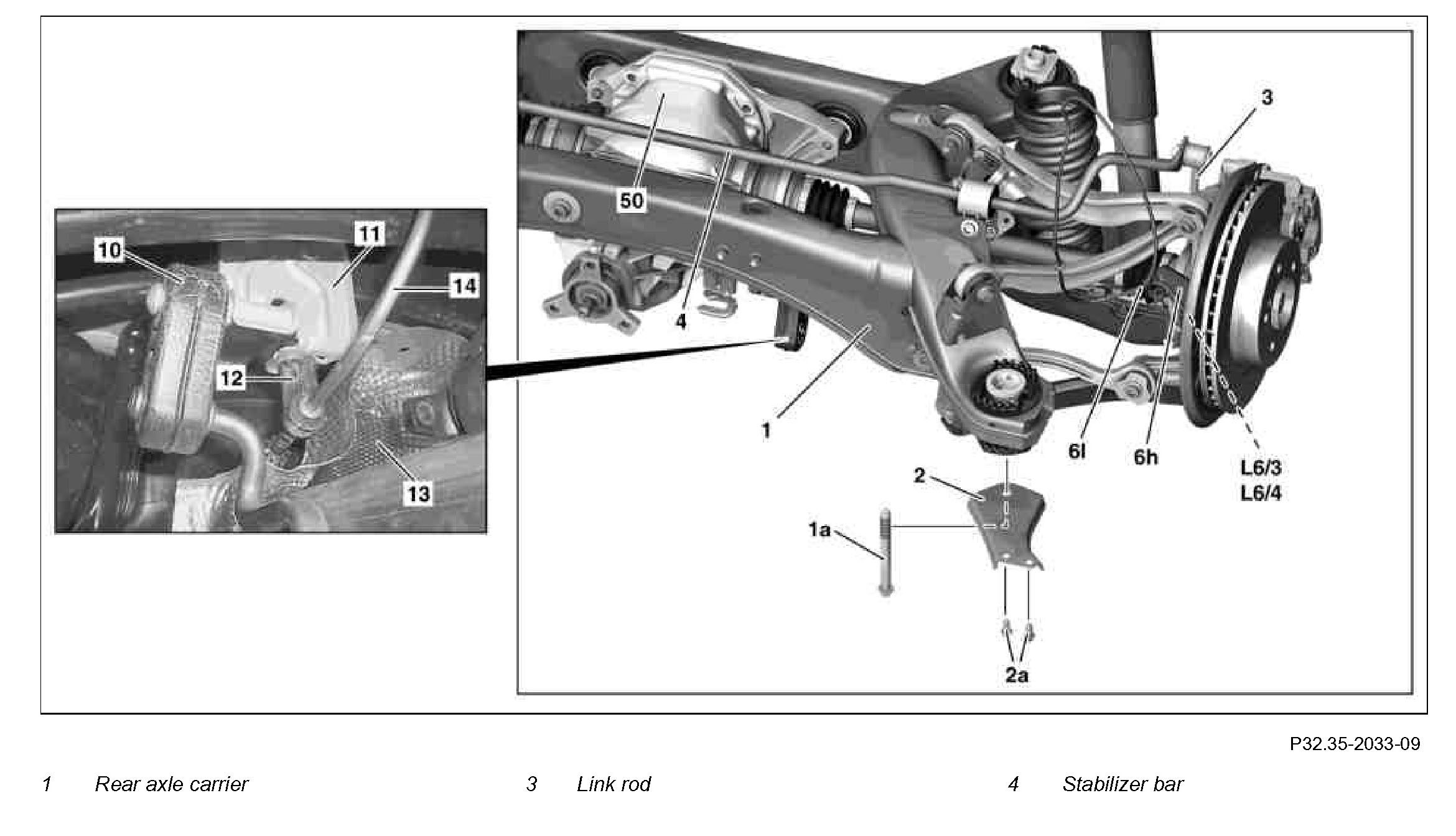

Component Identification:
Steps 1-4:

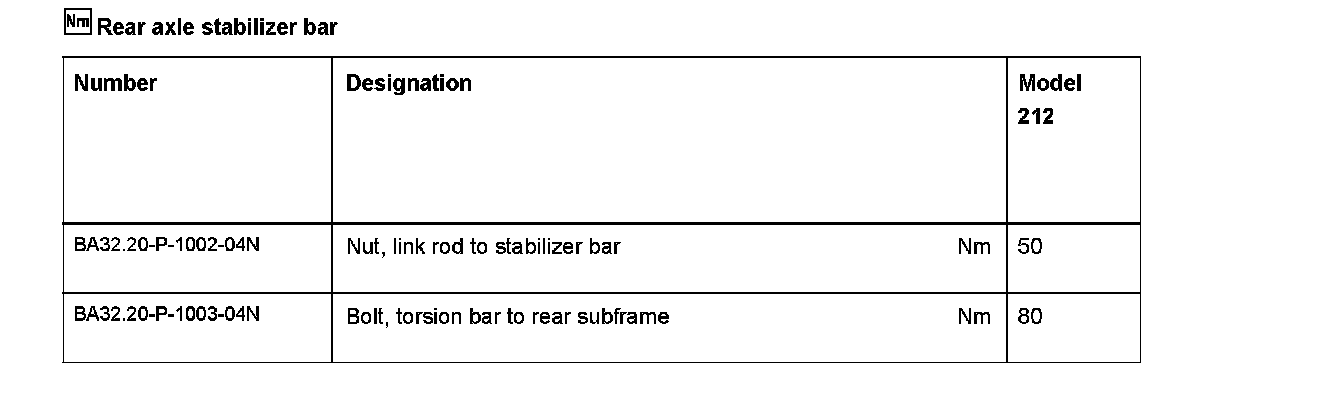

Rear axle stabilizer bar:
