Radius Arm: Service and Repair

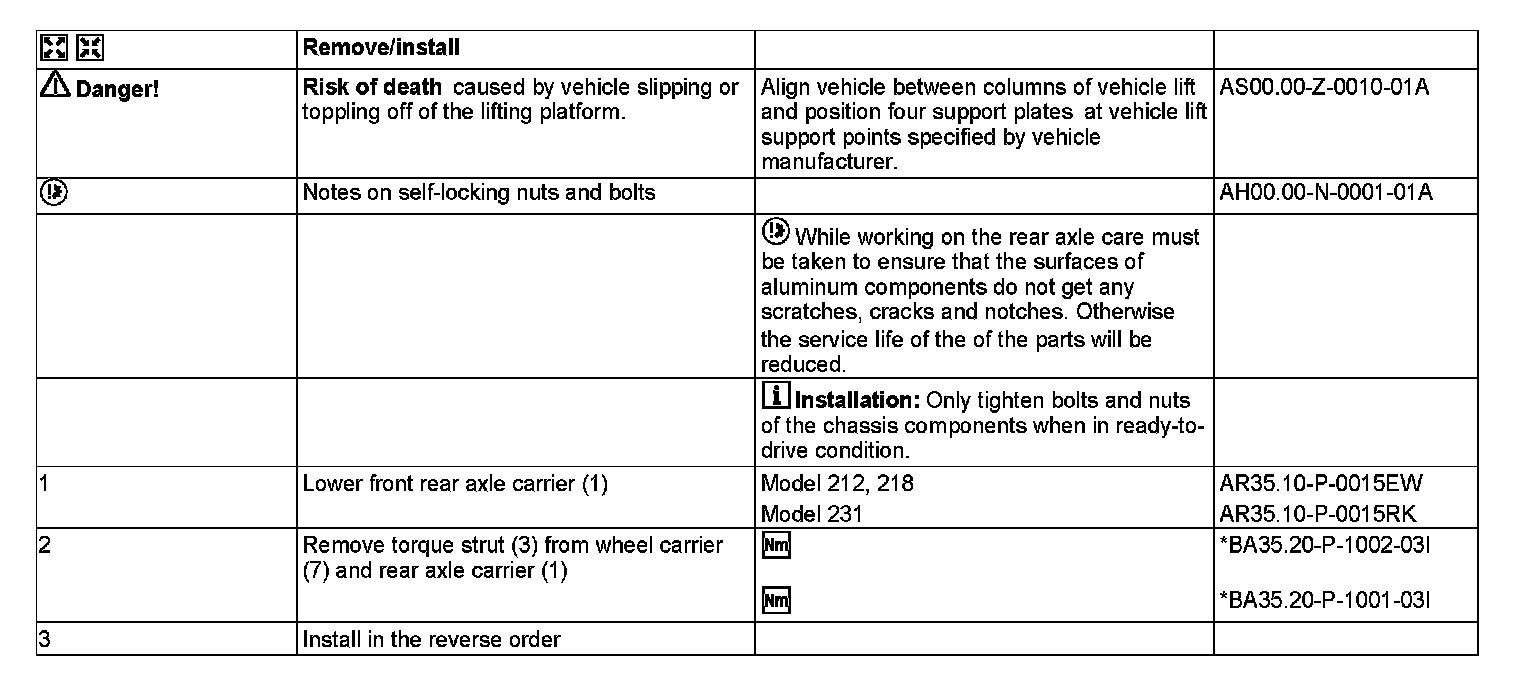

AR35.20-P-0111EW Remove/Install Radius Rod
MODEL 212, 218, 231

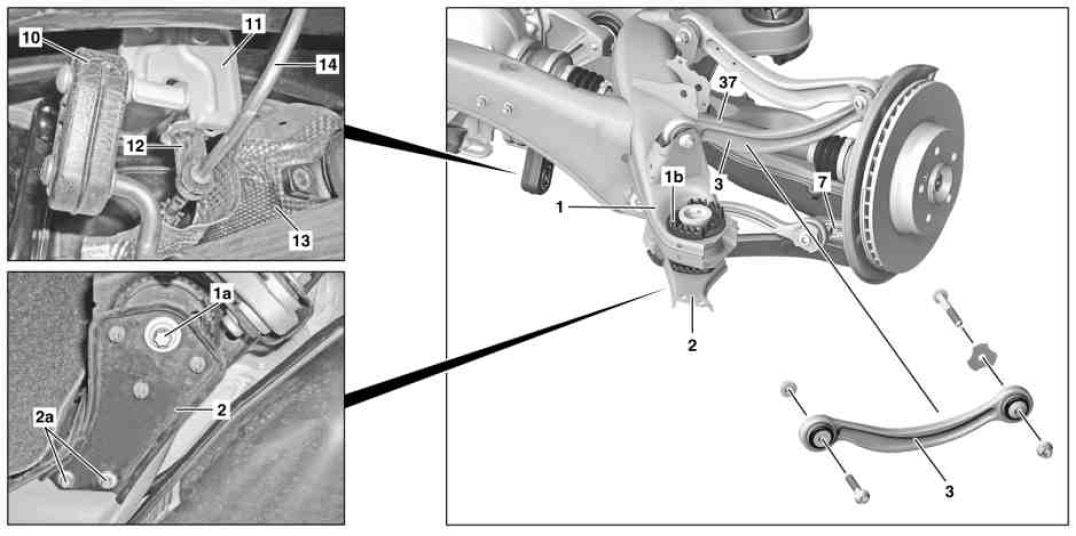

1 Rear axle carrier

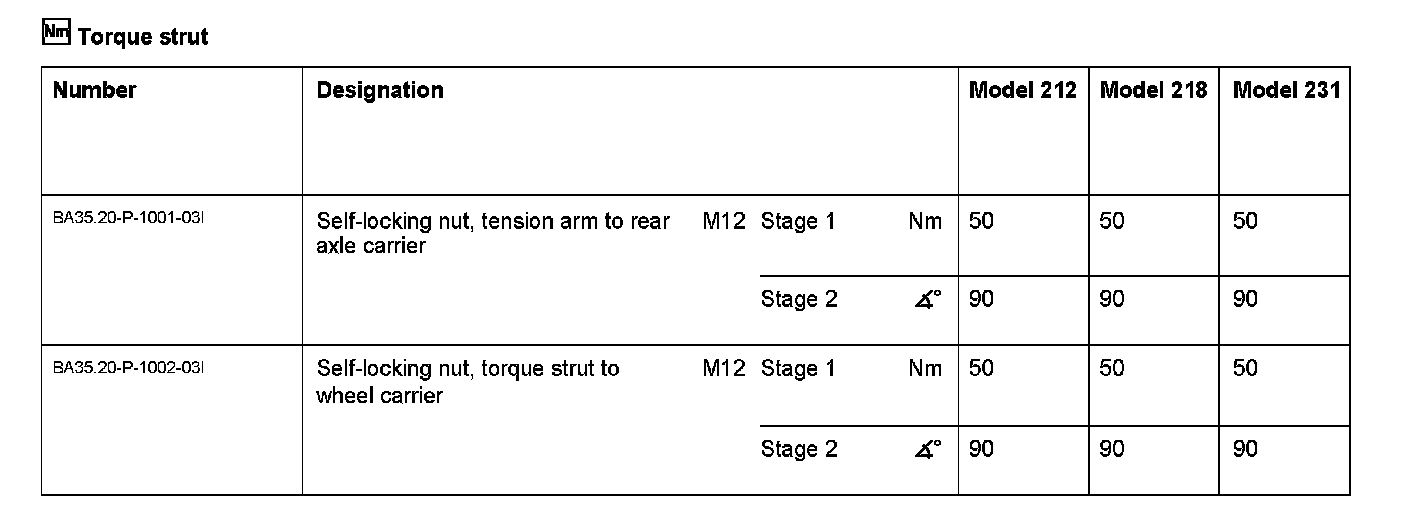

3 Torque strut
7 Wheel carrier
