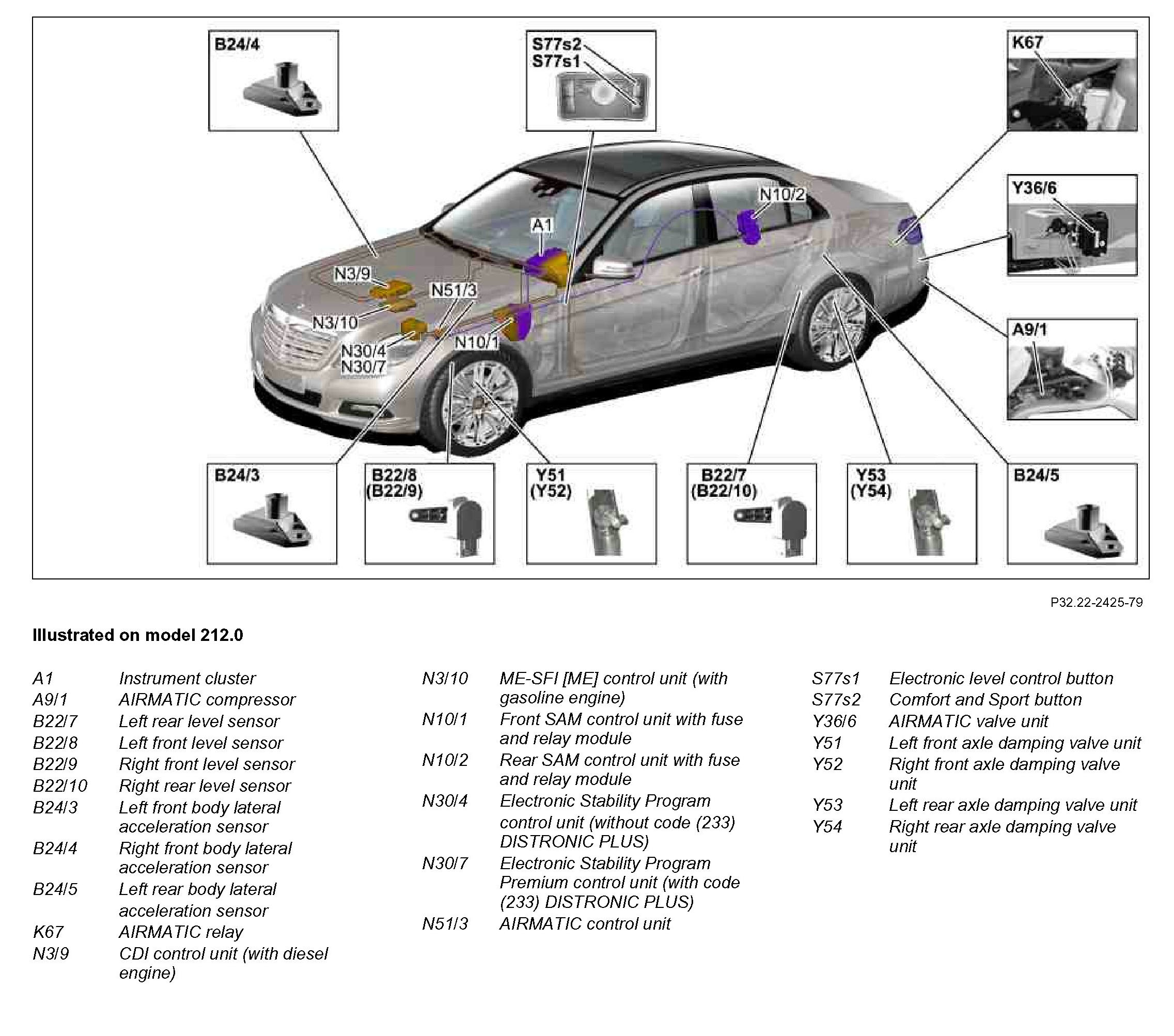

GF32.22-P-0003-05FL AIRmatic, Location of Components
GF32.22-P-0003-05FL AIRmatic, Location of Components
GF32.22-P-0003-05FL AIRMATIC, location of components
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
Component Identification:
