GF32.22-P-0001-01FLX Air Suspension, Location of Components

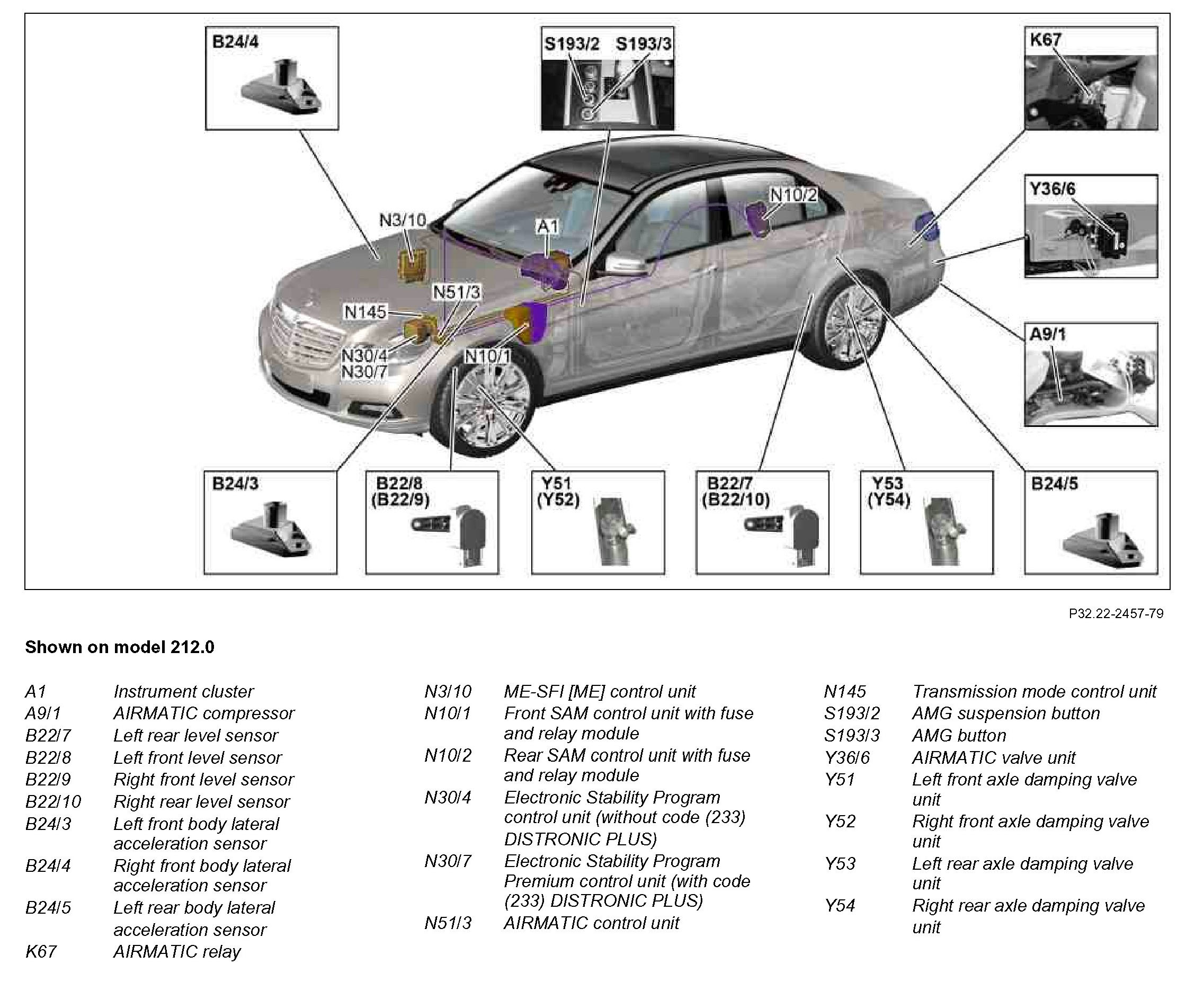

GF32.22-P-0001-01FLX Air suspension, location of components
- with CODE (488) Steel/air suspension


Component Identification:
