AR35.20-P-0104EW Remove/Install Spring Control Arm Mount at Rear Axle Carrier



AR35.20-P-0104EW Remove/install spring control arm mount at rear axle carrier

Component Identification:

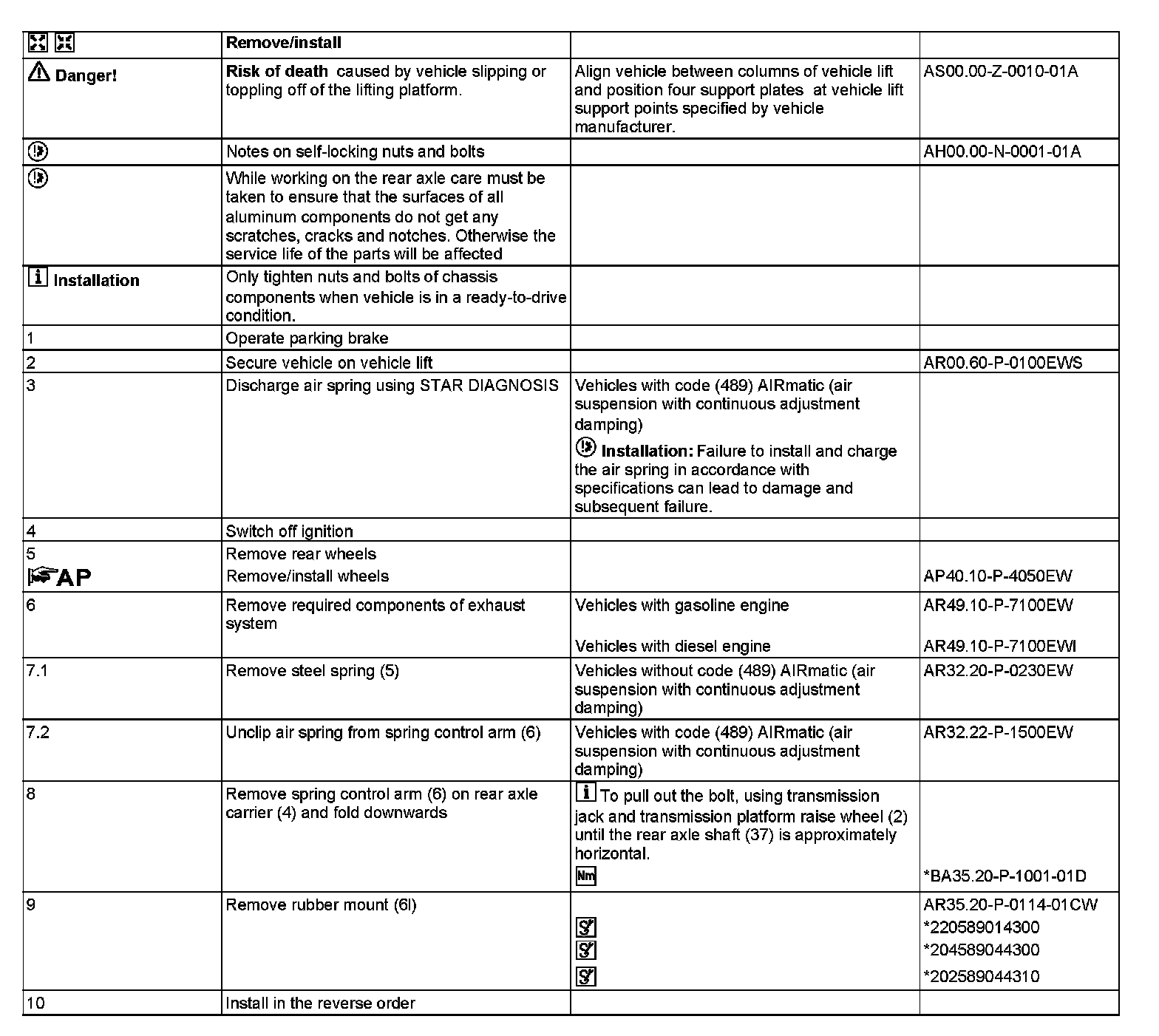

Steps 1-10:

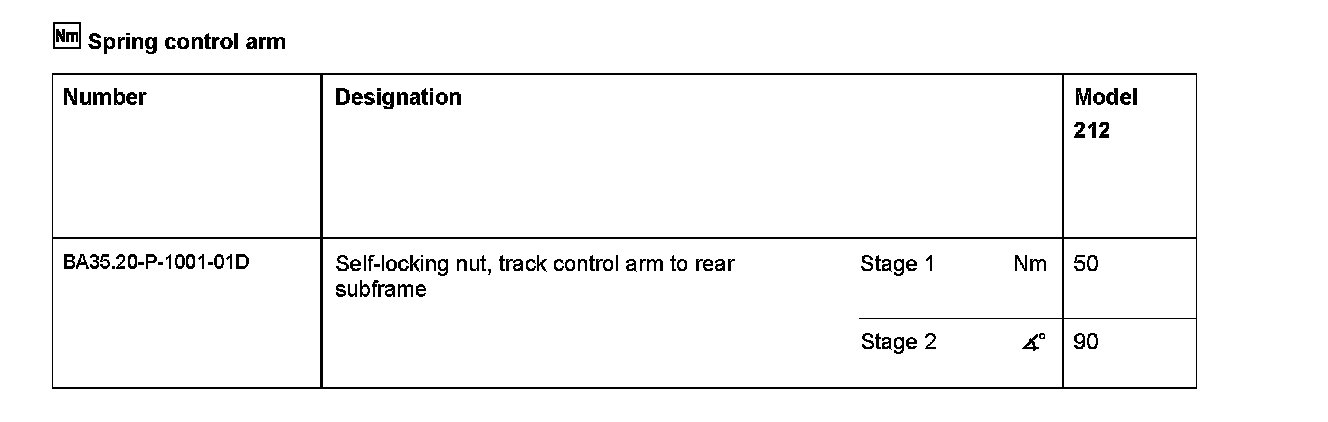

Spring control arm:

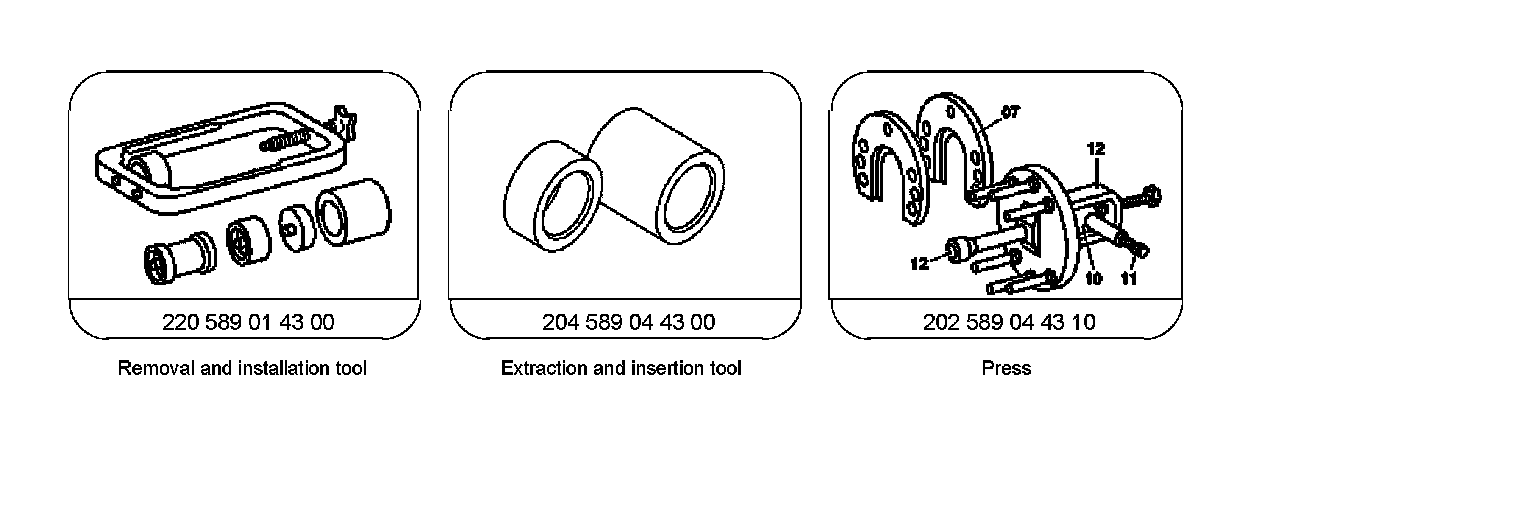

Special Tools:
