AR35.20-P-0105EW Remove/Install Thrust Arm Bushing at the Wheel Carrier



AR35.20-P-0105EW Remove/install thrust arm bushing at the wheel carrier

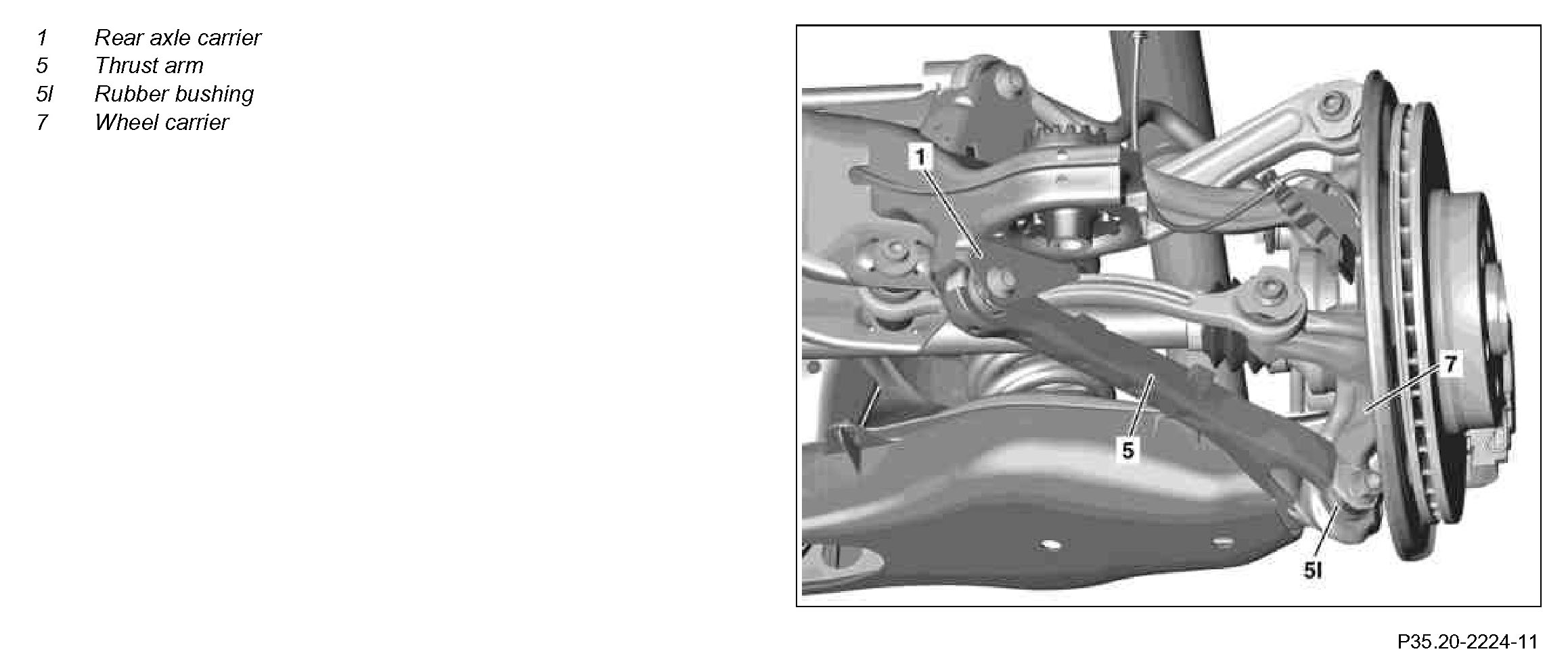

Component Identification:

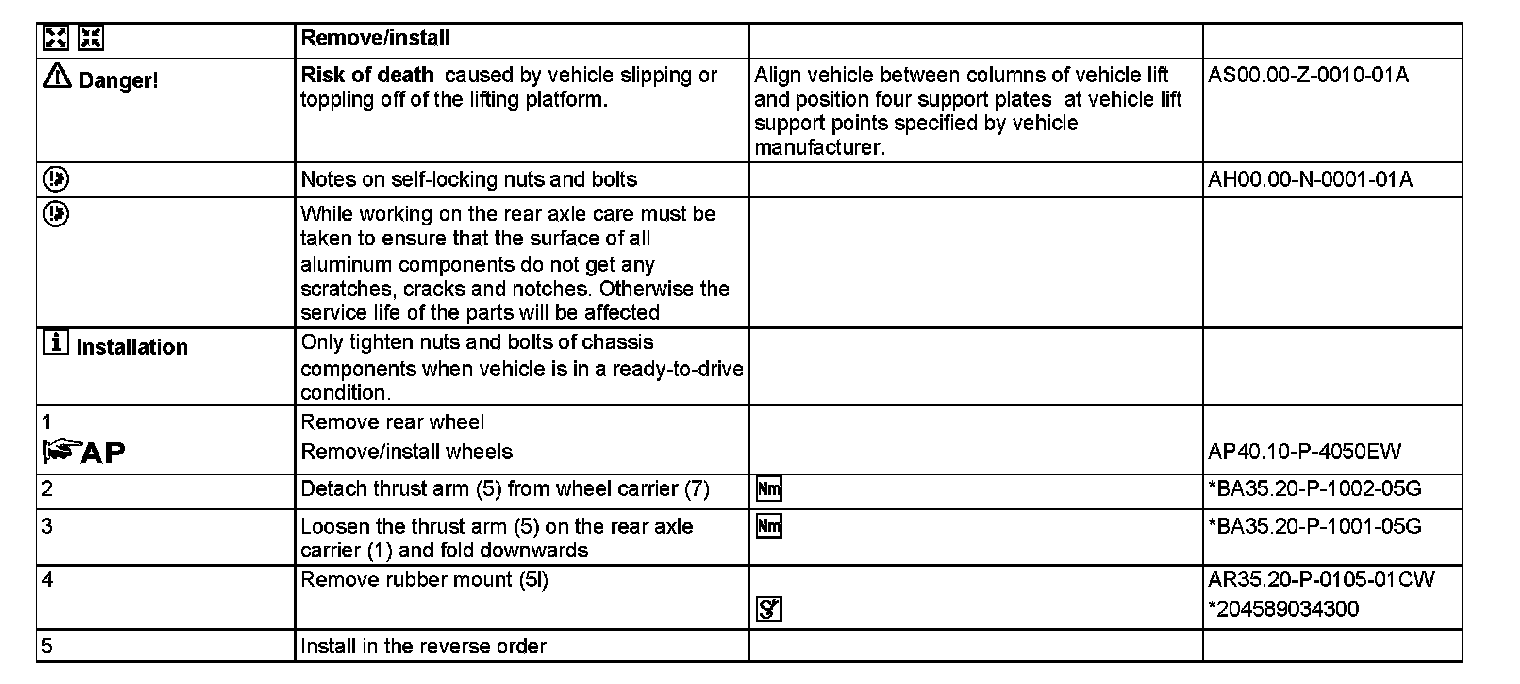

Steps 1-5:

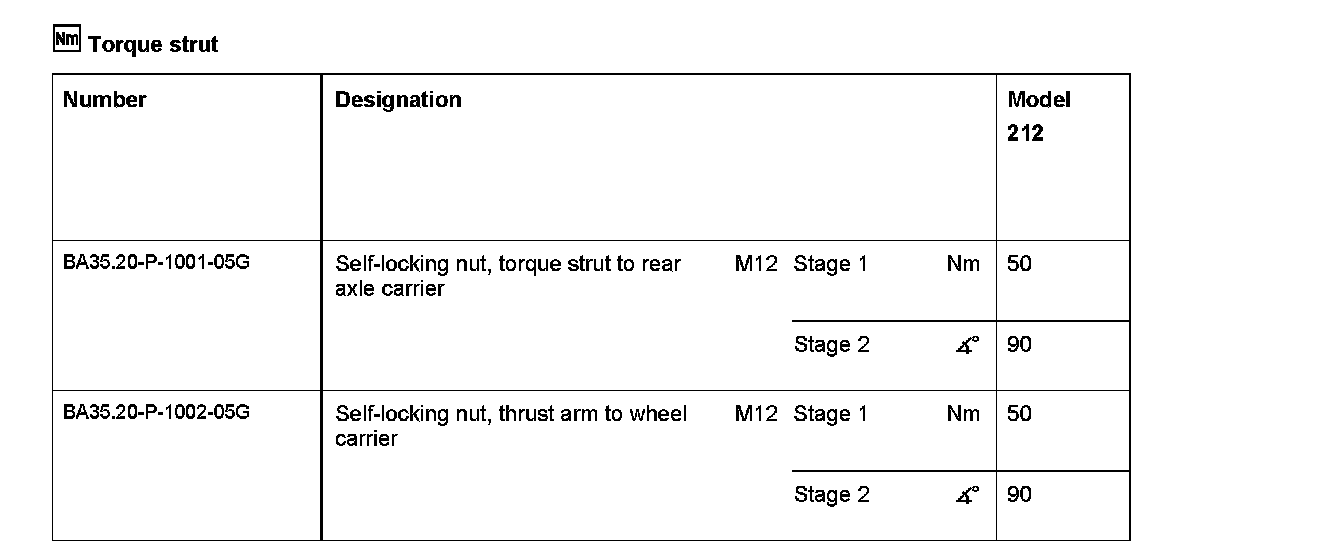

Torque strut:

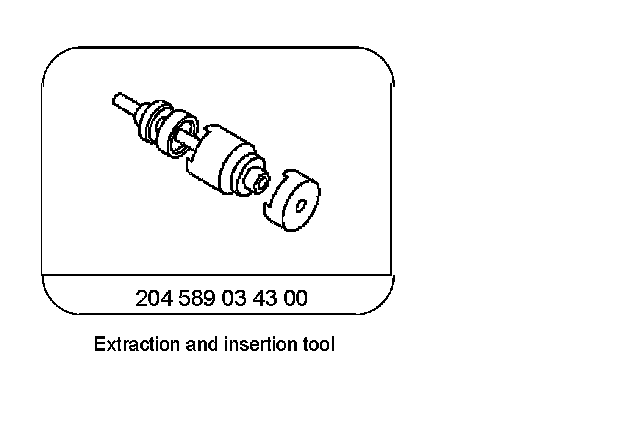

Special Tools:
