AR35.20-P-0105-01CW Remove/Install Rubber Mounts From Thrust Arm

AR35.20-P-0105-01CW Remove/install rubber mounts from thrust arm

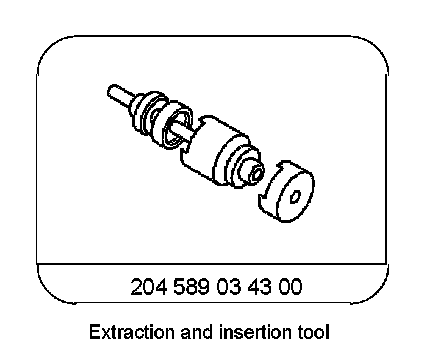

Special Tools:

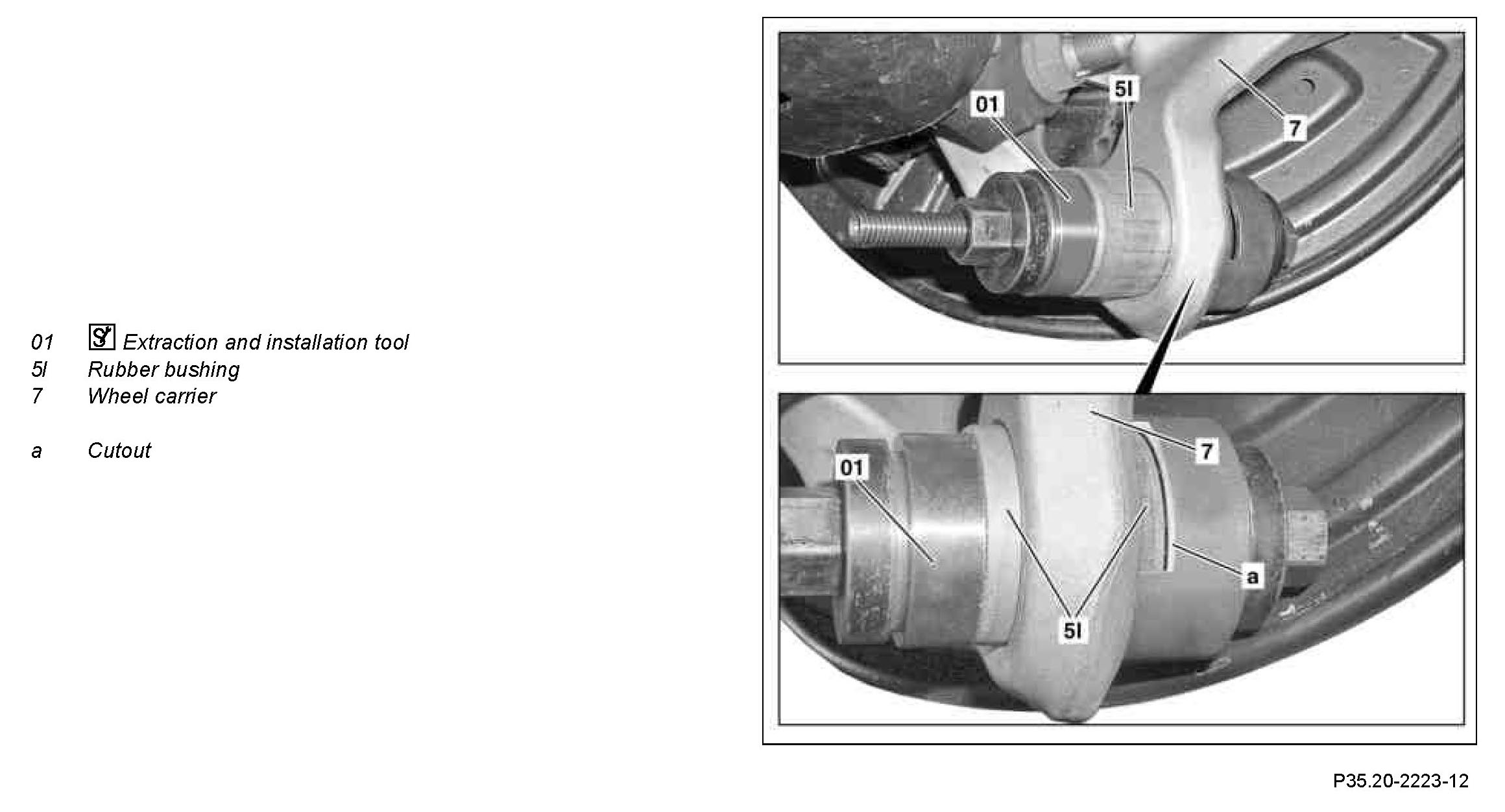

Component Identification:

Removing
1 Pull rubber mount (51) out of wheel carrier (7) using extraction and insertion tool (01).
2 Remove extraction and insertion tool (01) with rubber mount (51).

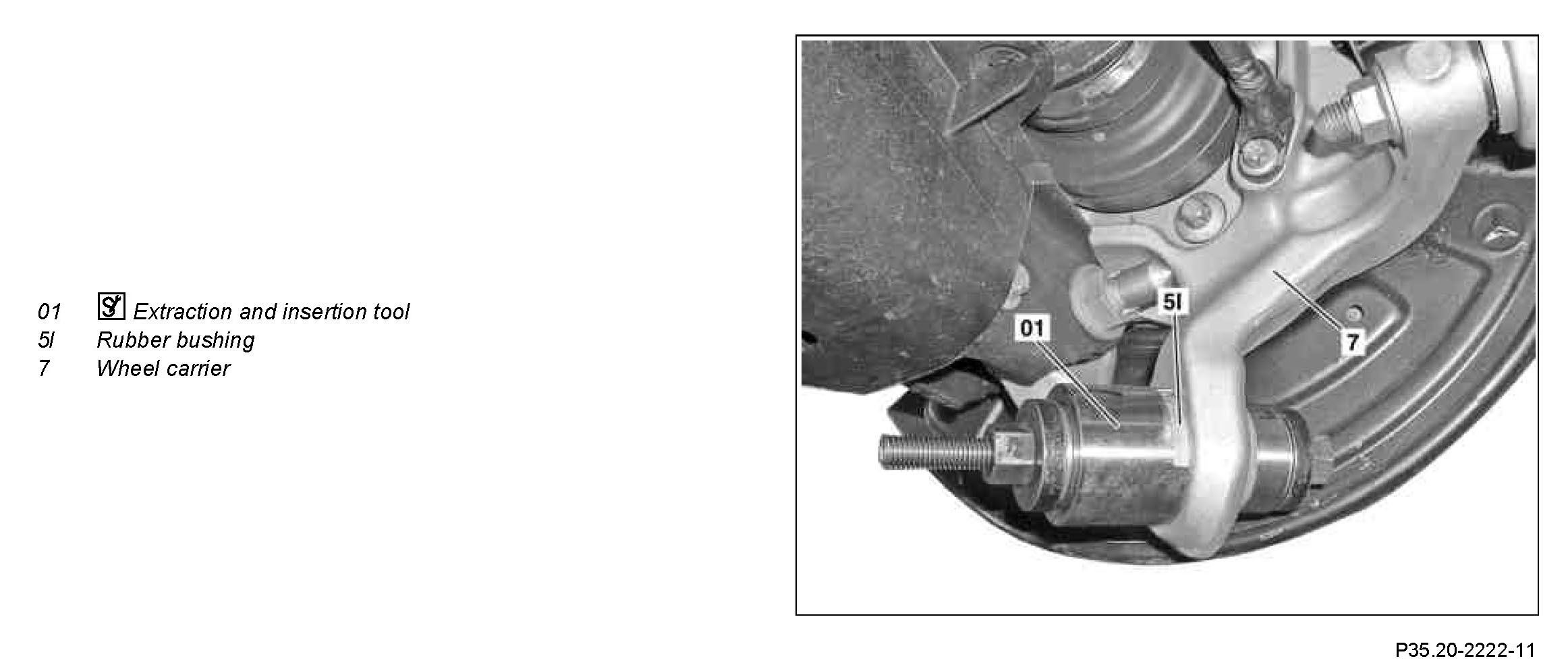

Component Identification:

Install
3 Attach extraction and insertion tool to wheel carrier with rubber mount (51) to wheel carrier (7).
4 Pull rubber mount (51) into wheel carrier (7) using extraction and insertion tool (01).
Pull in until it completely covers the cutout (a) in the extraction and insertion tool (01).
